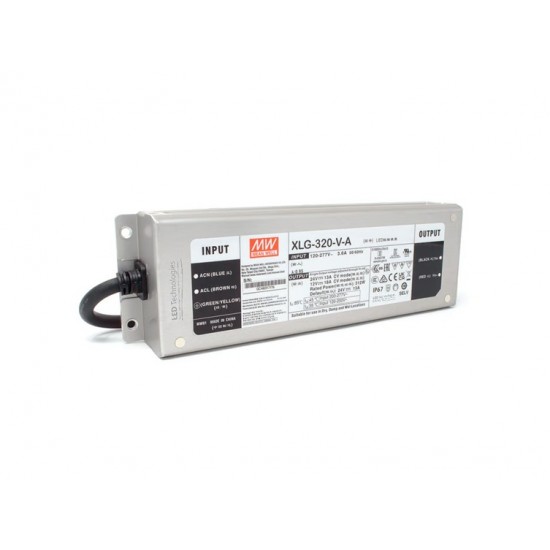

Mean Well XLG-320-V-A 24V 13A 312W Constant Voltage LED Driver AC DC Converter

Mean Well XLG-320-V-A 24V 13A 312W Constant Voltage LED Driver AC DC Converter
Mean Well
Mean Well XLG-320-V-A 24V 13A 312W Constant Voltage LED Driver AC DC Converter

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)
Based on 0 reviews. - Write a review
₹​5,499.00
₹​4,660.17 + 18% GST
All Inclusive, Shipping Calculated at Checkout
Assured Cashback of ₹ 47
B2B GST Credit Available
Price in reward points: 4660
Buy Now NOTIFY WHEN AVAILABLE
Plan to Buy Later ? Add to Wish List

Mean Well XLG-320-V-A 24V 13A 312W Constant Voltage LED Driver AC DC Converter

The Mean Well XLG-320-V-A 24V 13A 312W Constant Voltage LED Driver AC DC Converter is a high-performance industrial-grade LED power supply designed to deliver stable 24V DC output for demanding LED lighting and constant voltage applications. Engineered with high efficiency, rugged protection features, and an IP67-rated enclosure, this driver supports reliable operation in both indoor and outdoor environments. Its wide AC input range and fanless cooling design make it suitable for commercial lighting, architectural installations, signage, industrial automation, and LED strip systems requiring dependable long-term power delivery.

The XLG-320-V-A provides up to 312W output power at 24V DC and 13A, with support for operation across 100–305VAC input. It features built-in protections against short circuit, overload, overvoltage, and overheating while maintaining high conversion efficiency up to approximately 94.5%. The robust metal housing and IP67 protection enable use in harsh environments with resistance to dust and water exposure.


Datasheet


Features

  • Constant Voltage 24V DC output for stable LED power delivery
  • High output capacity of 13A / 312W for large LED loads
  • Wide universal input range 100–305VAC
  • IP67-rated enclosure for indoor and outdoor installations
  • High efficiency up to ~94% for reduced heat generation
  • Built-in Active PFC (Power Factor Correction)
  • Fanless passive cooling design for silent operation
  • Metal housing for industrial durability
  • Surge immunity up to 6kV / 4kV


Specifications

  • Model: Mean Well XLG-320-V-A
  • Type: AC-DC Constant Voltage LED Driver
  • Output Voltage: 24V DC (switchable to 12V on V-type models)
  • Output Current: 13A @ 24V
  • Rated Power: 312W
  • Input Voltage: 100–305VAC / 142–431VDC
  • Frequency Range: 47–63Hz
  • Efficiency: Up to ~94.5%
  • Ripple & Noise: 240mV p-p (max.)
  • IP Rating: IP67
  • Cooling Method: Passive / Natural Air Cooling
  • Operating Temperature: −40°C to +85°C
  • Housing Material: Metal
  • Dimensions: 246 × 77 × 39.5 mm
  • Certifications: UL8750, IEC/EN61347, IP67


Package Includes

  • 1x Mean Well XLG-320-V-A 24V 13A 312W Constant Voltage LED Driver AC DC Converter
