PS5268 2MP USB Camera Module, 120dB High Dynamic Range, USB2.0 Port, Rolling Shutter

The PS5268-2MP-USB-Camera-A is based on the PS5268 sensor, adopts a USB port for signal transmission, offering excellent compatibility. Its direct plug-and-play connection to a host device simplifies integration and deployment. The module supports a stable 30FPS frame rate, ensuring smooth and lag-free video playback. Featuring a high dynamic range of up to 120 dB along with outstanding image quality, it captures rich image details clearly in both bright daylight and low-light nighttime conditions.

The PS5268-2MP-USB camera module is also equipped with a water-resistant case, providing enhanced environmental adaptability, making it suitable for various applications requiring high-precision visual data, such as industrial inspection, robotic vision, and security surveillance, offering accurate and reliable visual data support.


User Manual / Datasheet / Example Codes Etc.


Features

  • 2MP Full HD Resolution (1920 × 1080) for clear and detailed imaging
  • PS5268 CMOS Sensor ensuring stable and high-quality image output
  • 120dB High Dynamic Range (HDR) for capturing clear details in both bright and low-light environments
  • Electronic Rolling Shutter suitable for general-purpose imaging applications
  • Up to 30FPS Frame Rate at 1080P for smooth video streaming
  • Excellent Low-Light Performance with high sensitivity sensor
  • MJPEG Compression Format Support for efficient video transmission
  • Wide Field of View (~112°) depending on lens configuration
  • USB 2.0 Interface for stable data transfer and easy integration
  • Plug & Play (UVC Compliant) – no additional drivers required
  • Compatible with Multiple OS: Windows, Linux, Android, macOS


Specifications

  • Pixels: 2MP
  • sensor chip: PS5268
  • Interface: USB 2.0
  • Camera
    • Sensor size: 1/2.4inch
    • Aperture (F): 2.0
    • Focal length (EFL): 3.35mm
    • Field of View (FOV): 112.6° (H) / 57.6° (V)
    • Focusing: Fixed-focus
    • Shutter: Rolling shutter
    • Format support: MJPG
    • Static image resolution: 1920 × 1080
  • Image
    • Video recording: MJPG
    • 30FPS 1920 × 1080
    • 30FPS 1280 × 960
    • 30FPS 1280 × 720
    • 30FPS 960 × 720
    • 30FPS 720 × 480
    • 30FPS 640 × 480
    • 20FPS 320 × 240
    • 30FPS 320 × 180
  • Operating Voltage: 5V ± 5%
  • Operating current: 90mA
  • Dimensions: 30.00 × 30.00 × 35.15 (mm)


Package Includes

  • PS5268-2MP-USB-Camera-A x1



2MP USB Camera Module

PS5268 sensor | USB 2.0 port | High Dynamic Range | water-resistant

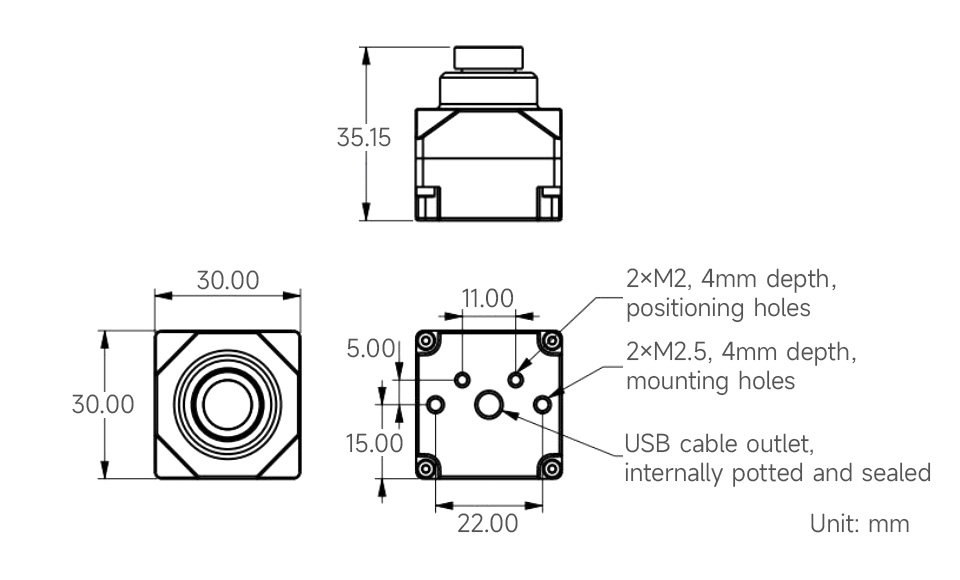

Dimensions
