The Q43 GNSS Helical RTK Module is a smart positioning antenna that integrates an RTK engine, helical antenna and geomagnetic sensor in one compact unit. The product supports multi-constellation, multi-frequency GNSS signal reception and dual-frequency RTK positioning, delivering stable and reliable high-precision positioning performance, making it an ideal choice for high-precision navigation applications such as intelligent robots, precision agriculture, mining, surveying and mapping, and autonomous driving.


User Manual / Datasheet / Example Codes Etc.


Features

  • Integrated design of RTK positioning module and helical antenna, compact size, easy installation, suitable for integrated applications
  • Built-in geomagnetic sensor, suitable for compass and electronic compass applications
  • Multi-constellation and multi-frequency, supports multi-constellation systems including GPS, BeiDou (BDS), GLONASS, Galileo, and QZSS
  • Supports simultaneous output of RTCM 3.3 and NMEA-0183 protocols, up to 10Hz data update rate, compatible with mainstream differential and positioning systems
  • Supports A-GNSS positioning enhancement system, significantly reducing time to first fix (TTFF)
  • Wide-voltage input, 3.3V ~ 16V operating voltage range, suitable for various power supply environments


Specifications

  • Signal Received
    • GPS: L1/L5
    • BDS: B1I/B1C/B2a/B2b
    • GLONASS: G1
    • GALILEO: E1/E5a/E5b
    • QZSS: L1/L5
  • ANTENNA CHARACTERISTICS
    • Characteristics Impedance: 50Ω
    • Polarization: RHCP (Right-Hand Circular Polarization)
    • Covering Range: 360°
    • Peak Gain: 2.5dB
    • Output VSWR: ≤2
    • Axial Ratio: ≤3dB
  • AMPLIFIER CHARACTERISTICS
    • Gain: 23dB
    • Noise Figure: 1.5dB
    • Output VSWR: ≤2
  • Positioning Module: LB1020
  • Geomagnetic Sensor: IST8310
  • Operation Voltage: 3.3V ~ 16V
  • Power Consumption: 150mW (Typical)
  • Sensitivity (GNSS)
    • Cold Start: -148dBm
    • Re-acquisition: -159dBm
    • Tracking: -165dBm
  • SYSTEM SPECIFICATIONS
    • RTK Accuracy (RMS)
    • Horizontal: 1cm + 1ppm
    • Vertical: 2cm + 1ppm
    • Time Accuracy (RMS) 20ns
    • Time To First Fix 26s (Typical)
    • Initialization Time 6s (Typical)
    • Initialize Reliability >99.9%
    • Data Update Rate 10Hz
    • Data Format RTCM 3.3; NMEA-0183
  • Communication interface: UART, I2C

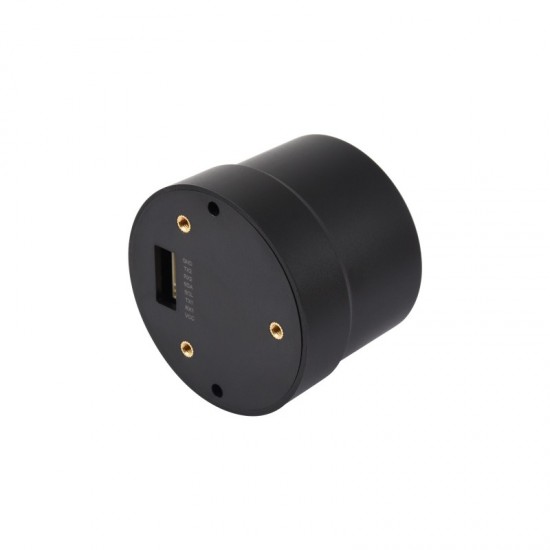

  • Connector: GH1.25 8PIN
  • Operating Temperature Range: -40℃ ~ +85℃
  • OTHER CHARACTERISTICS
    • Storage Temperature Range
    • Humidity ≤95%
    • Dimensions 37.00 × Φ47.04 (mm)

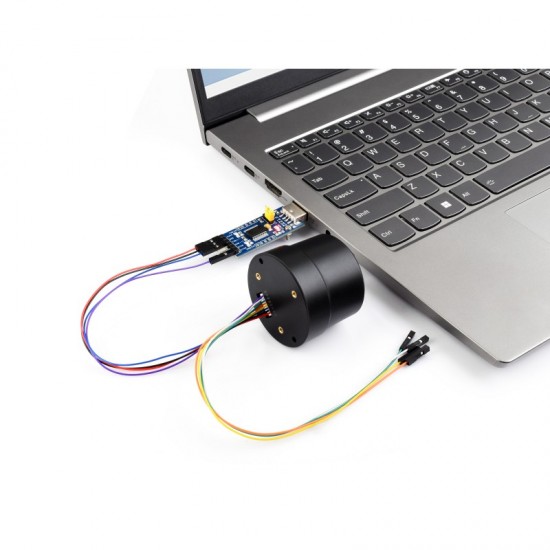

Package Includes

  • Q43 GNSS Helical RTK Module x1
  • GH1.25 to 2.54mm 8PIN cable x1

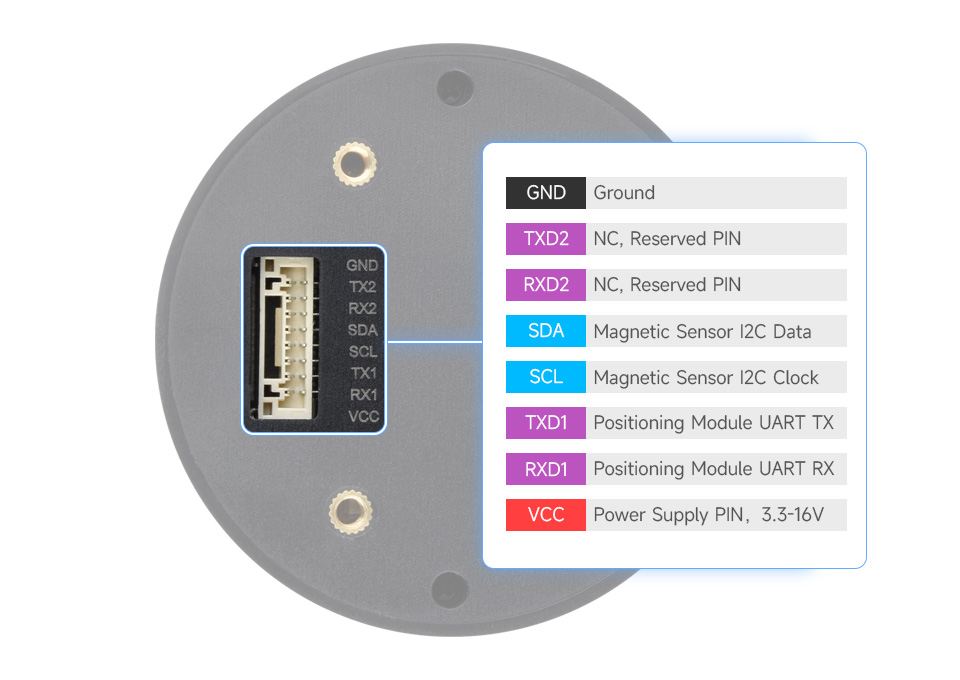

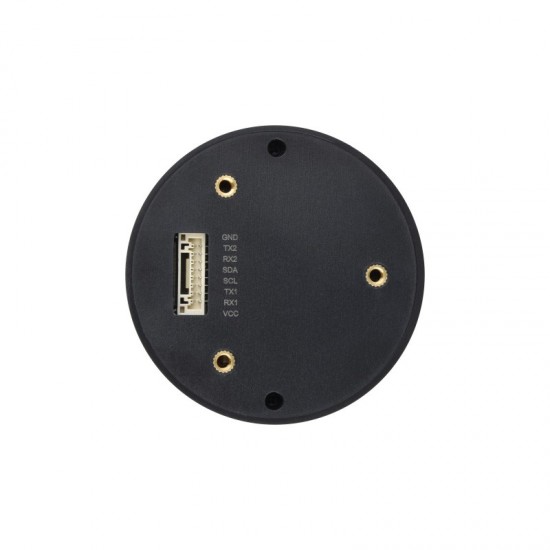

Pinout Definitions

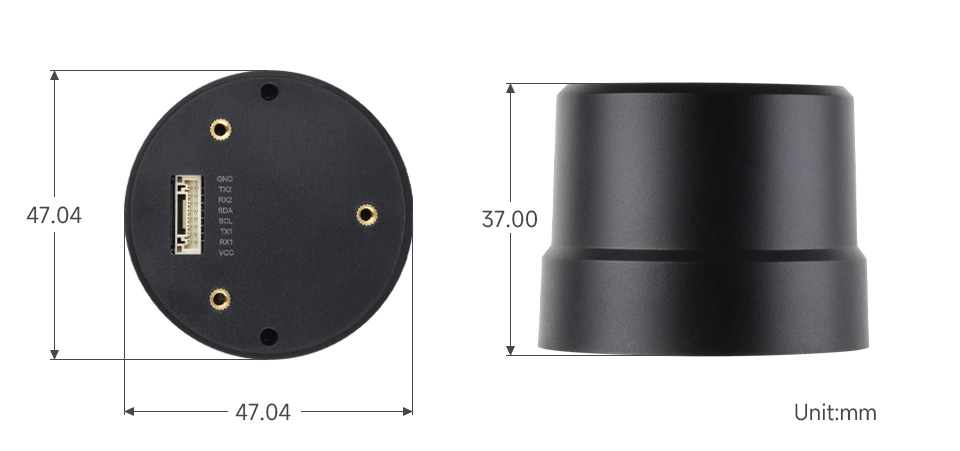

Dimensions
