Official Raspberry Pi M.2 HAT+ Compact
The Raspberry Pi M.2 HAT+ enables you to connect M.2 peripherals such as NVMe drives and AI accelerators to Raspberry Pi 5’s PCIe 2.0 interface, supporting fast (up to 500 MB/s) data transfer to and from NVMe drives and other PCIe accessories.
Raspberry Pi 5’s single-lane PCI Express 2.0 interface is exposed on a 16-pin, 0.5 mmpitch FPC connector; the M.2 HAT+ M Key, in both its standard and compact variants, is a mechanical adapter board that converts between this connector and a subset of the M.2 standard. It supports devices that have the M.2 M key edge connector, in the 2230 (standard and compact variants) and 2242 (standard variant only) form factors. It is capable of supplying up to 3A to connected M.2 devices.
The Raspberry Pi M.2 HAT+ conforms to the Raspberry Pi HAT+ specification and is autodetected by the latest Raspberry Pi software/firmware. The standard Raspberry Pi M.2 HAT+ is supplied with a 16 mm stacking header and threaded spacers, so it can be fitted to a Raspberry Pi 5 with the Raspberry Pi Active Cooler in place.

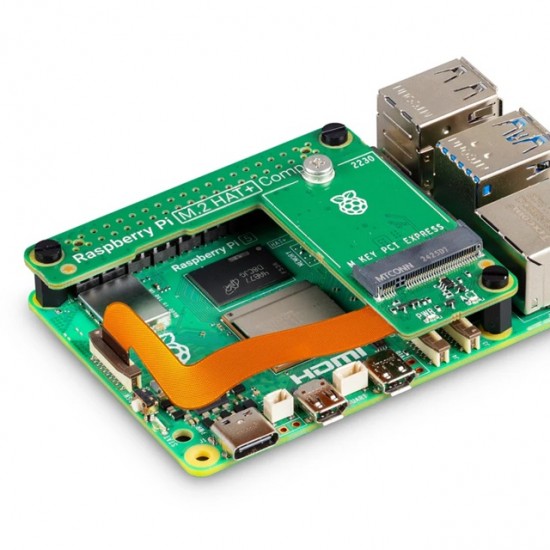

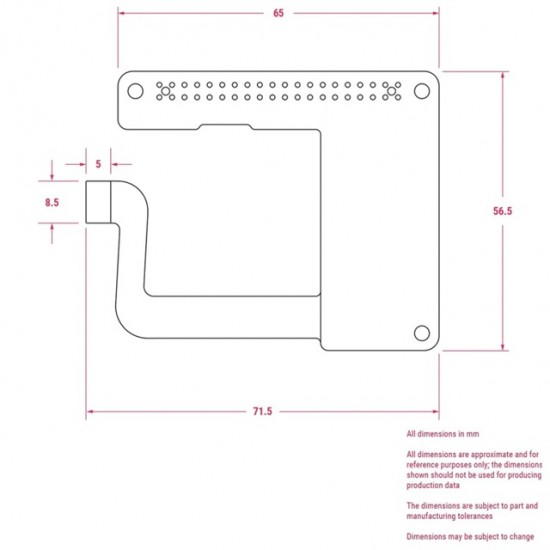

The Raspberry Pi M.2 HAT+ Compact is designed for use with the Raspberry Pi Case for Raspberry Pi 5. The Compact form factor enables you to connect M.2 M key peripherals with the 2230 form factor to Raspberry Pi 5, while allowing space for the case’s integrated cooling fan.
Features & Specs
- Designed for use with Raspberry Pi 5 and official Raspberry Pi 5 Case
- Compact design avoids interference with the official case fan and heatsink
- Not compatible with the Active cooler
- Supports 2230-size NVMe SSDs

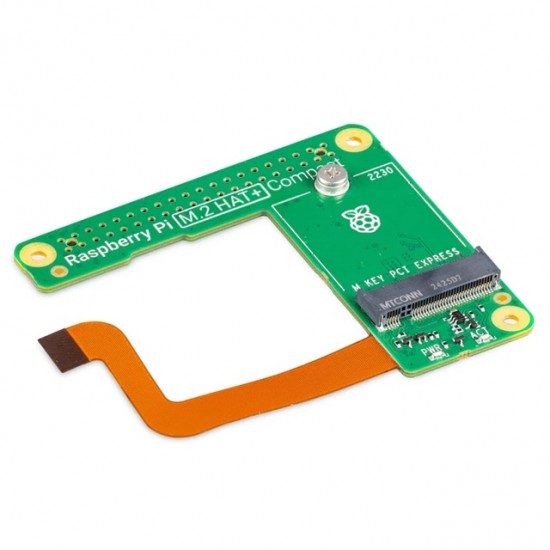

- Connects via fixed PCIe ribbon cable and GPIO header (no extra cables required)
- Supports M.2 M key edge connector devices
- Single-lane PCIe 2.0 interface (up to 500 MB/s transfer rate)
- Supplies up to 3A to a connected M.2 device
- Includes power and activity LEDs
- Conforms to the Raspberry Pi HAT+ specification
- Operating temperature: 0° to 50° (ambient)
Package Includes
- 1x Raspberry Pi M.2 HAT+ Compact
- 1x Pack of threaded spacers and screws
- 1x Knurled double-flanged screw to secure and support the M.2 peripheral
