Waveshare 4G Module Expansion Board Designed For Jetson Orin, Includes SIM7600G-H-M.2 4G Module, Supports 4G / 3G / 2G Communication And GNSS Positioning, Global Coverage

The Waveshare 4G Module Expansion Board is a powerful and versatile communication solution specifically designed for Jetson Orin series devices. Equipped with the SIM7600G-H-M.2 4G module, this expansion board enables reliable high-speed cellular connectivity along with GNSS positioning, making it ideal for IoT, edge computing, remote monitoring, and AI-driven applications.

Supporting multiple network standards including 4G LTE, 3G, and 2G, the module ensures seamless global connectivity across various regions. Its M.2 interface design provides stable integration and efficient performance when paired with Jetson Orin platforms.

The board also supports GNSS positioning systems such as GPS, GLONASS, and BeiDou, enabling accurate location tracking for applications like fleet management, asset tracking, and navigation systems.


User Manual / Datasheet / Example Codes Etc.


Features

  • Supports dial-up, phone call, SMS, TCP, UDP, MQTT, HTTP(S), FTP(S), and so on
  • GNSS positioning: GPS, Beidou, Glonass, Galileo, QZSS, LBS base station
  • USB 3.1 port (USB 2.0 compatible) for connecting to Jetson Orin, PC, or Raspberry Pi to enable high speed 4G network
  • Onboard standard M.2 B KEY slot and module selection switches, compatible with SIM8260X-M2 / SIM8262X-M2 / RM5XX / SIM7600 modules
  • 4 x SMA antenna connectors, easy to install the antennas
  • Reserved UART solder pads for convenient data transmission and other functions with certain modules
  • Onboard audio interface and audio decoding chip, enabling voice operations such as making calls on SIMXXX series modules
  • Onboard power switch, reset button, and LED indicator for convenient power control and status monitoring
  • Onboard high-efficiency power supply circuit, up to 3A output current

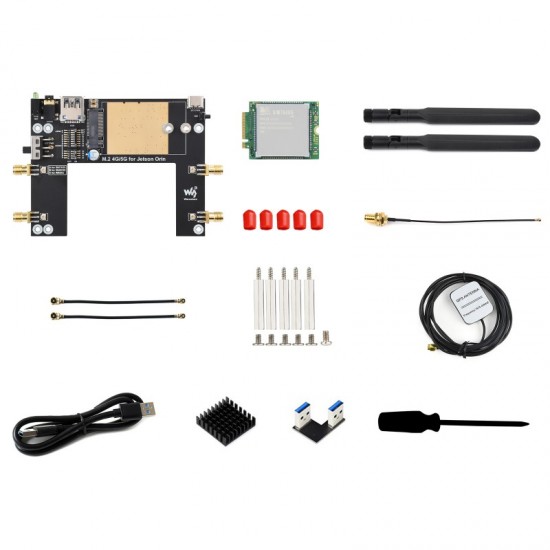

Package Includes

  • Jetson Orin M.2 4G / 5G expansion board
  • SIM7600G-H-M.2
  • 4G antenna
  • SMA protective cap (5PCS)
  • IPEX1 to SMA adapter cable ~10cm
  • IPEX1 to IPEX4 adapter cable ~5cm (2PCS)
  • Screws pack
  • GPS External Antenna (C)
  • Dual plug USB3.0 Type-A cable
  • Heatsink
  • USB 3.0 Adapter (C)
  • Screwdriver

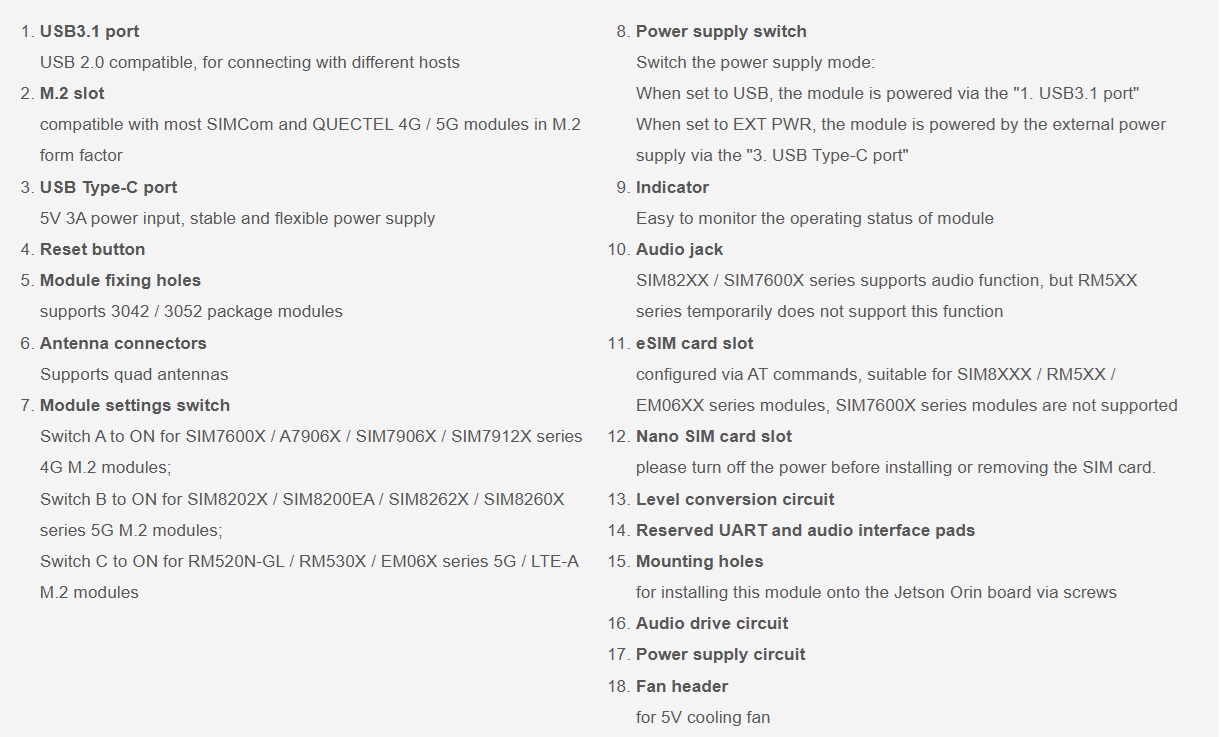

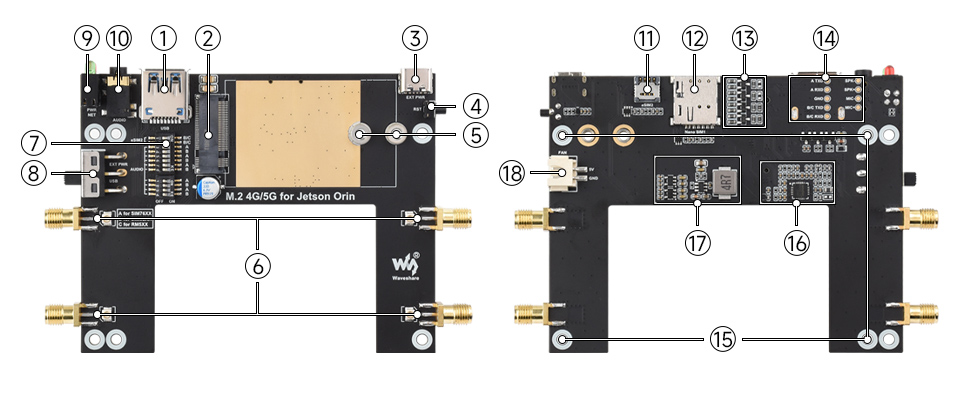

What's On Board

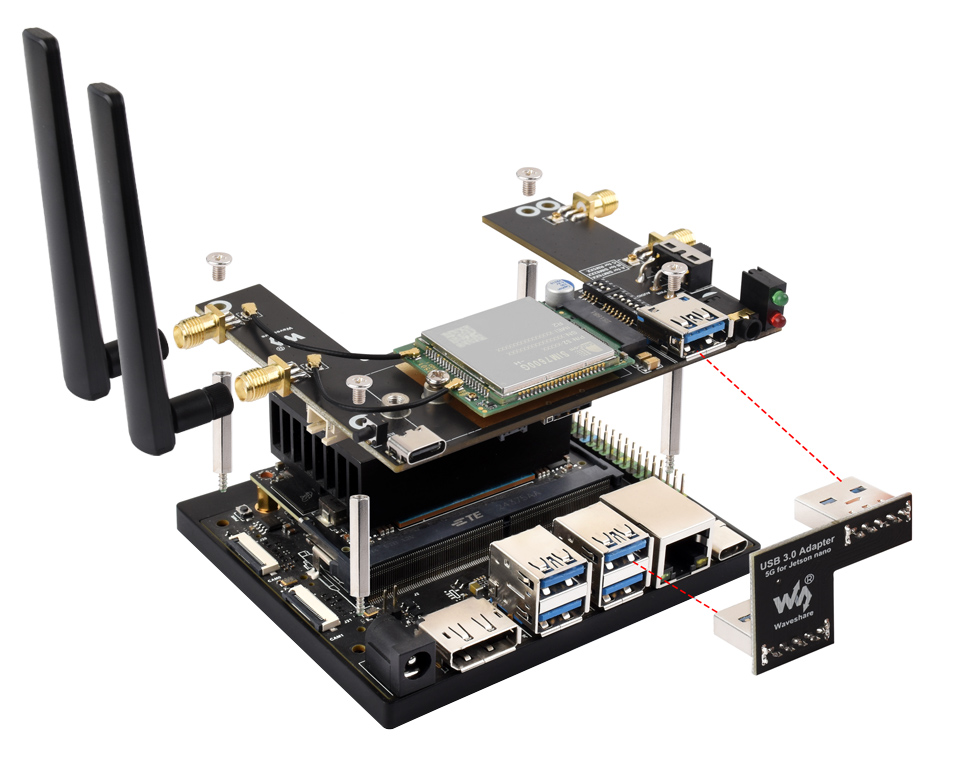

Installation Introduction

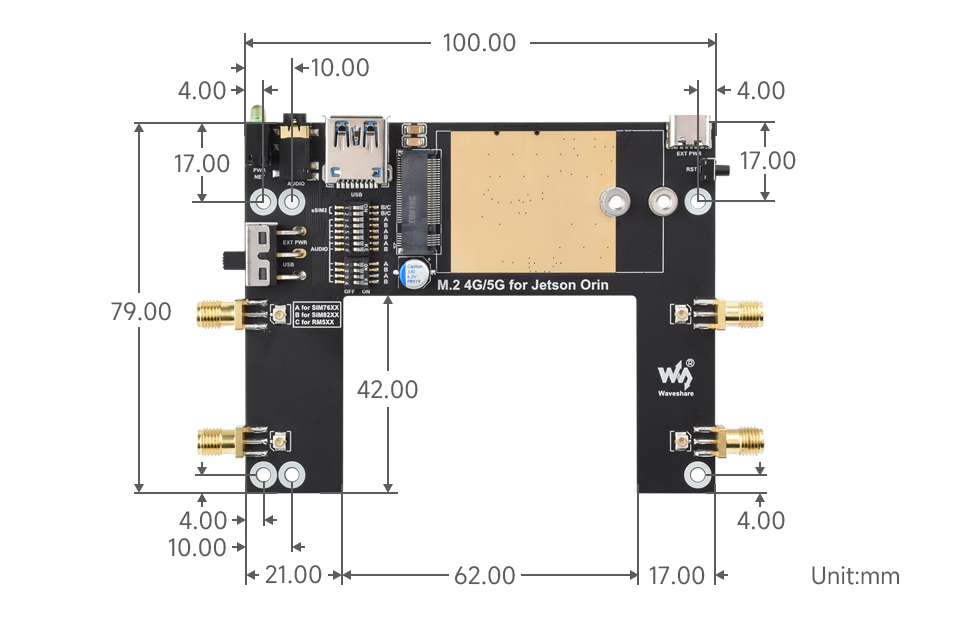

Dimensions
