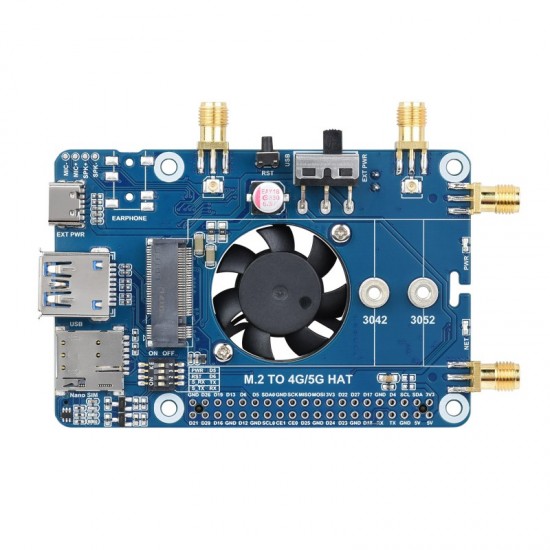

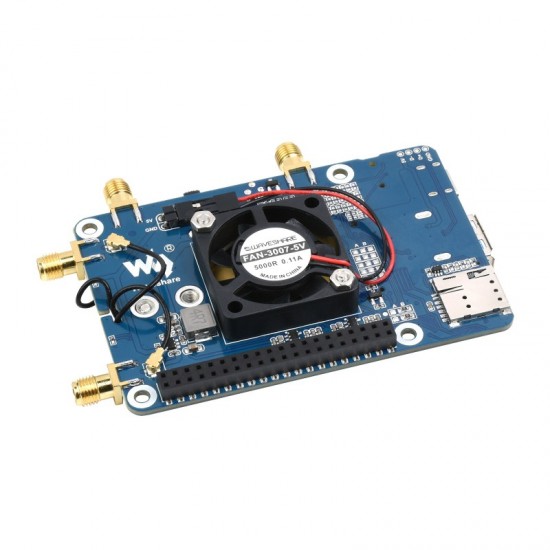

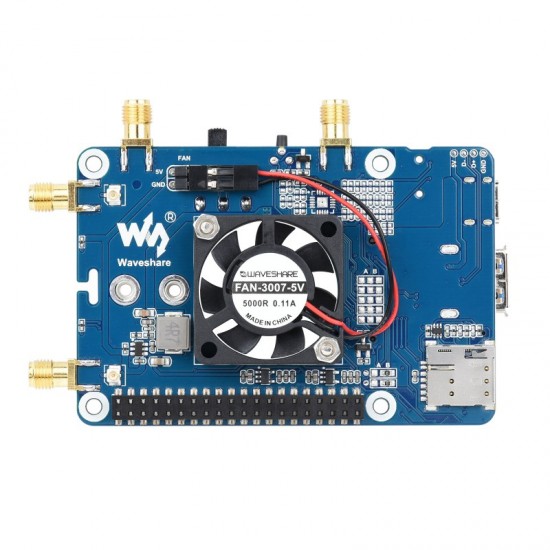

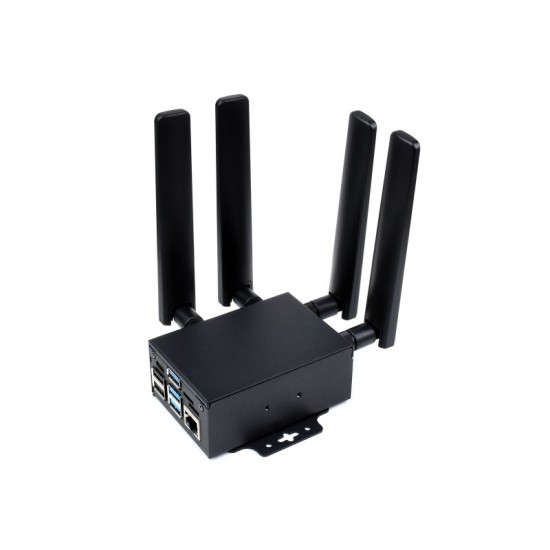

Waveshare SIM8262E-M2 5G HAT For Raspberry Pi, Quad Antennas 5G NSA, Multi-Band, 5G/4G/3G Compatible With Metal Enclosure
The Waveshare SIM8262E-M2 5G HAT for Raspberry Pi is a high-speed cellular communication expansion board designed to provide 5G network connectivity to Raspberry Pi and compatible embedded computing platforms. Featuring the SIM8262E-M2 5G modem, this HAT supports 5G NSA (Non-Standalone) networks and is compatible with 4G and 3G cellular networks, offering flexible connectivity across multiple cellular generations and frequency bands.
Equipped with four antenna interfaces, the board supports a multi-antenna configuration for cellular communication, helping provide reliable wireless connectivity when used with compatible antennas and supported network bands. Its M.2 modem design and Raspberry Pi HAT form factor make it suitable for integrating cellular connectivity into IoT devices, edge computing systems, industrial gateways, remote monitoring equipment, and other embedded applications.
User Manual / Datasheet / Example Codes Etc.
Features
- Based on Qualcomm platform, support 5G NSA and SA networking, support multi-mode & multi-band
- Multi-constellation dual-band positioning: GPS, Beidou, Glonass, Galileo, and QZSS
- Operating system support: Windows/Linux/Android
- USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 5G communication
- Standard M.2 B KEY slot, compatible with different 5G modules: SIM8202X-M2 / SIM8200EA-M2 / SIM8262X-M2 / RM5XX series, setting via DIP switches
- Onboard UART, PWR, and RST control pin, built-in voltage level translator, enabled via DIP switch, for use with hosts like Raspberry Pi or Arduino
- Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable amd flexible power supply
- Onboard power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the operating status
- 4x SMA to IPEX antenna connectors, with pre-soldered SMA terminals for connecting antennas
- 2x SIM card slot, dual card single standby, switchable via AT command
- Onboard audio jack and audio decoder, allows audio operation like making phone call
- High efficiency power supply circuit, up to 3A output current
Package Includes

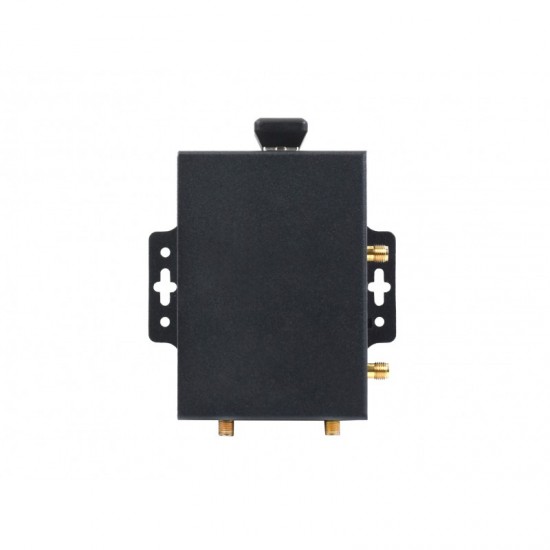

- Protection case kit x1
- M.2 TO 4G/5G HAT x1

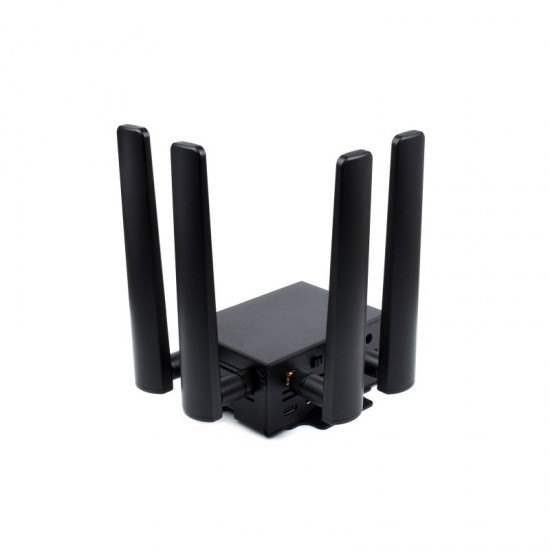

- Antenna 4pcs x1
- IPEX adapter cable 4pcs x1
- 2*20PIN pin header x1
- Passive GPS antenna x1
- Dual plug USB3.0 cable x1
- USB3.0 adapter x1
- USB2.0 adapter x1
- SMA protective cap 4pcs x1
- Screws pack x1

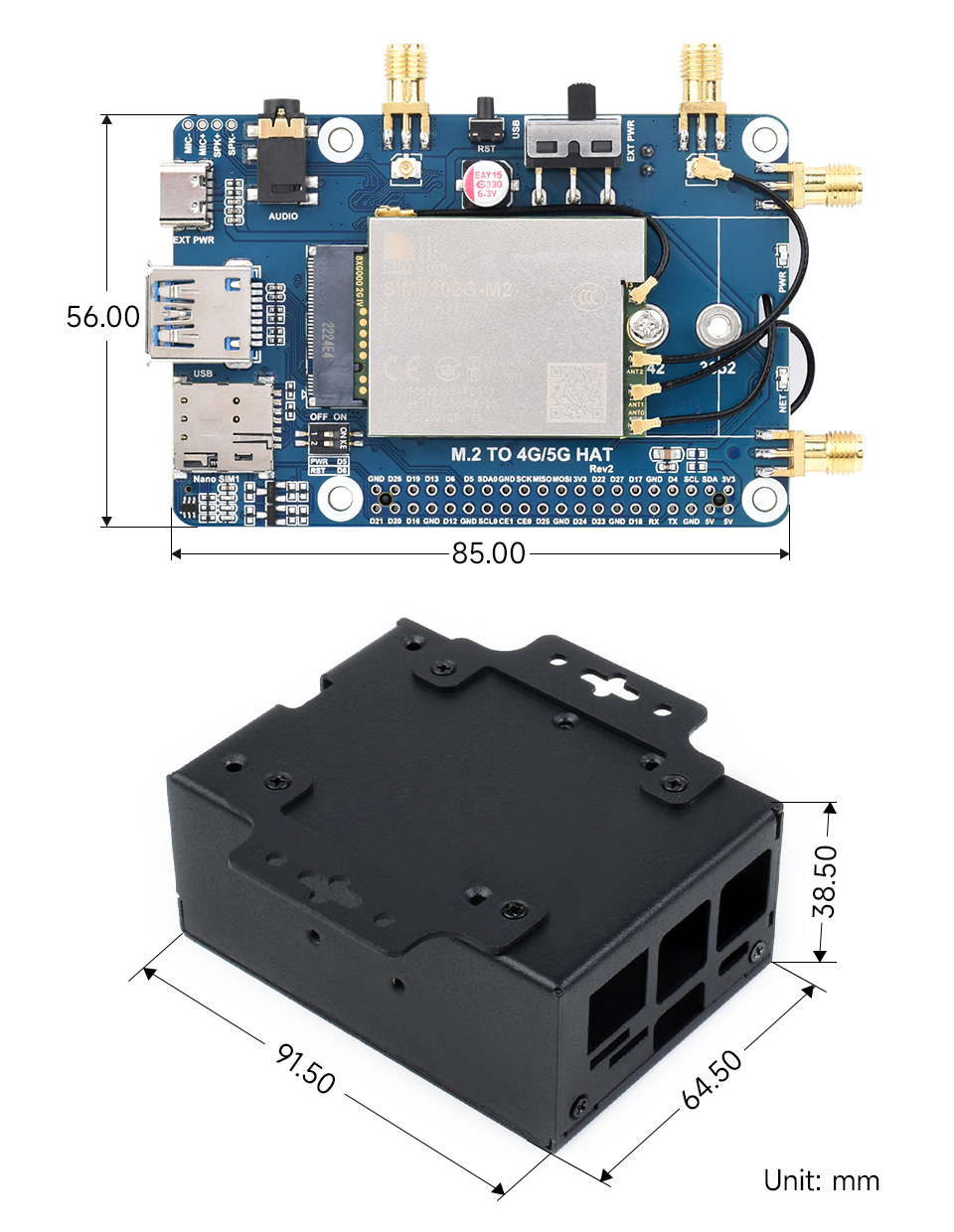

Dimensions
