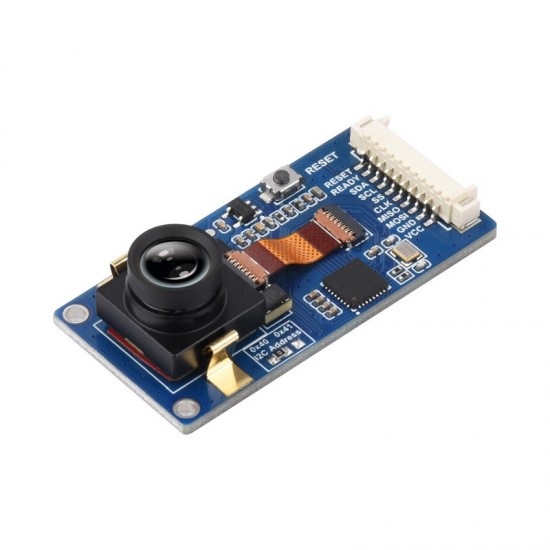

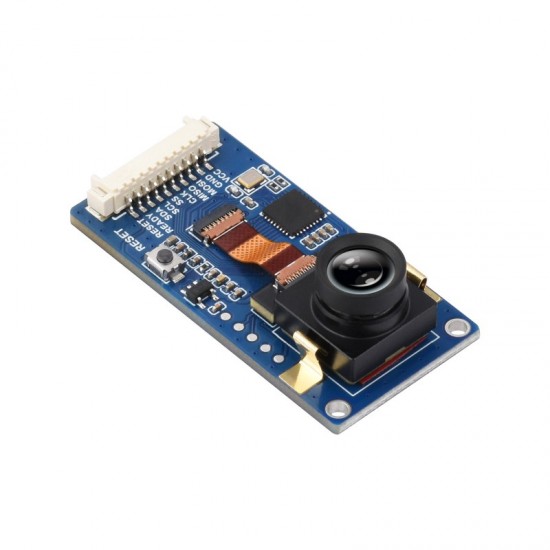

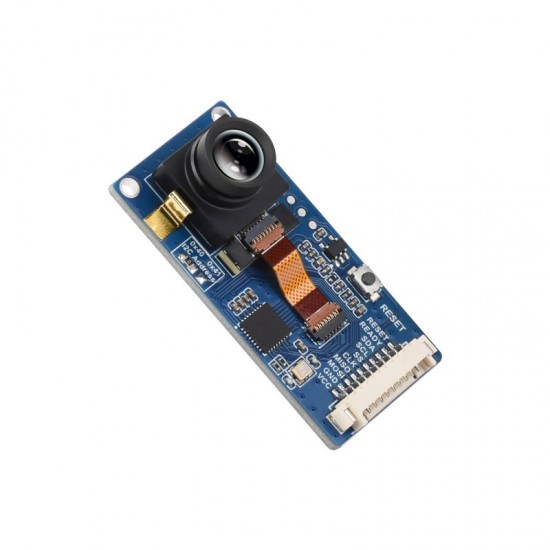

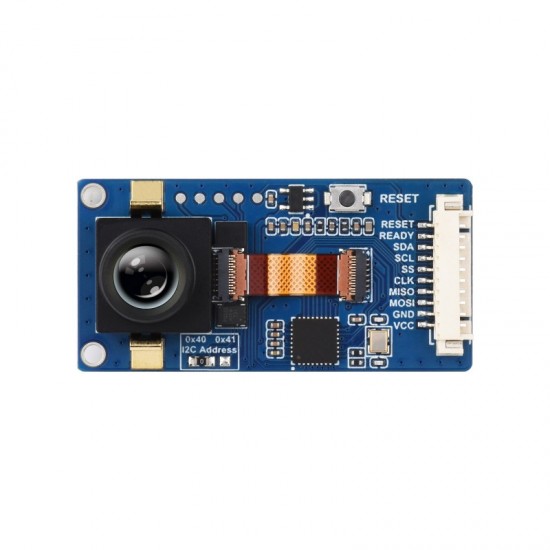

This is a long-wave IR thermal imaging camera module that adopts the hybrid technology of microbolometer and thermopile pixel, featuring 80 × 62 array pixels. It overcomes the limitations of traditional temperature measurement devices, such as single-point detection and light dependency. By capturing infrared radiation signals from objects, it enables the core capability of "visualizing temperature distribution" for devices in the fields of industry, consumer electronics, security, and healthcare, serving as the hardware foundation for intelligent temperature monitoring and risk early warning.

User Manual / Datasheet / Example Codes Etc.

Features

Adopts the hybrid technology of microbolometer and thermopile, 80 (H) × 62 (V) array pixels
Continuous operation and thermal imaging video stream due to shutterless design
Each pixel is calibrated before shipment to ensure uniformity and accuracy of temperature reading
Noise Equivalent Temperature Difference (NETD) 150mK RMS@1Hz refresh rate
Up to 25FPS (Max) thermal imaging video stream output
Provides lens options of 44° FOV
Comes with online resources and manuals (Python demo for Raspberry Pi, etc.)

Applications

Long-term non-contact temperature online monitoring
IR thermal imaging devices, IR thermometers
Smart home, intelligent building, intelligent lighting
Infant and elderly care
Fever detection
Industrial temperature control, security & safety, intrude/motion detection
Small Target Thermal Analysis, Heat Trend Analysis and Solutions

Specifications

Power supply: 3.3V / 5V
Operating current: 20mA@5V
wavelength range: 8μm ~ 14μm
Operating temperature: -20℃ ~ 85℃
Target temperature: -20℃ ~ 400℃
Refresh rate: 25 FPS (Max)
FOV: 44°
Standard version: 55°(D) × 44°(H) × 35°(V)
Wide angle version: 143°(D) × 90°(H) × 66°(V)
Noise Equivalent Temperature Difference: 150mK
Measuring Accuracy: ±1.5℃ (ambient temp. 10℃ ~ 70℃)
Dimensions: 45.00 × 22.00 (mm)

Package Includes

Thermal-44 Camera Module
MX1.25 10PIN to 2.54 cable ~200mm

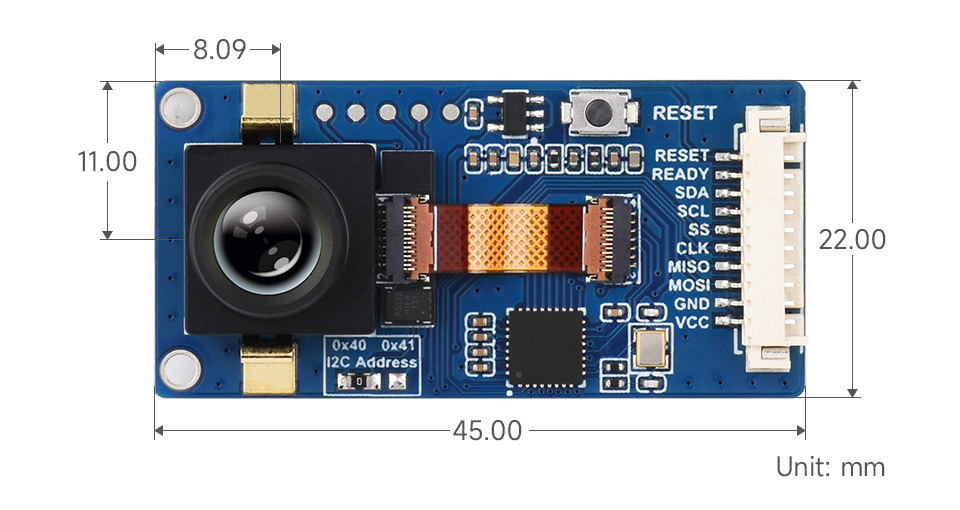

Dimensions
