Name: USB-C 3.1 Breakout Board 24 Pins Female Type C Connector PCB
Brand: 7Semi
SKU: 08015
Price: 99.00 INR
Availability: OutOfStock

USB-C 3.1 Breakout Board 24 Pins Female Type C Connector PCB

7Semi

USB-C 3.1 Breakout Board 24 Pins Female Type C Connector PCB

Based on 0 reviews. - Write a review

₹99.00

₹83.90 + 18% GST

All Inclusive, Shipping Calculated at Checkout

B2B GST Credit Available

Price in reward points: 83

Stock: 0 in Stock
SKU: 08015
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

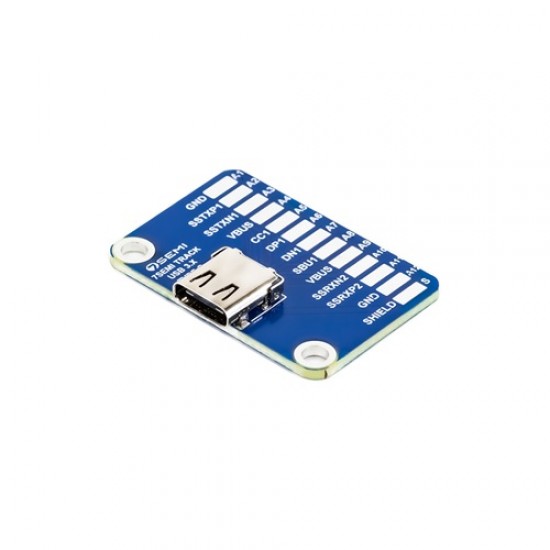

USB-C 3.1 Breakout Board 24 Pins Female Type C Connector PCB

Introducing the USB-C 3.1 Breakout Board by 7SEMI - the ultimate solution for achieving seamless connectivity with USB Type-C in your projects! This top-notch PCB comes equipped with a 24-pin female Type-C connector, ensuring a dependable and adaptable link for all your USB-C devices.

Harness the Potential of USB Type-C: The 7SEMI USB-C 3.1 Breakout Board is meticulously crafted to unleash the full capabilities of USB Type-C technology. Featuring a 24-pin breakout design, it simplifies the process of connecting and interfacing with USB-C devices, offering a multitude of possibilities for your projects.

Durable Design: Engineered to withstand heavy usage and repeated connections, the 7SEMI USB-C 3.1 Breakout Board boasts a durability rating of 10,000 cycles. Its robust construction ensures consistent performance, making it an excellent choice for professional and industrial applications.

Seamless Connectivity: With a mating force ranging from 5 to 20N, this breakout board guarantees a secure and reliable connection, eliminating worries about signal loss or interruptions. The well-designed board also provides easy access to all necessary pins, facilitating smooth integration into your circuitry.

Versatility at its Best: Compatible with a variety of USB-C devices, such as laptops, tablets, and smartphones, the 7SEMI USB-C 3.1 Breakout Board is compact and features convenient mounting holes. This makes it effortless to incorporate into your existing setups or custom projects, catering to DIY enthusiasts, engineers, and developers alike.

Elevate Your Connectivity Experience: Whether you're prototyping, designing a custom device, or upgrading an existing project, the 7SEMI USB-C 3.1 Breakout Board is the go-to choice for dependable and high-performance USB Type-C connectivity. Secure yours today and step into the future of USB-C technology!

Datasheet

Features

USB Type-C 3.1 female connector breakout board
All 24 USB-C pins broken out to PCB pads
Ideal for prototyping, testing, and custom USB-C projects
Supports USB 3.1 high-speed signal routing

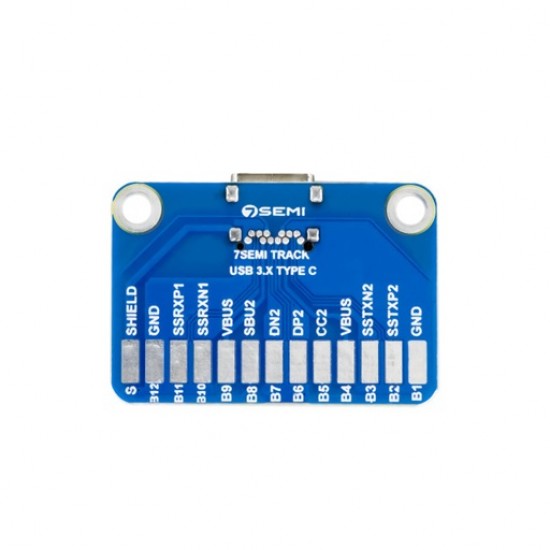

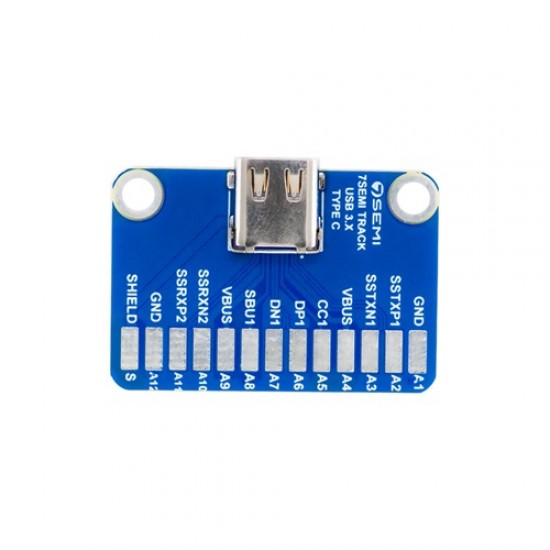

Clearly labeled pinout for easy connection

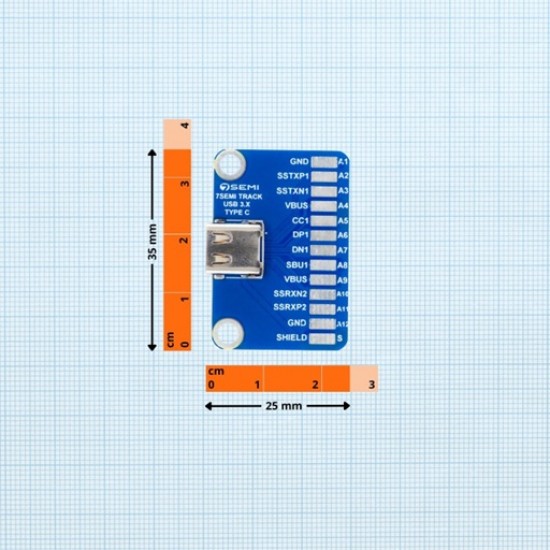

Compact PCB design for embedded applications
Suitable for power delivery, data communication, and development projects
Easy soldering access to all USB-C connector pins
Compatible with DIY electronics, development boards, and custom hardware
Durable PCB construction for reliable connections

Specifications

Category of product: USB C Connector breakout
Operating Temperature: –40°C to +70°C
Operating Voltage: 5V DC

Package Includes

1x USB-C 3.1 Breakout Board 24 Pins Female Type C Connector PCB
