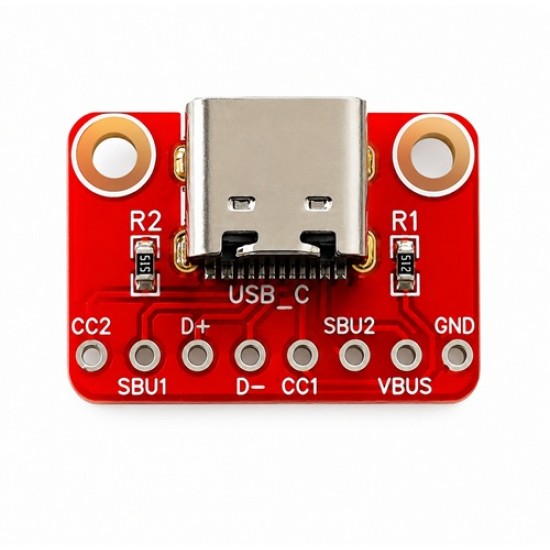

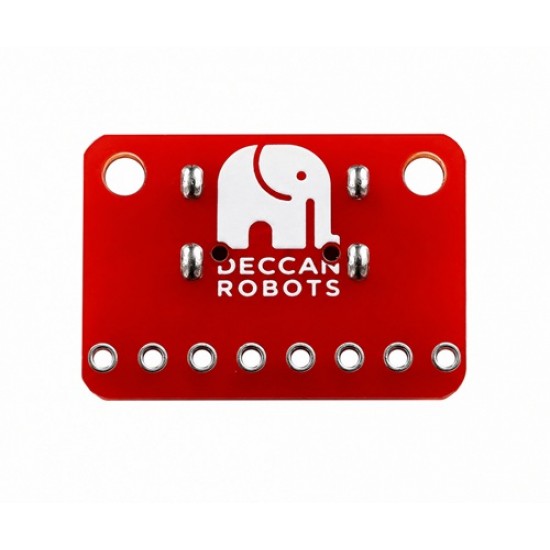

Deccan Robots USB 3.1 Type-C 16Pin Female PCB Breakout Board
The USB Type-C Female Breakout Board is a compact PCB module that makes it easy to integrate a USB-C connector into DIY electronics projects, battery packs, charging circuits, development boards, and embedded systems. All important USB-C pins are broken out into solder pads for easy wiring and prototyping.
The board includes 5.1kΩ CC resistors (marked "512") on the CC1 and CC2 lines, allowing compatible USB-C chargers to recognize the board as a standard 5V power sink.
This module is suitable for USB charging, power supply projects, USB communication, Arduino, Raspberry Pi, ESP32, STM32, and custom electronic devices.
Features
- USB Type-C Female Connector
- Compact PCB design
- Easy soldering through-hole breakout pads
- Supports USB 2.0 Data Transfer
- Supports 5V Power Input
- Built-in 5.1kΩ CC resistors
- Clearly labeled pin names
- High-quality FR4 PCB
- Ideal for DIY and repair work
Specifications
- Connector Type: USB Type-C Female
- PCB Color: Red
- USB Version: USB 2.0
- Input Voltage: 5V DC
- CC Resistors: 5.1kΩ (CC1 & CC2)
- Mounting Holes: 2
- Material: FR4 PCB
- Interface: Breakout Pins
Applications
- USB-C charging projects
- Arduino projects
- ESP32 development
- Raspberry Pi power connection
- DIY power banks
- Battery charging circuits
- Electronic repair
- Prototype development
- USB-powered devices
- Custom embedded systems
Package Includes
- 1x USB3.1 Type-C 16Pin Female PCB Breakout Board
