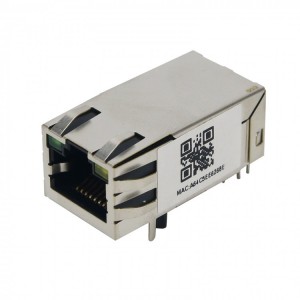

USR-K6 Serial TTL UART to Ethernet Converter Module (Super Port)
USR-K6 is a tiny size serial port to Ethernet module which can realize the bi-direct data transparent transmission between RJ45 port and TTL serial port. It can be applied to RS232 and RS485 by level conversion circuit, Which Supports low power consumption, only consume a little current in full speed work. Equipped with Cortex-M0 core, fast speed and high efficiency. Supports several functions to meet more need.
K6 is easy to operate and have strong compatibility. On the basis of adding new functions, it is compatible with the setting protocol of K5, which provide convenience for old users. At the same time, a setting protocol similar to K3 is added. For customers who adopt other series of products, it can be applied to K6 only by simple adjustment.
Features
- serial TTL UART to Ethernet
- Pin type.
- Power supply: DC 3-3.6V
- Compact, Small size, Light Weight
- Supports TCP server/client, UDP server/client
- it can also be applied in RS232/ RS485 by level shift circuit.
- Virtual COM
Specifications
Parameter | Value |
Input Voltage | DC3～3.6V |
Working Current | |
Net port | Rj45, 10/100mMbps |
Serial port | 600~460.8K(bps) |
Software Parameters | |
Network protocol | IP, IPV4, TCP/UDP, ARP, ICMP |
Access way to IP | Static IP, DHCP |
DDNS | Support |
User parameters | Software setting, webpage setting, AT command |
Single transparent transmission | TCP Server/TCP client/UDP Server/UDP Client |
Similar RFC2217 | Support |
httpsd client | support |
TCP server connection | Default 4 and maximum 16 |
Net buffer | Send:6Kbyte; receive:4Kbyte |
Serial port buffer | Receive: 2048byte |
Average transport delay | <10ms |
Set software | USR-VCOM, USR-Cloud, parameters setting software |
Package mechanism | 4 byte package time and 1024byte length |
Others | |
Certification | CE,FCC |
Size | 35.0x19.39x18.25 mm(L*W*H) |
Operating Temp. | -25～+75°C |
Storage temp | -45～+105°C |
operating humidity | 5%～95% RH |
Storage humidity | 5%～95% RH |
Package | Electrostatic bubble |
Function structure
Details of Embedded Ethernet Modules USR-K6
Five Work Modes
