New
USR IoT
₹3,299.15 + 18% GST
B2B GST Credit Available

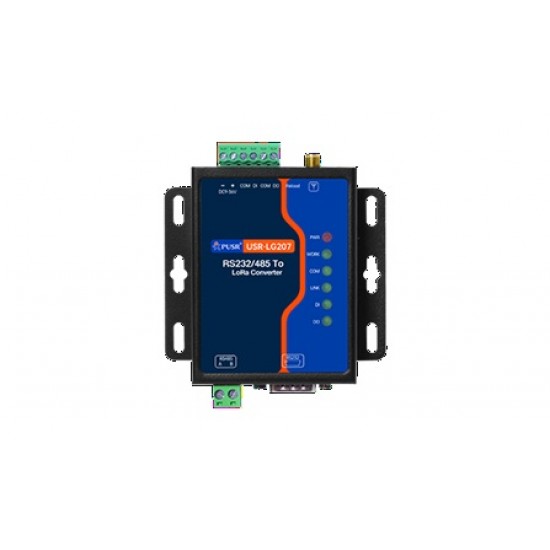

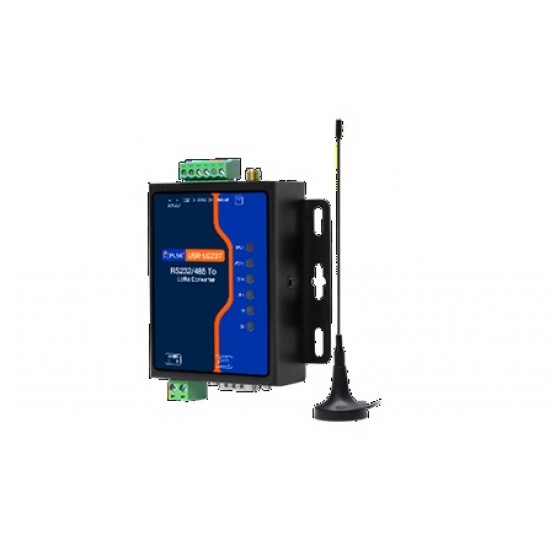

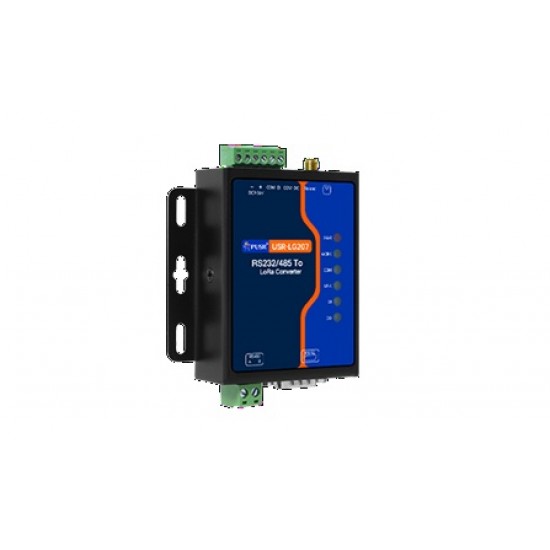

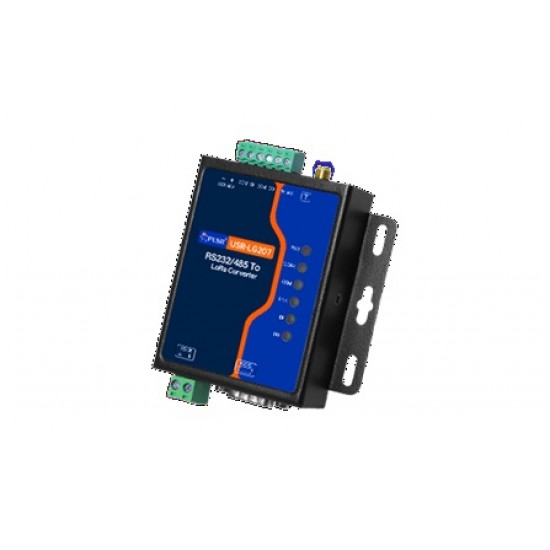

USR-LG207 SX1262 Based Industrial LoRa Modem - RS232/RS485 to LoRa Converter - 8KM Communication Distance - Antenna, Power Adapter & Serial Cable Included
This product qualifies for Free Surface Shipping !
All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)
₹3,893.00
All Inclusive, Shipping Calculated at Checkout
Assured Cashback of ₹ 33
B2B GST Credit Available
Price in reward points: 3299
- Stock: 0 in Stock
- SKU: 08226
- Delivery Time
- Bulk & B2B RFQ
USR-LG207 SX1262 Based Industrial LoRa Modem - RS232/RS485 to LoRa Converter - 8KM Communication Distance - Antenna, Power Adapter & Serial Cable Included
USR-LG207 is a wireless LoRa data transfer unit with RS232, RS485, and IO interfaces based on the SX1262 module. Adopts LoRa Modulate and Demodulate technology, with the advantages of anti-interference and long-distance communication (up to 8KM). Supports point-to-point, point-to-multipoint, point-to-gateway, etc. As it is compact and easy to install, USR-LG207 is suitable for wireless data transmission and device control of industry standard or non-standard user protocol.
Features
- High-Power Transmission: Wireless transmission up to 8KM
- Wireless IO: To achieve remote control
- Relay Networking: Wireless distance extension
- Remote Configuration: Wireless config and easy maintenance
- Modbus to LoRa: point-to-point, point-to-multipoint, point-to-gateway
- Signal Detection: Indicator displaying
- Industrial Design: EMC Level 3 | wide temp -40 ~ +85°C
Specifications
- Power Supply: DC: 9-36V, reverse polarity protection, surge protection
- Working Current
- Working mode: 125.6mA@12V,
- Idle mode: 45.3mA @12V
- Connector
- RS485: 2-PIN 5.08 terminal blocks, A/B signal
- RS232: DB9 male connector
- Baud rates: 1200 ~ 230400bps(Default 115200bps)
- Radio Chip: SX1262
- Frequency: 860-930MHz
- Tx Power: 17-30dBm, default value: 30dBm
- Rx Sensitivity: -148dBm @0.268Kbps
- Coverage distance: Max 8KM Test conditions: clear weather, open field of view, maximum power 30 ±0.5dBm, antenna gain 3dBi, height greater than 2m.
- Antenna Connector: Female SMA Connector
- Dimensions: 102.2 x 85 x 22mm(L x W x H, terminal blocks are not included)
- Operating temperature: -40℃～ +85℃
- Storage temperature: -40℃～+125℃
- Operating humidity: 10% ~ 90% RH, non-condensing
- Storage humidity: 5% ~ 90% RH, non-condensing
- Communication: Point-to-point, point-to-multipoint, point to gateway
- Indicator: PWR, WORK, COM, LINK, DI, DO
Package Includes
- 1x USR-LG207 SX1262 Based Industrial LoRa Modem - RS232/RS485 to LoRa Converter - 8KM Communication Distance - Antenna, Power Adapter & Serial Cable Included
