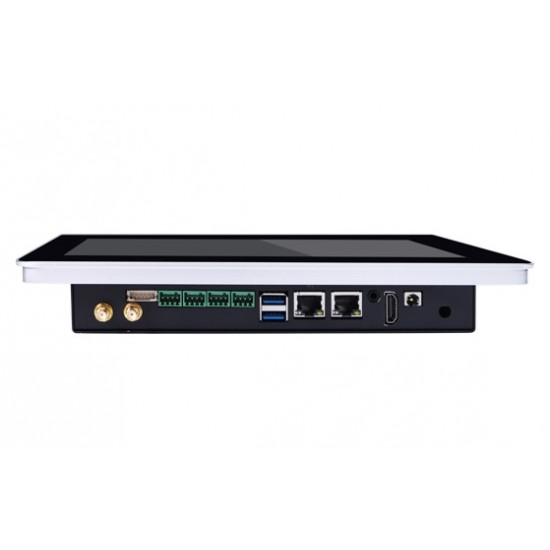

USR-SH800 10.1inch SMART HMI LCD - Based On RK3568 - 4GB Ram 32eMMC - 800x1280 Capacitive Touch IOT Integrated LCD Display - Linux & Ubuntu Supported
The USR-SH800 is a high-performance IoT integrated screen with significant advantages. It features an excellent core configuration, equipped with an RK3568 chip, a 4-core 64-bit ARMCPUwitha2.0G main frequency for smooth operation. It integrates WukongEdge functions, enablingeasydataacquisition, calculation, and reporting through simple configuration, and supports local display. Withanintegrated 1.0 TOPS NPU, it supports various AI development tools and interfaces.
Running on Linux Ubuntu 20.04, the USR-SH800 offers a user-friendly desktop for development. Itsrich hardware interfaces, including multi-channel serial ports, USB3.0, and HDMI, alongwithcompletedrivers, suit diverse scenarios. It supports flexible rail and lug installations for quick deployment. Overall,the USR-SH800 excels in performance, functionality, system, hardware, and installation, makingitatopchoice for IoT applications.
Resource
Features
- RK3568,4 -core64-bit CPU, 2GHz frequency, ultra-high performance, fast operation;

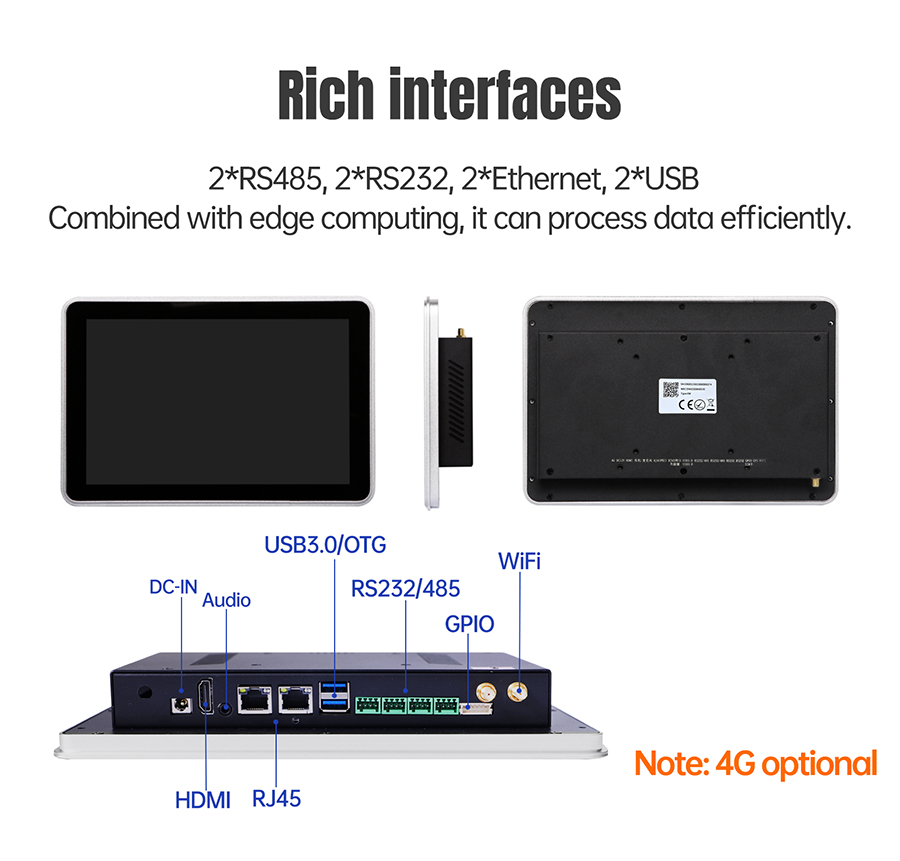

- Multi-serial port, 2 RS485, 2 RS23 interface;

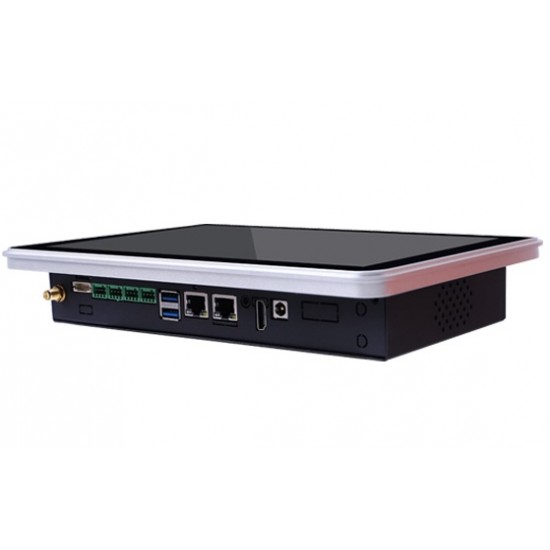

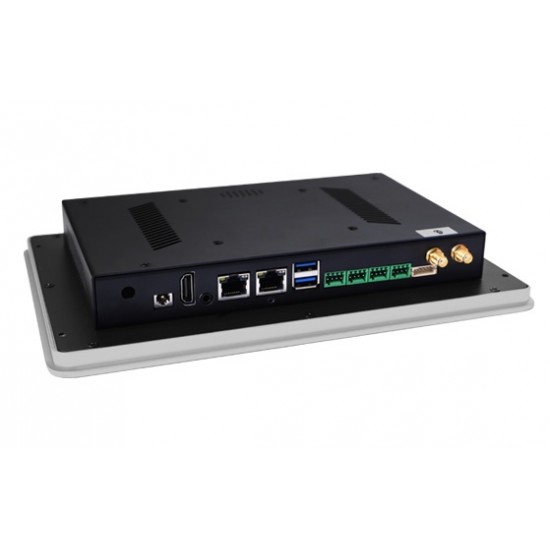

- Rich interface, HDMI output, two USB 3.0 interface;

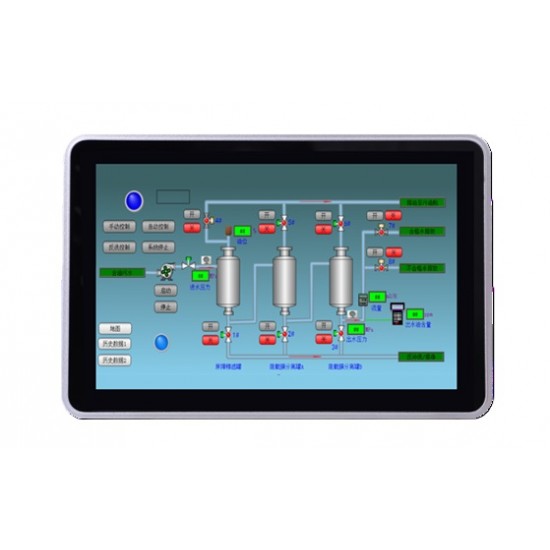

- 10.1 inch touch screen, the picture display is clearer;
- Standard Linux Ubuntu system, desktop operation is more convenient.
- Embedded Node-red graphical design simplifies and speeds up development. It canloadmoreprotocol libraries for rapid programming. Built-in WukongEdge edge application service makes it easier and faster to use.
- With powerful edge gateway functions, it supports edge acquisition, calculation, groupreporting, 2000 real - point collection, and point expansion.
- Supports multi - point linkage control, enabling SMS alarms, platform alarms, point - basedcontrol,andDO control.
- It supports a wide range of acquisition protocols, including the standard Modbus, variousmainstreamPLC protocols, and multiple industry - specific protocols.
- Protocol conversion support: Modbus, OPC UA, power protocols, building protocols, and more.
Specifications
- Processor CPU: Rockchip RK3568 ARM quad-core 64-bit processor,clocked up to 2.0GHz
- Graphics processor GPU: ARM G52 2EE GPU Supports,OpenGLES1.1/2.0/3.2,OpenCL2.0,Vulkan1.1, embedded high-performance2D acceleration hardware
- Operating system: Linux Ubuntu 20.04
- MemoryDDR: DDR4 4GB
- Storage: eMMC32GB

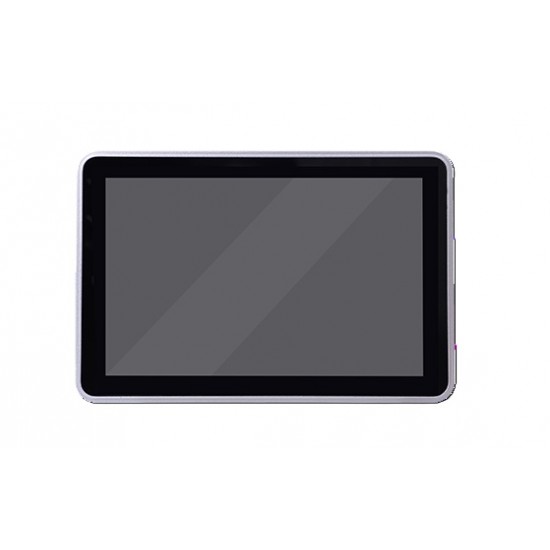

- Touch screen: 10.1 inch/800*1280 resolution/capacitive
- SIM: Nano SIM card holder for cellular networking
- Display interface: 1* HDMI OUT2.0；Support 4K60fps output
- Operating temperature: 0 -50°C
- Storage temperature: -20 - 80 °C
- Operating humidity: 10%-80%
- Size: 160mm*85mm*28mm
