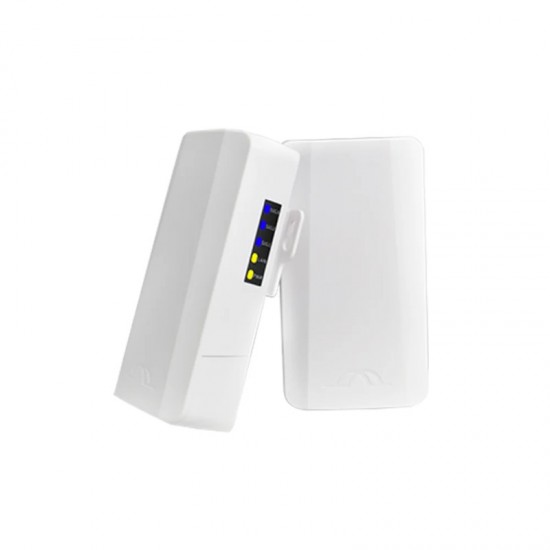

USR-ST508E 5.8GHz Tiny-Size Wireless Bridge

USR-ST508E 5.8GHz Tiny-Size Wireless Bridge

USR USR-ST508 is based on the Qualcomm solution, with the high output power and high  sensitivity that come from the high-quality hardware and equipped with the intelligent dynamic polling protocol  iPoll 3 which is based on TDMA technology.

The products have excellent anti-interference ability, even in high-density transmission scenarios with more  than 64 stations, which can guarantee the stable transmission and higher throughput. Through iPoll 3, our  products support the advanced wireless traffic optimization function, QoS priority supports DSCP mode under  802.1p and supports 4 priority queues, providing the most complete support for multiple services.

The product design meets IP64 to IP66 waterproof grades and industrial standards. It provides 2kv surge  protection which can ensure the device work well in complex electrical environments. Our bridge products are  widely used in various network communications and video surveillance scenarios such as agriculture, forestry,  industry, transportation, docks, tower cranes and elevator monitoring.

Datasheet

Features

• IP64 or IP66 waterproof supported.
• Ultra-high output power and receive sensitivity.
• Ultra-wide available spectrum(4.9Ghz~6Ghz) and more flexible bandwidth(5/10/20/40Mhz).
• Smart station polling, smart auto-channel, adaptive auto modulation, automatic transmit power control  (ATPC) supported.
• Supports point-to-point and point-to-multipoint (Up to 64 points).
• The max coverage distance is up to 3KM.
• QoS (L2/L3 or DSCP/COS) - supporting different priority traffic types.
• Professional and responsive HTML 5 graphical user interface.
• Built-in rich and practical toolset (Site survey, Spectrum analyzer, Link test, Antenna alignment, Ping  Traceroute).
• Supports client isolation.
• Supports bridge, routing and repeater mode.
• Supports IPv6, scheduled reboot.

Specifications

• Description: Compact size 5Ghz wireless  bridge
• Input voltage: 12 - 24 VDC passive PoE
• Power adapter: 100 – 240 VAC
• Max power consumption: 4.5W
• Protocol: 802.11a/n, iPoll 3
• Output Power: Up to 29 dBm (country dependent)
• Receive sensitivity: Varying between -97 and -75 dBm (modulation dependent)
• Frequency: 4.9Ghz ~ 6Ghz (country dependent)
• Channel bandwidth: 5/10/20/40Mhz
• MIMO: 2*2
• Modulation schemes: 802.11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)
• Max rate: 300Mbps
• Error correction: FEC, Selective ARQ
• Antenna: Built-in, 8dBi
• Point to point
• Recommended: 1KM: Max: 2KM
• Point to multiple  points(same model) : Recommended: 0.5KM  Max: 1KM
• Ethernet : 1*RJ45, 10/100M(PoE in)
• Wireless operating modes: Access point (auto WDS), access point (iPoll 3), station (WDS, iPoll 3), station (ARP NAT)
• Wireless techniques: Smart station polling, smart auto-channel, adaptive auto modulation, automatic  transmit power control (ATPC)
• Wireless security: WPA/WPA2 personal, WPA/WPA2 enterprise, WACL, user isolation
• Wireless SoS: 4 queues prioritization on iPoll 3
• Network operating modes: Bridge, router IPv4, router IPv6
• Network techniques: Routing with and without NAT, VLAN
• WAN protocols: Static IP, DHCP client, PPPoE client
• Service: DHCP server, SNMP, NTP client, router advertisement daemon, ping watchdog
• Management: HTTP(S) GUI, SSH, SNMP read, Telnet
• System monitoring: SNMP v1/2c/3 server, Syslogs, system alerts via e-mail and SNMP trap
• Wireless tools: Site survey, link test, antenna alignment
• Dimension: 141*77.5*53mm(L*W*H)
• Weight: 300g
• Installation: Pole Mounting, wall mounting
• Operating Temperature: -40°C ~ +70°C
• Operating Humidity: 0 ~ 90 %(non-condensing)

Package Includes

• 1x USR-ST508E 5.8GHz Tiny-Size Wireless Bridge
