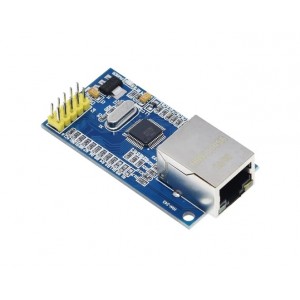

W5500 Ethernet Converter Module - TCP/IP Protocol - SPI Interface
The W5500 Ethernet Converter Module is a highly integrated solution that enables seamless Ethernet connectivity for embedded systems. It features a hardwired TCP/IP protocol stack, supporting key networking protocols like TCP, UDP, ICMP, IPv4, ARP, IGMP, and PPPoE. The module communicates via an SPI interface, making it easy to integrate with various microcontrollers, including Arduino and STM32.
Features & Specs
- 80MHz high-speed SPI interface
- Built-in hardware TCPIP protocol stack, users hardly need to master complex network protocol knowledge
- Support up to 8 Socket connections
- Support TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocols
- Integrated data link layer, physical layer
- Support power-down wake-up
- Support high-speed serial peripheral interface(SPI mode 0~3)
- Internal 32K bytes transceiver buffer
- Embedded 10BaseT/100BaseTX Ethernet physical layer (PHY)
- Support auto-negotiation (10/100-Based full duplex/half duplex)
- Does not support IP fragmentation
- 3.3V working voltage, I/O signal port 5V withstand voltage
- LED status display(full duplex/half duplex, network connection, network speed, activity status)
- Ultra-small pin package, easy for embedded applications
- Provide application routines for C
- Power supply mode: 3.3V external power supply, current should be greater than 200mA
- Control interface form: 3.3V TTL level, _SPI interface, 2*single row pin
- Dimensions: 28.5x23x24 mm
