Waveshare 0.85inch Mechanical LCD ScreenKey, IPS Panel, 128 × 128 Resolution, 65K Color, SPI Communication Interface - Black

The Waveshare 0.85-inch Mechanical LCD ScreenKey is a compact IPS display module that combines a vibrant 128 × 128 pixel LCD with a mechanical key switch, making it ideal for programmable macro keys, custom keyboards, smart control panels, IoT devices, and embedded user interfaces. Featuring an ST7735 display driver and 4-wire SPI communication, it provides smooth integration with popular development platforms including ESP32, Raspberry Pi, RP2040, Arduino, and STM32. The durable 2.5D tempered glass panel offers excellent clarity and scratch resistance, while the tactile mechanical switch is rated for up to 50 million key presses, ensuring reliable long-term operation. Its compact size and low power requirements make it an excellent choice for DIY electronics, automation projects, and custom human-machine interface (HMI) applications.

User Manual / Datasheet / Example Codes Etc.

Features

Built-in ST7735 driver chip
0.85inch IPS display, 128 × 128 resolution, 65K color
Supports SPI communication interfaces for easy embedded development, effectively saving the IO resources
2.5D tempered glass panel with excellent light transmission, scratch-resistant and durable, with rounded edges for a smooth, comfortable feel
Mechanical switch design (optional) with better tactile experience, effortlessly handling frequent operations
Supports platform development such as Raspberry Pi, Arduino, ESP32, RP2040, STM32, etc., and provides rich online resources and demos

Specifications

Operating voltage: 3.3V
Display color: 65K
DISPLAY PANEL: IPS
Display Interface: 4-wire SPI
Resolution: 128 × 128 pixels
Display size: 15.21 × 15.21 (mm)
PIXEL SIZE: 118.8 × 118.8 (μm)
Control IC: ST7735

Package Includes

0.85inch ScreenKey Module B host

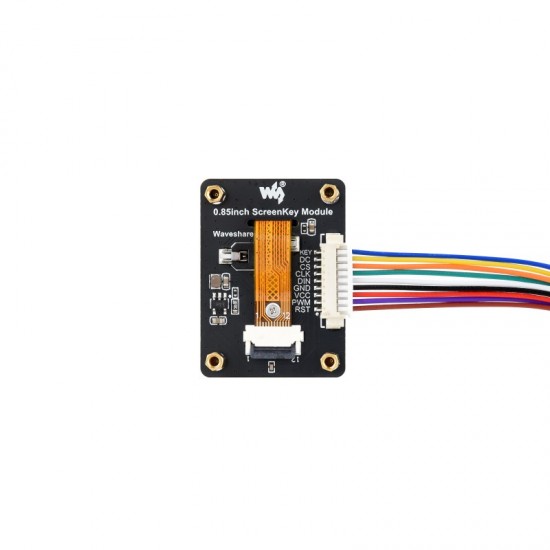

MX1.25 9PIN 200mm cable

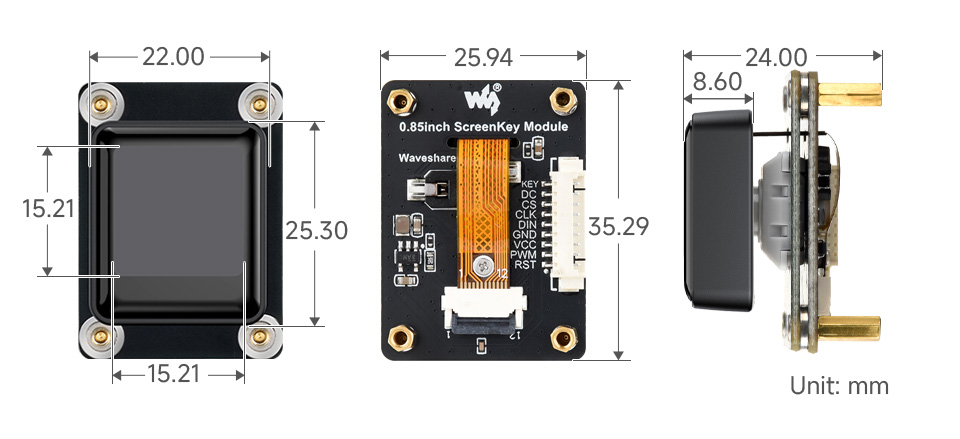

Dimensions
