Waveshare 1.85inch Touch LCD Display Module, 360 × 360 Resolution, 262K Color, QSPI And I2C Communication, Built-in ST77916 Display Driver Chip And CST816S Touch Control Chip

The Waveshare 1.85-inch Touch LCD Display Module is a compact, high-performance IPS display designed for embedded systems, IoT devices, smart control panels, and wearable applications. It features a 360 × 360 pixel resolution with 262K vibrant colors, delivering crisp graphics and excellent viewing angles for an enhanced user experience.

Powered by the ST77916 display driver IC and the CST816S capacitive touch controller, this module offers smooth display performance and responsive multi-touch operation. It supports QSPI communication for high-speed display data transfer and I2C communication for touch control, making it easy to integrate with popular microcontrollers and development platforms. Its compact form factor and reliable performance make it an excellent choice for HMI interfaces, portable electronics, and DIY projects.


User Manual / Datasheet / Example Codes Etc.


Features

  • 360 × 360 resolution, 262K colors, clear and colorful displaying effect
  • High touch screen transmittance, fast response and long lifetime
  • Built-in ST77916 display driver chip and CST816S capacitive touch control chip, using QSPI and I2C communication respectively, minimizes the required IO pins, supports controller boards like ESP32-S3 / Raspberry Pi Pico / STM32, etc
  • Comes with online development resources and manual (examples for ESP32 / Raspberry Pi Pico / STM32, etc)


Specifications

  • OPERATING VOLTAGE: 3.3V / 5V
  • BRIGHTNESS: 450 cd/㎡
  • DISPLAY DRIVER IC: ST77916
  • DISPLAY INTERFACE: QSPI
  • DISPLAY PANEL: IPS
  • DISPLAY SIZE: 45.68 × 45.68 (mm)
  • MODULE SIZE: 55 × 55 (mm)
  • RESOLUTION: 360 × 360 pixels
  • CONTRAST: 1200:1
  • TOUCH DRIVER IC: CST816S
  • TOUCH INTERFACE: I2C
  • TOUCH TYPE: Capacitive touch
  • DISPLAY COLOR: 262K


Package Includes

  • 1.85inch Touch LCD Module
  • GH1.25 15PIN cable
  • FFC 18PIN 0.5mm pitch cable 200mm (same direction)

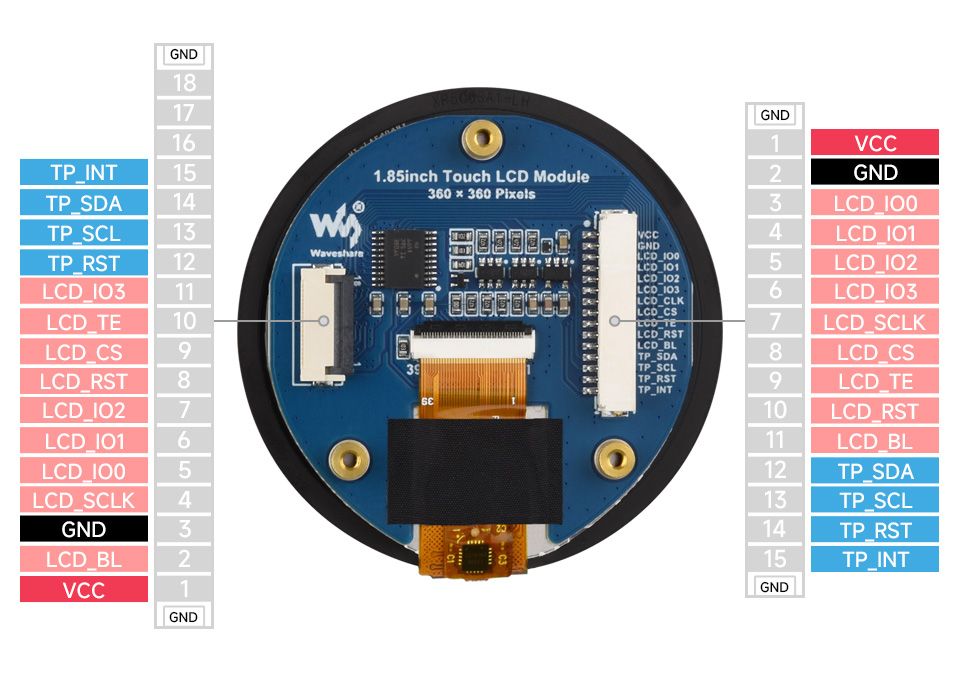

QSPI and I2C Control Interfaces

Onboard 15PIN GH1.25 and 18PIN FPC connectors for host board connection

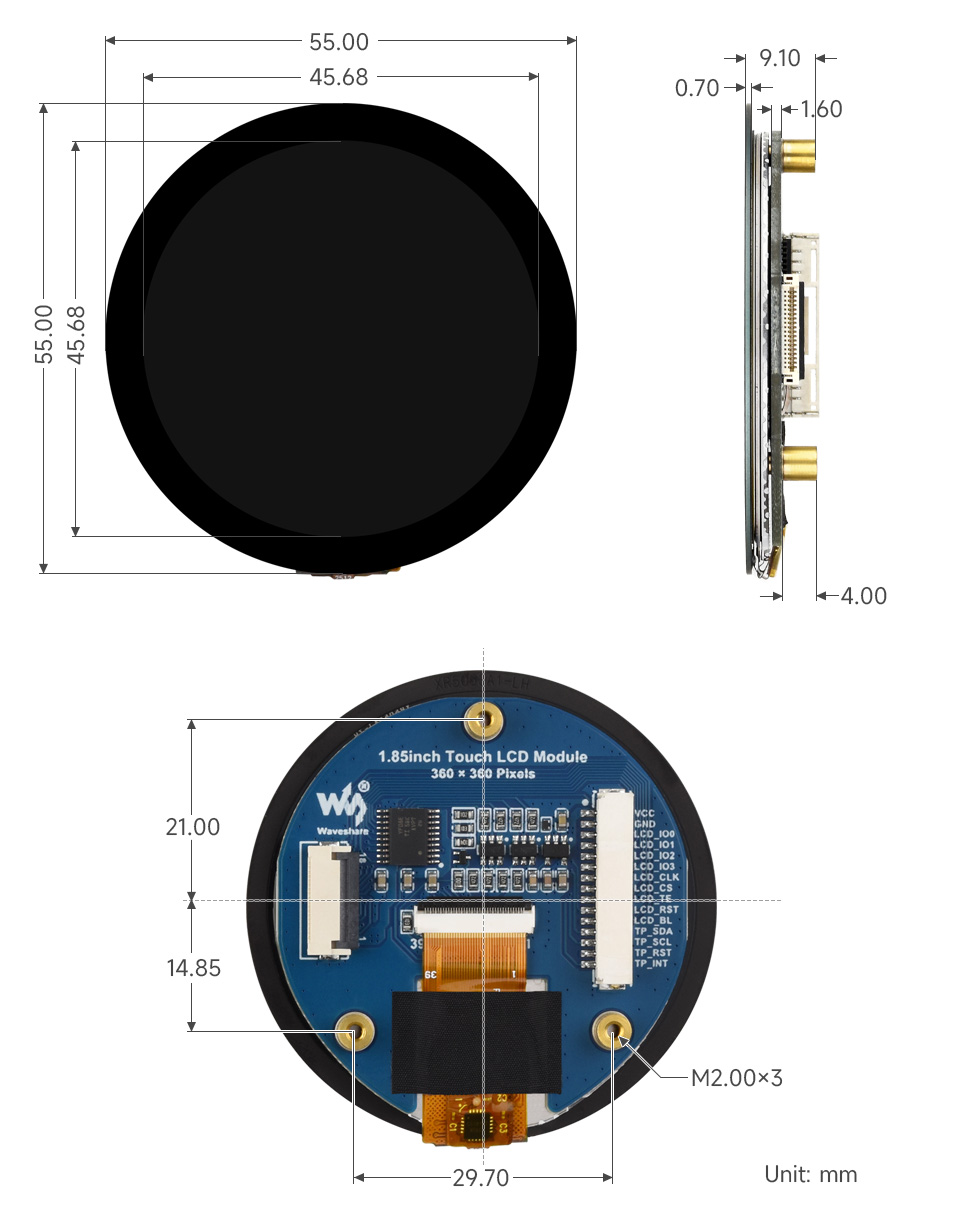

Dimensions
