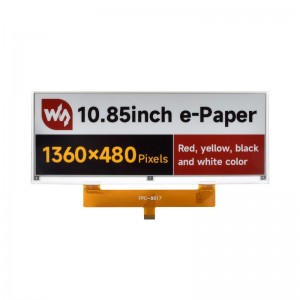

Name: 10.85inch e-Paper HAT+ (G), e-ink display, 1360x480, Red/Yellow/Black/White, SPI Interface, with HAT and Epaper Display
Brand: WaveShare Electronics
SKU: 29792
Price: 10179.00 INR
Availability: OutOfStock

10.85inch e-Paper HAT+ (G), e-ink display, 1360x480, Red/Yellow/Black/White, SPI Interface, with HAT and Epaper Display

WaveShare Electronics

10.85inch e-Paper HAT+ (G), e-ink display, 1360x480, Red/Yellow/Black/White, SPI Interface, with HAT and Epaper Display

Raspberry Pi Store

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)

Based on 0 reviews. - Write a review

₹10,179.00

₹8,626.27 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 86
B2B GST Credit Available

Price in reward points: 8627

Stock: 0 in Stock
SKU: 29792
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

Features

No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Comes with online development resources and manual (e-Paper Driver HAT circuit diagram, examples for Raspberry Pi / Arduino / STM32)
Optional for e-Paper Driver HAT:
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
Adopts Raspberry Pi HAT+ standard to improve interoperability, helping the users to design and develop faster, easy to use with other peripherals and extend more functions for Raspberry Pi
Adapting SPI interface for connecting with controller boards like Raspberry Pi / ESP32 / Arduino / STM32, etc.
Onboard voltage translator, compatible with 3.3V / 5V MCUs

Specifications

operating voltage	Raw display: 3.3V	display color	Red/Yellow/Black/White
operating voltage	with driver board: 3.3V/5V	display color	Red/Yellow/Black/White
interface	3-wire SPI, 4-wire SPI	grey scale	2
outline dimensions	Raw display: 270.56 × 105.92 × 1.20 (mm)	full refresh time	21s
outline dimensions	with driver board: 65.00 × 30.50 (mm)	full refresh time	21s
display size	259.76 × 91.68 (mm)	refresh power	<70mW
DOT PITCH	0.191 × 0.191 (mm)	standby current	<0.01uA (almost none)
RESOLUTION	1360 × 480 pixels	viewing angle	>170°

Package Contents

10.85inch e-Paper HAT+ (G) x1
MX1.25 10PIN cable x1
Screws pack x1

Resources

User Manual / Datasheet / Example Codes Etc

Dimensions
