10 Pin 0.5mm FFC FPC Connector Breakout Board

Working with FPC and FFC cables can be challenging when you need quick access to individual signals for testing, prototyping, or development. The 7Semi 10-Pin 0.5mm FPC Breakout Board provides a simple solution by converting a fine-pitch 10-pin FPC connector into easily accessible 2.54mm breakout pads. This allows engineers, makers, and repair technicians to connect flexible flat cables directly to breadboards, jumper wires, logic analyzers, oscilloscopes, and development platforms without designing a custom adapter.

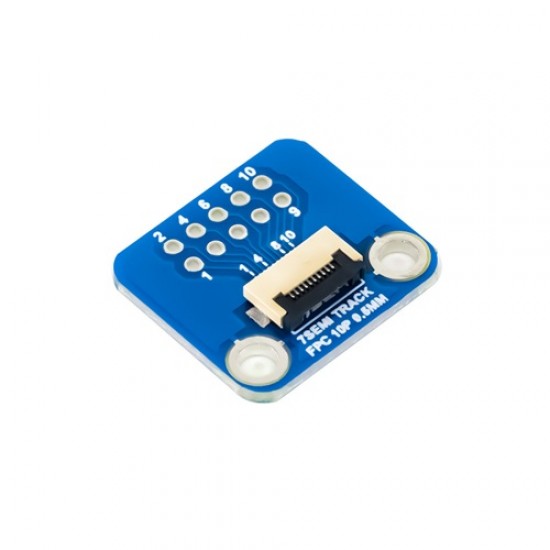

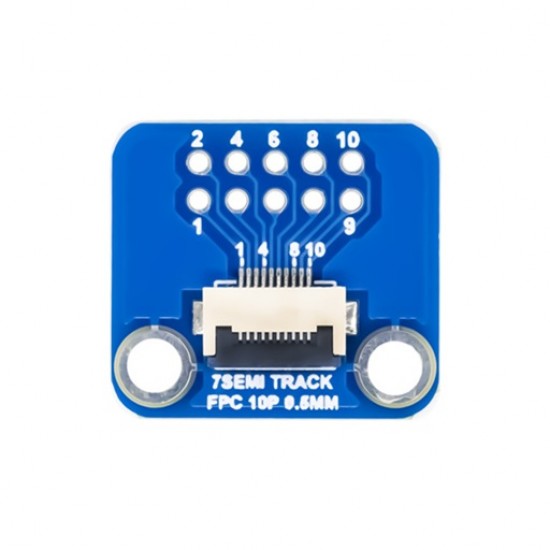

Designed around a 10-pin 0.5mm pitch FPC connector, the board routes each signal to clearly labeled breakout holes, making debugging and signal probing straightforward. The compact PCB includes mounting holes for secure installation and is suitable for embedded development, display interfacing, camera modules, touch panels, industrial equipment, and custom electronics projects that use flexible flat cables.

Whether you're reverse-engineering hardware, prototyping a new design, or developing products that use compact FPC connections, this breakout board provides a convenient bridge between fine-pitch flexible cables and standard prototyping hardware.

Datasheet

Features

Converts a 10-pin 0.5mm pitch FPC/FFC connector into standard breakout connections for rapid prototyping and testing.

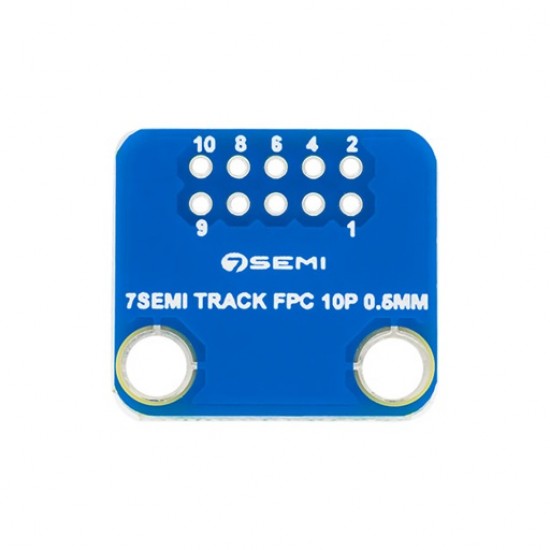

Clearly labeled pin numbering simplifies signal identification, wiring, troubleshooting, and debugging.
Compatible with a wide range of displays, camera modules, sensors, touch panels, and embedded electronics using 10-pin FPC cables.
Standard through-hole breakout pads allow direct connection to jumper wires, breadboards, headers, and test equipment.
Compact PCB footprint with mounting holes enables secure installation in development and production environments.
Ideal for prototyping, hardware debugging, signal analysis, product development, repair work, and educational projects.

Specifications

Category of product: Connector board

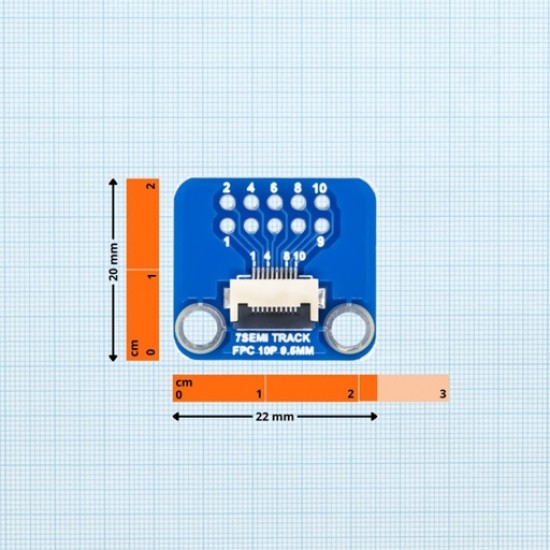

Dimension in mm: L=22mm W=20mm H=3.69mm
Operating Temperature: -40 to +85 °C
Operating Voltage: 5V

Package Includes

1x 10 Pin 0.5mm FFC FPC Connector Breakout Board
