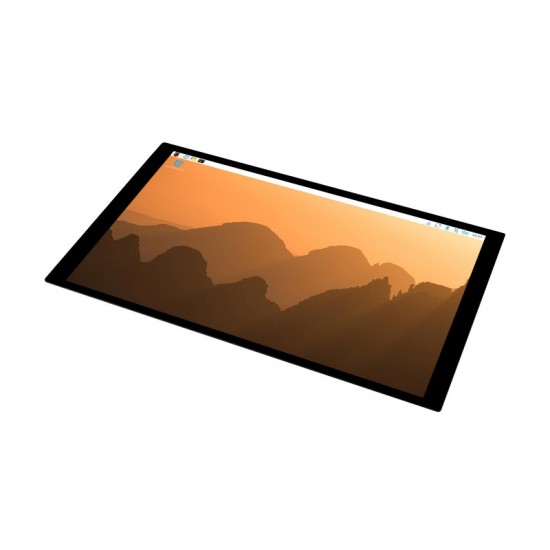

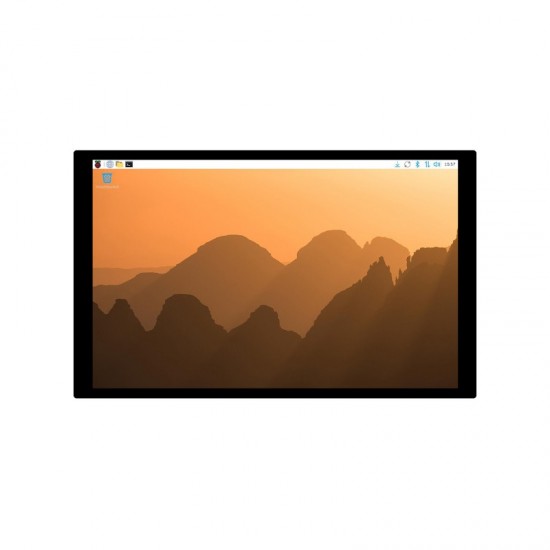

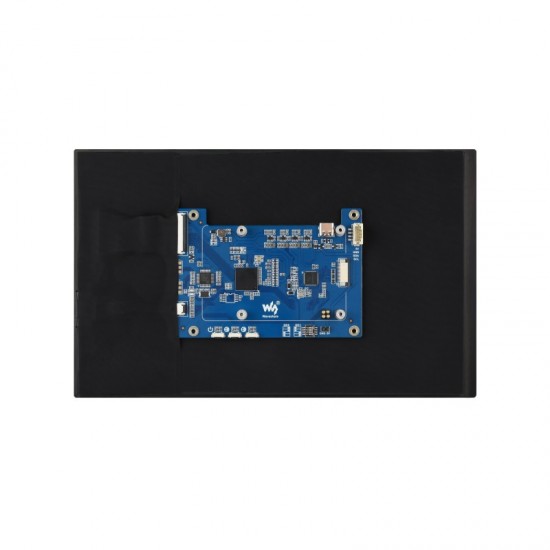

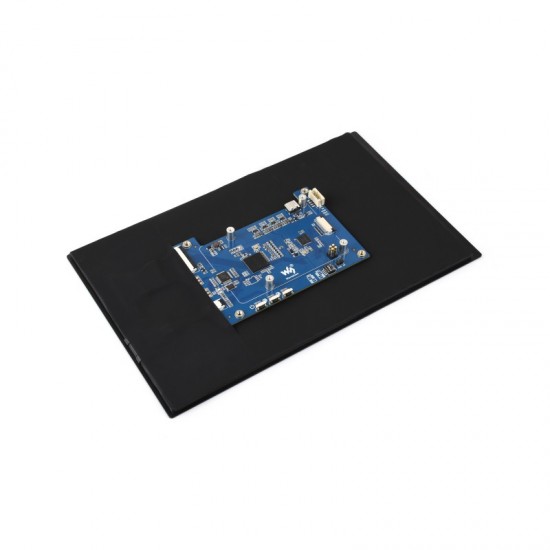

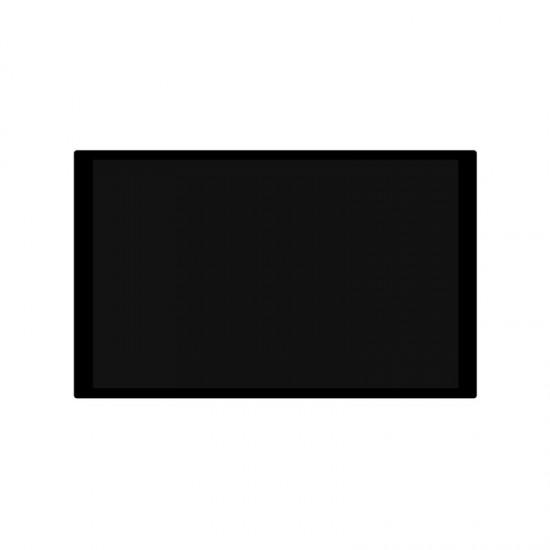

Name: Waveshare 10.1inch DSI Capacitive Touch Display (E) For Raspberry Pi, 1920×1200 Resolution, IPS Panel
Brand: WaveShare Electronics
SKU: 36058
Price: 15770.00 INR
Availability: OutOfStock

Waveshare 10.1inch DSI Capacitive Touch Display (E) For Raspberry Pi, 1920×1200 Resolution, IPS Panel

New

WaveShare Electronics

Waveshare 10.1inch DSI Capacitive Touch Display (E) For Raspberry Pi, 1920×1200 Resolution, IPS Panel

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)

Based on 0 reviews. - Write a review

₹15,770.00

₹13,364.41 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 133
B2B GST Credit Available

Price in reward points: 13364

Stock: 0 in Stock
SKU: 36058
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

Waveshare 10.1inch DSI Capacitive Touch Display (E) For Raspberry Pi, 1920×1200 Resolution, IPS Panel

The Waveshare 10.1-inch DSI Capacitive Touch Display (E) is a high-resolution touchscreen designed for Raspberry Pi projects and embedded computing applications. Featuring a 1920 × 1200 resolution IPS panel, it delivers sharp images, detailed visuals, accurate colours, and wide viewing angles for an enhanced viewing experience.

With its capacitive touch interface, the display supports intuitive finger-based operation, making it suitable for interactive applications, smart home control panels, industrial HMI systems, multimedia projects, and Raspberry Pi-based user interfaces. The DSI interface provides a direct display connection to compatible Raspberry Pi boards, helping create a clean and integrated system design.

User Manual / Datasheet / Example Codes Etc.

Features

10.1inch IPS display, with a hardware resolution of 1920 × 1200 and a viewing angle of 178°.
Supports 10-point capacitive touch, with the touch interface being I2C.
Adopts optical bonding process, with a tempered glass panel hardness of 6H.
Display is driven through the Raspberry Pi's DSI interface, supporting Raspberry Pi OS.
Supports Raspberry Pi 5 / 4B / 3B+ / 3A+, as well as CM5 / CM4 / CM3+ / CM3.
Supports software adjustment of backlight brightness, with onboard backlight switch and brightness increase/decrease buttons.

Specifications

Display Size: 10.1 inch
Hardware Resolution: 1920 × 1200
Display Panel: IPS
Viewing Angle: 178°
Brightness: 400 cd/m²
Display Colors: 16.7M
Color Gamut: 70% NTSC
Refresh Rate: 60 Hz (4 lane), 30 Hz (2 lane)
Display Interface: DSI
Touch Type: 10-point capacitive touch; the actual number of touch points depends on the system and application
Touch Interface: I2C
Touch Panel: Tempered glass, hardness 6H, optical bonding process
Power Supply: 5 V, 1000 mA
Backlight Control: Software and button backlight adjustment
Overall Dimensions: 239.00 × 147.00 mm
Display Area: 216.58 × 135.36 mm

Package Includes

10.1inch DSI LCD (E) x1
DSI-Cable-12cm-C x1
DSI-Cable-12cm x1
FFC 22PIN cable ~200mm (opposite direction) x1
PH2.0 4PIN cable ~200mm x1
Screws pack x1
