Name: LM1881, Video Sync Separator, DIP-8, Texas Instruments
Brand: National Semiconductor
SKU: 01448
Price: 106.20 INR
Availability: OutOfStock

National Semiconductor

LM1881, Video Sync Separator, DIP-8, Texas Instruments

Based on 0 reviews. - Write a review

₹106.20

₹90.00 + 18% GST

All Inclusive, Shipping Calculated at Checkout

B2B GST Credit Available

Stock: 0 in Stock
SKU: 01448
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

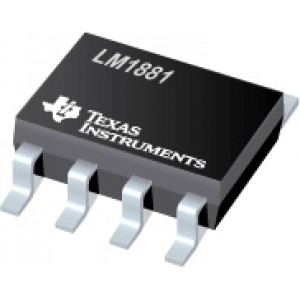

LM1881, Video Sync Separator, DIP-8, Texas Instruments

The LM1881 Video sync separator extracts timing information including composite and vertical sync, burst/back porch timing, and odd/even field information from standard negative going sync NTSC, PAL and SECAM video signals with amplitude from 0.5V to 2V p-p. The integrated circuit is also capable of providing sync separation for non-standard, faster horizontal rate video signals. The vertical output is produced on the rising edge of the first serration in the vertical sync period. A default vertical output is produced after a time delay if the rising edge mentioned above does not occur within the externally set delay period, such as might be the case for a non-standard video signal.

Technical Datasheet [PDF - ti.com]

Video Experimentor Shield for Arduino, Designed using LM1881 at core

Features

AC Coupled Composite Input Signal
>10 kΩ Input Resistance
<10 mA Power Supply Drain Current
Composite Sync and Vertical Outputs
Odd/Even Field Output
Burst Gate/Back Porch Output
Horizontal Scan Rates to 150 kHz
Edge Triggered Vertical Output
Default Triggered Vertical Output for Non-standard Video Signal (Video Games-Home Computers)
