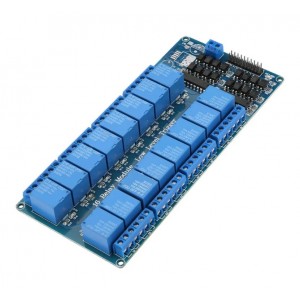

16 Channel 12V Relay Module with Light Coupling and LM2576 Power Supply
This is a 16 Channel 12V Relay Module with Light Coupling LM2576 Power Supply, these boards are able to control various appliances and other equipment with a large current. It can be controlled directly by a Micro-controller (Arduino, 8051, AVR, PIC, DSP, ARM, MSP430, TTL logic).
Features
- 12V relay with AC contact capacity of 10A 250V and optocoupler protection.
- Onboard power supply module does not need an external power supply. I / O port driver is active low.
- The module can be used as microcontroller development board module and also as appliance control, PLC extended output.
- It is using the industry’s top -quality isolation optocouplers, strong anti-jamming ability, stable performance.
- The 1-16 road can be any full on/off or any road.
- Each relay common terminal “COM” are independent, user-friendly access to different signals, each relay are normally closed and normally open with the port.
- Each relay is equipped with motion lights.
- All interfaces can be directly connected through the terminal leads, very convenient.
Specifications
- Relay Type: SPDT (Single Pole Double Throw).
- Relay Control Voltage: 12V DC.
- Switching Voltage: 10A @ 250VAC
- Switching Voltage: 10A @ 30VDC
- Operating Temperature: -40°C to 85°C
Applications
- Home automation systems.
- Industrial equipment control.
- Robotics and IoT projects.
- Custom electronic control systems.
Package Includes
- 1x 16 Channel 12V Relay Module
