3.5inch Capacitive Touch Display (F) for Raspberry Pi, IPS Panel, 320×480 Resolution, 5-point Touch, Immersion Gold Process, Toughened Glass Panel

Waveshare 3.5inch Capacitive Touch Display (F) for Raspberry Pi, IPS Panel, 320×480 Resolution, 5-point Touch, Immersion Gold Process, Toughened Glass Panel

The 3.5-inch RPi LCD (F) is equipped with a capacitive touch screen with a resolution of 320 × 480, supporting two connection methods: Pigo pin communication and GH1.25 13PIN cable connection, and providing example materials for Raspberry Pi, ESP32, Pico, Arduino, etc.

User Manual / Datasheet / Example Codes Etc.

Features

• 320×480 resolution, 262K RGB colors, clear and colorful displaying effect
• High touch screen transmittance, fast response and long lifetime
• Embedded with ST7796S driver chip and GT911 capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins
• Supports two connection methods: Pigo pin communication and GH1.25 13PIN cable connection
• Adopts Immersion Gold process, nice looking, with better durability
• Provides complete demos and development materials for Raspberry Pi, Raspberry Pi Pico, ESP32 and Arduino platforms

Specifications

• Display size: 3.5inch
• Display Panel: IPS
• Touch Type: Capacitive
• Touch Point: 5-point touch
• Operating Voltage: 5V
• Logic level: 3.3V
• Display Driver: ST7796S
• Touch Driver: GT911
• Display Interface: 4-wire SPI
• Touch Interface: I2C
• Display Size: 49.36 × 73.84mm
• Touch panel Size: 61.00 × 92.44mm

Package Includes

• 3.5inch RPi LCD (F) x1
• GH1.25 13Pin cable x1
• Screws pack x1

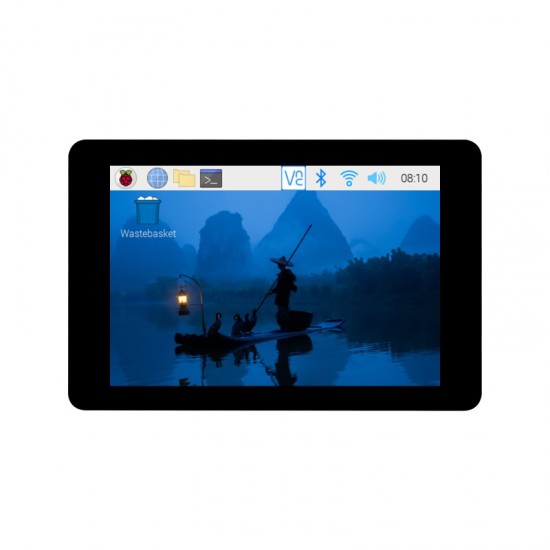

IPS Display Panel

Excellent Display Performance, 262K color, wide viewing angle

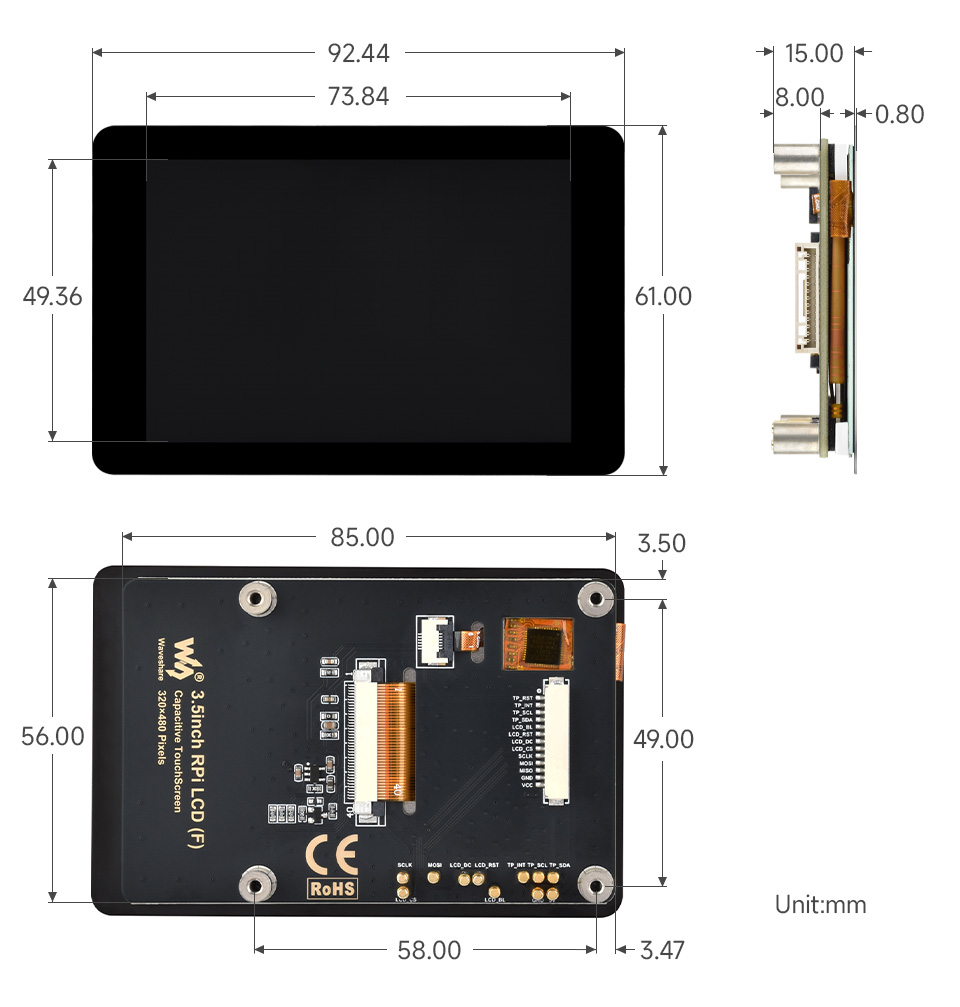

Dimensions
