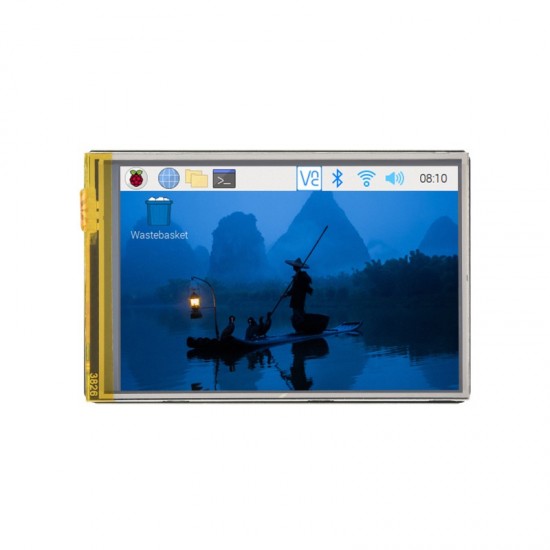

3.5inch Resistive Touch Display (G) for Raspberry Pi, IPS Panel, 320×480 Resolution, Immersion Gold Process, 262K Color

Waveshare 3.5inch Resistive Touch Display (G) for Raspberry Pi, IPS Panel, 320×480 Resolution, Immersion Gold Process, 262K Color

The 3.5-inch RPi LCD (G) is equipped with a resistive touch screen with a resolution of 320 × 480, supporting two connection methods: Pigo pin communication and GH1.25 11PIN cable connection, and providing example materials for Raspberry Pi, ESP32, Pico, Arduino, etc.

User Manual / Datasheet / Example Codes Etc.

Features

• 320×480 resolution, 262K RGB colors, clear and colorful displaying effect
• High touch screen transmittance, fast response and long lifetime

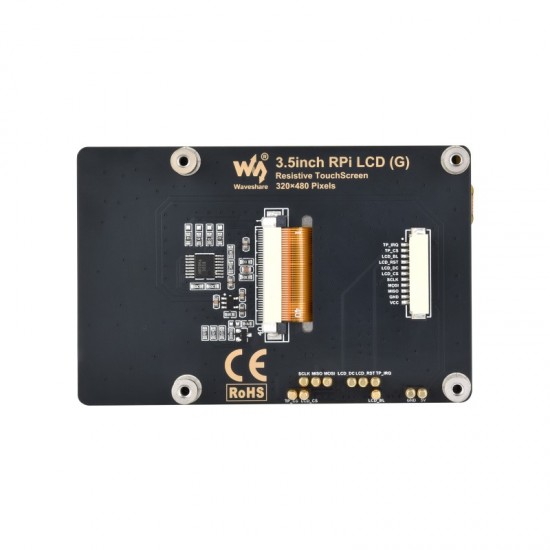

• Embedded with ST7796S driver chip and XPT2046 resistive touch control chip, using SPI communication, minimizes required IO pins

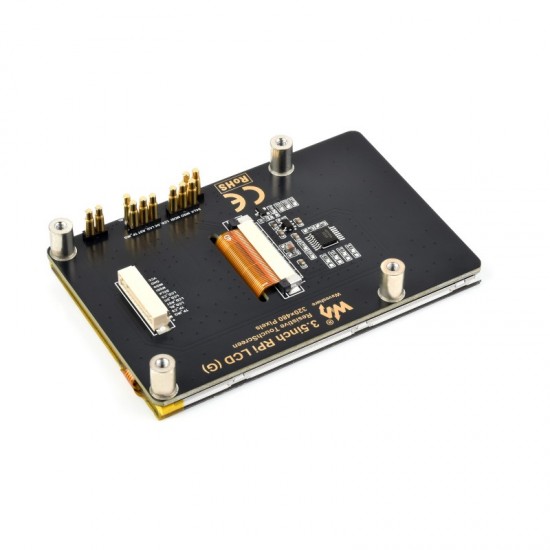

• Supports two connection methods: Pigo pin communication and GH1.25 11PIN cable connection
• Adopts Immersion Gold process, nice looking, with better durability
• Provides complete demos and development materials for Raspberry Pi, Raspberry Pi Pico, ESP32 and Arduino platforms

Specifications

• Display size: 3.5inch
• Display Panel: IPS
• Touch Type: Capacitive
• Touch Point: single-point touch
• Operating Voltage: 5V
• Logic level: 3.3V
• Display Driver: ST7796S
• Touch Driver: XPT2046
• Display Interface: 4-wire SPI
• Touch Interface: I2C
• Display Size: 49.66 × 74.29mm
• Touch panel Size: 54.26 × 83.62mm

Package Includes

• 3.5inch RPi LCD (G) x1
• GH1.25 11PIN cable x1
• Screws pack x1

IPS Display Panel

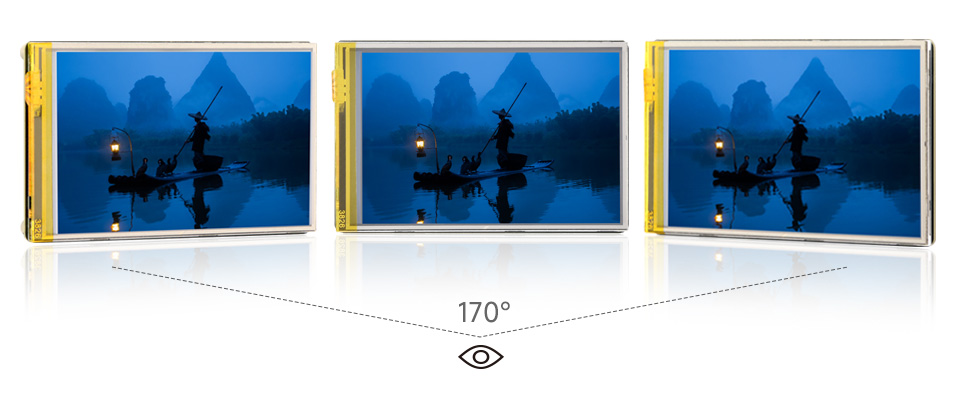

Excellent Display Performance, 262K color, wide viewing angle

Dimensions
