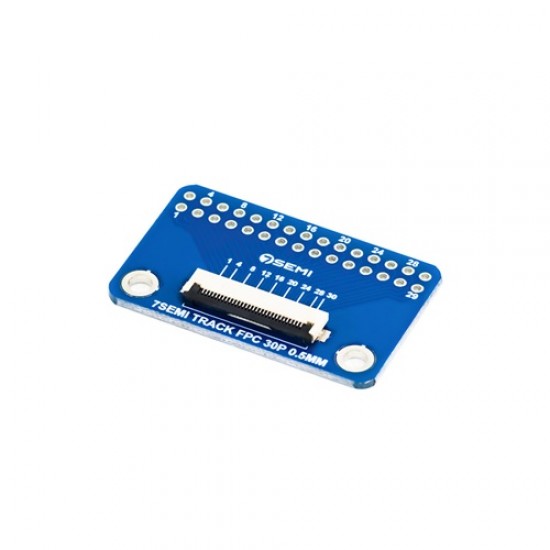

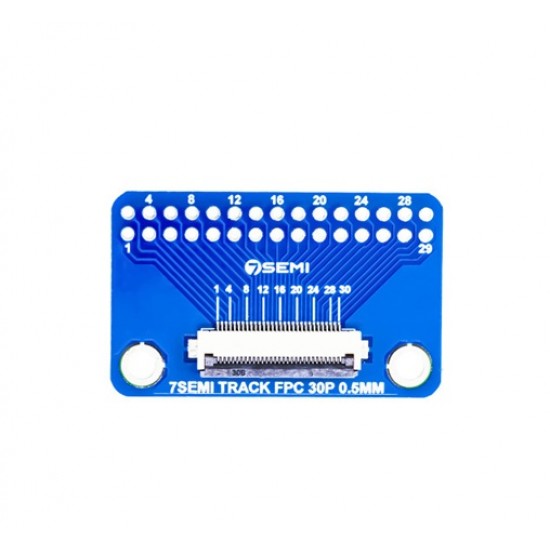

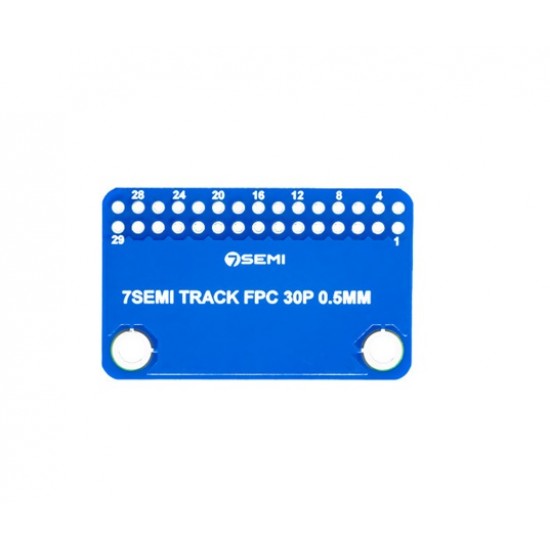

30 Pin 0.5mm FFC FPC Connector Breakout Board

The Breakout Board for 7Semi's 30-Pin FFC FPC Connector is an outstanding solution designed to simplify your prototyping efforts. With advanced features and a user-friendly design, it serves as a crucial tool for both electronics enthusiasts and professionals.

This breakout board comes with a 0.5mm pitch FPC FFC connector that has 30 pins and a height of 2mm. The front flip bottom contact SMT FPC connector is skillfully soldered onto the PCB, ensuring a reliable and secure connection for your FPC FFC cables, minimizing the risk of signal loss or interruption.

One notable advantage of the 7Semi breakout board is its ability to streamline the prototyping process. The output pins are arranged strategically in double rows of 0.1" spaced holes, allowing easy integration with standard breadboards. This facilitates swift and trouble-free testing and iteration of your circuit designs.

Moreover, the breakout board features clearly marked pin numbers, improving usability and eliminating confusion during assembly and testing. This intuitive design ensures a smooth experience, making it accessible even for individuals new to the field of electronics.

The versatile 30 Pin 0.5mm FFC FPC Connector Breakout Board opens up a world of possibilities for electronic connectivity. This breakout board serves as a crucial link between your devices and 30-pin 0.5mm FFC/FPC connectors, enabling seamless communication and data transfer. Its applications are vast and varied, ranging from consumer electronics to industrial automation. Whether you're working on prototyping new electronic designs, repairing or upgrading existing devices, or creating custom electronic interfaces, the 30 Pin 0.5mm FFC FPC Connector Breakout Board is an invaluable tool. Its precision engineering ensures reliable and stable connections, making it suitable for applications such as LCD displays, touchscreens, embedded systems, and more.

Datasheet

Features

0.5mm Pitch FPC FFC Connector 30 Pins Height 2mm Front Flip Bottom Contact
Speeds up prototyping process
Out pins with traces going to double rows of 0.1" spaced holes
Compatible pin spacing for breadboard use
Easily identifiable pin numbers
Size: 40x25 mm

Specifications

Category of product: Connector board
Operating Voltage: 5V
Operational Temprature in °C:-40C to 70C
DIMENSION IN mm: L=40mm W=25mm H=1.63mm

Package Includes

1x 30 Pin 0.5mm FFC FPC Connector Breakout Board
