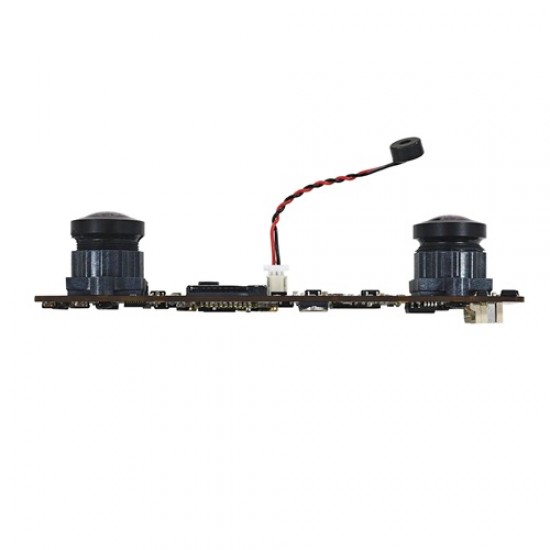

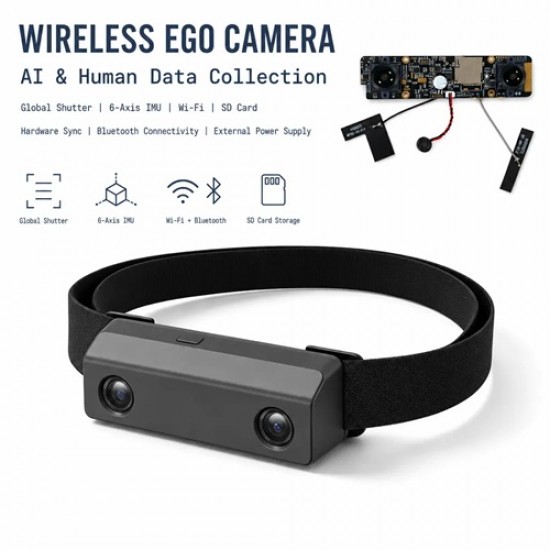

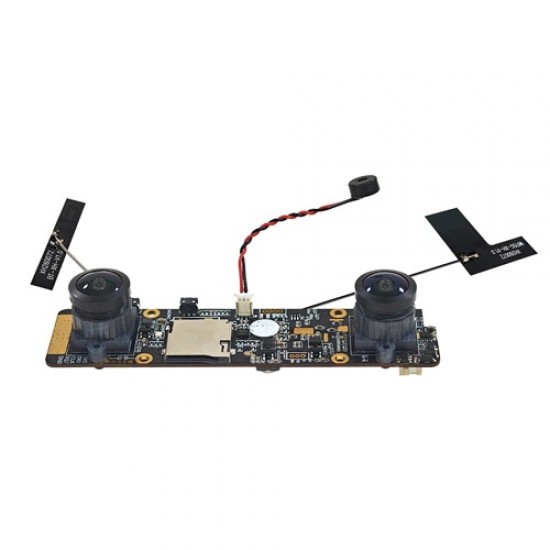

3372 WiFi EGO Camera Module – Global Shutter Stereo Camera with 6-Axis IMU and SD Card Recording for Egocentric Data Collection
This 2MP dual-lens stereo camera module is designed for egocentric data collection, robot learning, and embodied AI applications. Equipped with dual global shutter sensors, it provides synchronized stereo images for accurate depth perception and 3D vision.
The built-in 6-axis IMU supports 100/200/500Hz sampling and hardware-synchronized timestamps for reliable visual-inertial fusion. Each camera comes with a unique factory calibration file, including camera intrinsics and distortion coefficients.
The camera supports USB 2.0, Wi-Fi, Bluetooth, and SD card storage for flexible data transfer and recording. A built-in rechargeable battery enables portable and standalone operation.
With cross-platform SDK/API support for Windows, Linux, and ROS, it offers easy integration for robotics, AI research, and egocentric vision applications.
2MP dual‑lens vision module with global shutter, 3840×1080@30fps, 125° FOV, and wide dynamic range (91.56dB HDR) — ideal for facial recognition, liveness detection, access control, and intelligent terminals. Supports dual‑camera sync, ranging, and calibration for biometric identification, 3D reconstruction, and depth sensing. Compact PCB with fixed M12 lens, USB 2.0, compatible with Windows/Linux.
Features
- Dual 2 MP Color Global Shutter Sensors
- High-sensitivity 1/2.6" CMOS sensors eliminate motion blur, ensuring sharp capture for fast-moving
- subjects in biometric and embedded vision applications.
- 3840×1080P at 30fps
- Delivers high-resolution, high-frame-rate video for precise facial recognition, liveness detection and
- intelligent terminal integration.
- 91.56dB HDR & Dual 125° Low-Distortion FOV
- Maintains balanced imaging under extreme lighting contrast while covering wide scenes with
- minimal distortion.
- Advanced Dual-Camera Vision Capabilities
- Supports dual-camera sync, ranging and calibration – enabling 3D reconstruction, VR vision and
- depth detection – all over USB 2.0 with Windows/Linux compatibility
Specifications
- Model: 3290
- Max Resolution: 3840×1080
- Sensor Size: 1/2.6″
- Pixel Size: 3.0μm*3.0μm
- FOV: D= 125°/H=115°/V=80°
- Frame Rate: 30fps
- Focus Type: FF
- WDR: Linear mode: 61.56 dB / HDR mode: 91.56 dB
- Output Format: MJPG/H.264/H.265
- Interface: USB 2.0
- System Compatibility: Android/WindowsXP/7/8/10/11/Linux
Applications
- Smart Terminal & Kiosk Integration
- The compact PCB, fixed M12 lens and USB 2.0 plug‑and‑play compatibility allow easy embedding into self‑service kiosks, ticket vending machines and interactive information terminals. Wide 125° FOV covers a large capture area, accommodating users of different heights and distances.
- 3D Reconstruction & Depth Sensing
- Native support for dual‑camera synchronization, ranging and calibration enables precise depth map generation and 3D point cloud output. This is essential for body scanning, object modelling, robotic picking and 3D face reconstruction in security or retail analytics.
- Virtual Reality (VR) Vision & Immersive Interaction
- Low‑distortion dual 125° lenses and synchronized global shutter capture natural stereoscopic video at 30fps. The module can serve as an entry‑level stereo camera for VR headset pass‑through, motion tracking or gesture recognition in interactive installations.
- Surveillance & Security Systems
- HDR mode (91.56dB) maintains clear details in scenes with strong backlight or rapid lighting changes, such as entrances, parking lots or ATMs. The wide FOV reduces blind spots and the dual‑camera setup enables people counting, loitering detection and object distance estimation.Embedded Vision for
- Industrial & Logistics
- Fixed focus, low distortion and global shutter make it suitable for barcode reading, package dimensioning (via depth detection) and robotic guidance on assembly lines. USB 2.0 and Linux/Windows support simplify integration into industrial PCs and embedded systemsLiveness & Identity Verification for
- Financial Terminals
- High‑resolution 3840×1080P combined with dual‑camera ranging allows simultaneous face capture and depth verification, reducing fraud risks in ATMs, banking kiosks and digital onboarding stations.
Package Includes
- 1x 3372 WiFi EGO Camera Module – Global Shutter Stereo Camera with 6-Axis IMU and SD Card Recording for Egocentric Data Collection
