Name: 40 Pin 0.5mm FFC FPC Connector Breakout Board
Brand: 7Semi
SKU: 08001
Price: 113.00 INR
Availability: OutOfStock

40 Pin 0.5mm FFC FPC Connector Breakout Board

7Semi

40 Pin 0.5mm FFC FPC Connector Breakout Board

Based on 0 reviews. - Write a review

₹113.00

₹95.76 + 18% GST

All Inclusive, Shipping Calculated at Checkout

B2B GST Credit Available

Price in reward points: 95

Stock: 0 in Stock
SKU: 08001
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

40 Pin 0.5mm FFC FPC Connector Breakout Board

The 40 Pin 0.5mm FFC FPC Connector Breakout Board is an essential tool for electronics prototyping, offering a high-precision solution for interfacing flexible flat cables (FFC) and flexible printed circuits (FPC). Designed to ensure optimal compatibility, this breakout board features a 0.5mm pitch, 40-pin FPC connector securely soldered onto a robust PCB. The front flip bottom contact surface-mount (SMT) FPC connector enhances durability and ensures a stable connection, making it ideal for both professional and DIY electronics applications.

This breakout board simplifies the prototyping process, providing a well-organized layout with double rows of 0.1-inch spaced holes, making it highly compatible with standard breadboards and perfboards. With clearly labeled pin numbers, it eliminates confusion during circuit connections, reducing errors and improving efficiency. Whether you are working on embedded systems, display interfaces, or custom PCB designs, this breakout board ensures seamless integration and reliable performance.

The 40 Pin FFC FPC Connector Breakout Board is a game-changer for electronics enthusiasts and professionals alike. This remarkable board offers a reliable and efficient solution for connecting flexible printed circuits (FFC) and flexible printed cables (FPC) with up to 40 pins. With a compact design and a 0.5mm pitch, it provides precise and secure connections for your projects. The breakout board's versatility is further enhanced by its compatibility with breadboards, thanks to the double rows of 0.1" spaced holes. Whether you are prototyping or working on complex electronic systems, this breakout board is an essential tool that simplifies the process and ensures seamless connectivity.

Datasheet

Features

High-Quality FFC/FPC Connector: Features a 40-pin, 0.5mm pitch front flip bottom contact SMT connector, ensuring secure and stable connections.
Breadboard-Friendly Design: Equipped with double rows of 0.1-inch spaced holes, allowing easy interfacing with breadboards and standard prototyping tools.
Clear Pin Labeling: Each pin is clearly numbered for straightforward wiring and reduced errors in circuit assembly.
Durable and Reliable: Constructed using high-quality PCB material, ensuring longevity and excellent signal transmission.
Versatile Applications: Ideal for display modules, touchscreens, embedded systems, ribbon cable interfaces, and more.
Easy to Use: Designed for both professionals and hobbyists looking for a quick and efficient FPC/FFC breakout solution.
Speeds up prototyping process
0.5mm Pitch FPC FFC Connector 40Pins Height 2mm Front Flip Bottom Contact
Out pins with traces going to double rows of 0.1" spaced holes
Compatible pin spacing for breadboard use
Easily identifiable pin numbers

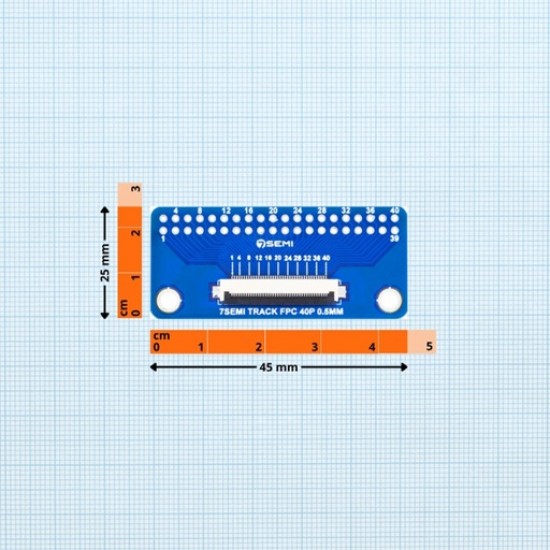

Size: 54x24 mm

Specifications

Category of product: SMD to DIP Adapters
Operational Temprature:-40C to 70C
Total no of pins: 40 with 2.54mm pitch
Connector: 40 pins FFC FPC with 0.5mm pitch

Package Includes

1x 40 Pin 0.5mm FFC FPC Connector Breakout Board
