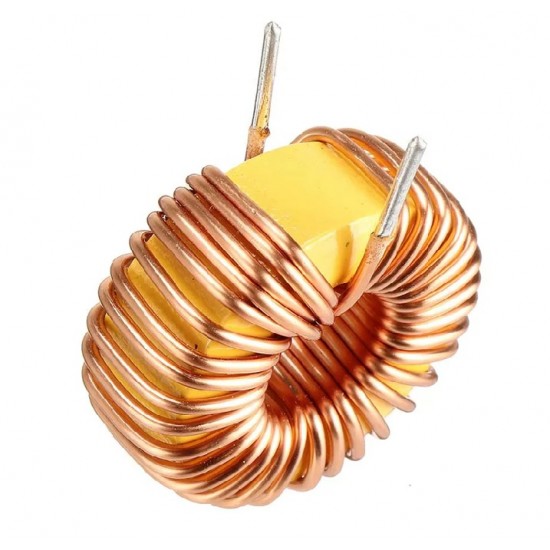

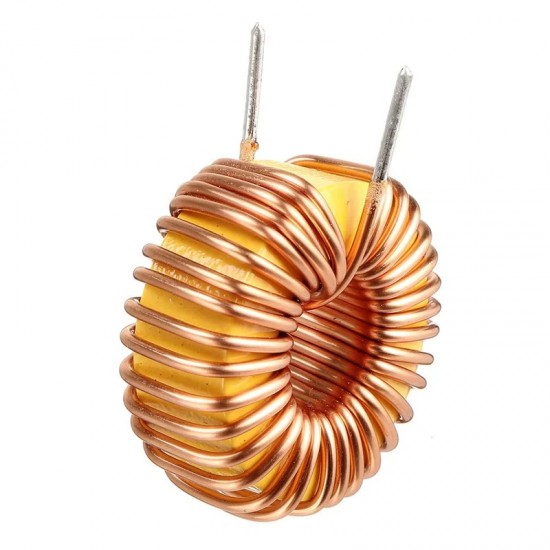

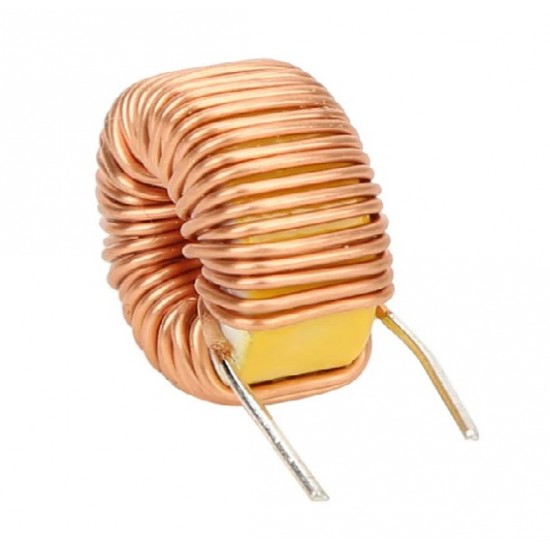

100uH 6A High Current Toroidal Inductor DIP Package
The 100µH 6A High Current Toroidal Inductor is a reliable and efficient component designed for power supply circuits, DC-DC converters, and energy storage applications. Built with a toroidal core, this inductor offers low electromagnetic interference (EMI), high efficiency, and excellent current handling capability, making it ideal for high-performance electronic designs.
Featuring a through-hole DIP package, it ensures easy installation and strong mechanical stability on PCBs. The robust construction supports continuous high current up to 6A, while maintaining stable inductance and minimal core losses.
This inductor is widely used in switching regulators, power filtering, voltage regulation modules, and various DIY or industrial electronics projects where consistent performance and durability are essential
Specifications
- Inductance: 100µH
- Current Rating: Up to 6A
- Inductor Type: Toroidal (DIP)
- Mounting Type: Through-Hole
- Core Material: Ferrite Core
- DC Resistance (DCR): Low
- Tolerance: ±10% to ±20% (typical)
- Operating Temperature: -40°C to +125°C (approx.)
- Saturation Current: ~6A (depending on conditions)
- Lead Type: Radial Leads
- Application Type: Power / High Current Applications
- Dimensions: Standard toroidal DIP
Applications
- DC-DC converters and voltage regulators
- Switching power supplies (SMPS)
- Power filtering and noise suppression circuits
- Energy storage in power electronics
- Battery-powered devices and charging circuits
- Inverters and UPS systems
- LED drivers and lighting circuits
- Industrial control and automation systems
- DIY electronics and prototyping projects
