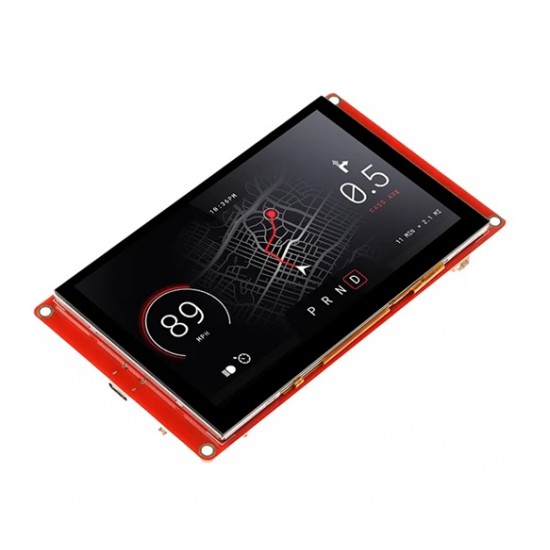

Elecrow CrowPanel 5inch HMI ESP32 Display 800x480 RGB TFT LCD Touch Screen Compatible with Arduino/LVGL/ PlatformIO/Micropython-Without Acrylic Case
CrowPanel ESP32 Display 5.0-inch module is a powerful HMI capacitive touch screen with an 800*480 resolution LCD. It uses the ESP32-S3-WROOM-1-N4R8 module as the main control processor, with a dual-core 32-bit LX6 microprocessor, integrated WiFi and Bluetooth-compatible wireless functions, a main frequency of up to 240MHz, providing powerful performance and versatile applications, suitable for IoT application devices and other scenarios.

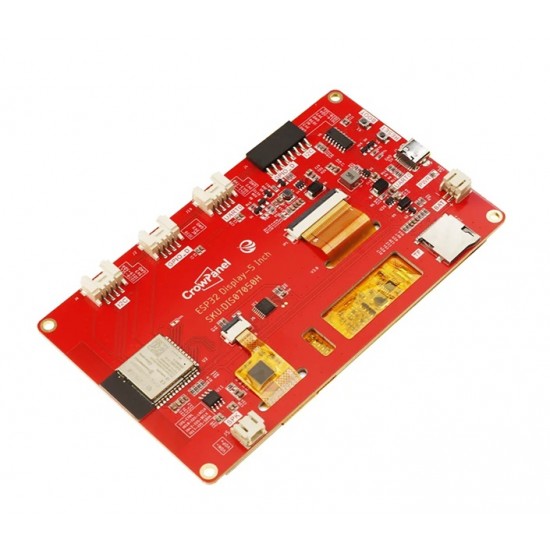

The module includes a 5.0-inch LCD display and a driver board. The display screen uses a capacitive touch technology, and the board has reserved a TF card slot, multiple peripheral interfaces, USB interface, speaker interface, battery interface, etc., providing more expansion possibilities. It supports development environments such as Arduino IDE, Espressif IDF, Lua RTOS, and Micro Python, and is compatible with the LVGL graphics library, supporting openHASP. This enables developers to not only customize their own UI interfaces but also to create interesting projects quickly and easily, greatly shortening the development cycle.
The CrowPanel ESP32 Display 5.0-inch module is suitable for a wide range of scenes, such as automotive HMI, medical equipment, smart home, industrial control, civil electronics, home automation, new energy, and IoT application devices. Its various interfaces and expansion functions enable it to meet the needs of different fields, providing users with a more comprehensive solution. This 5" display also supports tactility.
User Manual / Datasheet / Example Codes Etc.
Features
- Integrated ESP32-S3-WROOM-1-N4R8 module,built-in wireless communication 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth-compatible 5.0;
- Support development environment Arduino IDE, Espressif IDF, PlatformIO, Micro Python and compatible with LVGL graphics library;
- Built-in LVGL demo interface and Arduino example, plug and play;
- LCD 800*480 5.0 inches TFT-LCD capacitive screen with driver IC ILI6122 + ILI5960;
- Rich peripheral interfaces and expansion functions enable it to meet the needs of different fields.
Specifications
- Model: 5.0 inch CrowPanel ESP32 display
- Main Processor: ESP32-S3-WROOM-1-N4R8
- Resolution: 800*480
- Touch Type: Capacitive Touch Screen
- Display Type: TN Panel
- Screen: TFT-LCD Screen
- Display driver: ILI6122 & ILI5960
- External power supply: DC5V-2A
- Battery voltage: 3.7-4.2V
- Interface: 2*UART0,2*GPIO,2*I2C,1*Battery
- Button: BOOT Button and Reset Button
- Active Area: 108*64.8mm(W*H)
- Working Temperature: -20℃～70℃
- Storage Temperature: -30℃～80℃
- HS CODE: 8524919090

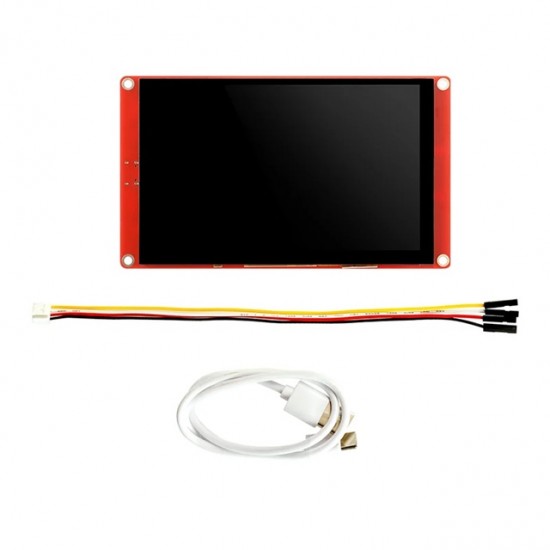

Package Includes
- 1x CrowPanel ESP32 Display-5.0 Inch Display
- 1x USB-A to Type-C Cable
- 1x Crotail/Grove to 4pin DuPont cable

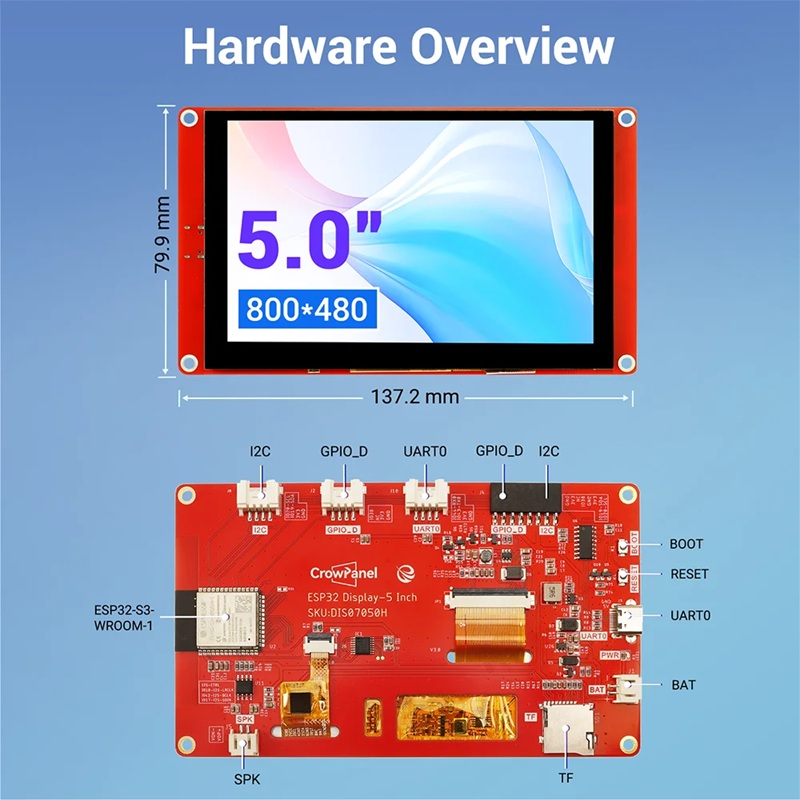

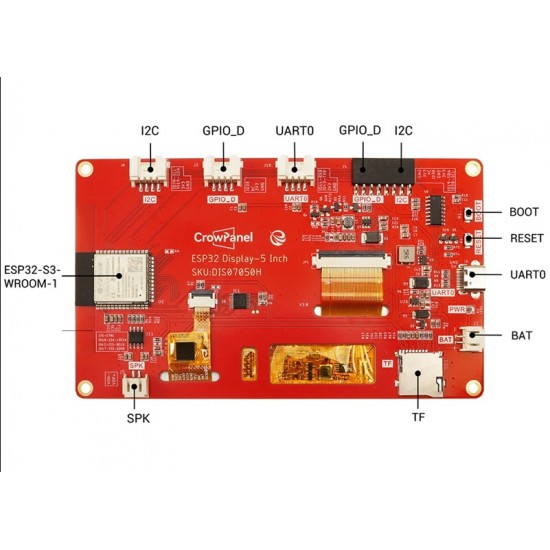

Hardware Overview
