Name: 7inch DSI Capacitive Touch Display, 1024 × 600 Pixels, IPS Panel, 5-Point Touch, Supports Backlight Adjustment Via Software
Brand: WaveShare Electronics
SKU: 33259
Price: 4365.00 INR
Availability: InStock

7inch DSI Capacitive Touch Display, 1024 × 600 Pixels, IPS Panel, 5-Point Touch, Supports Backlight Adjustment Via Software

WaveShare Electronics

7inch DSI Capacitive Touch Display, 1024 × 600 Pixels, IPS Panel, 5-Point Touch, Supports Backlight Adjustment Via Software

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)

Based on 0 reviews. - Write a review

₹4,365.00

₹3,699.15 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 37
B2B GST Credit Available

Price in reward points: 3699

Stock: 5 in Stock
SKU: 33259
Delivery Time
Bulk & B2B RFQ

Add to Cart

Buy Now

Plan to Buy Later ? Add to Wish List

7inch DSI Capacitive Touch Display, 1024 × 600 Pixels, IPS Panel, 5-Point Touch, Supports Backlight Adjustment Via Software, Complatible with Raspberry Pi & Luckfox Boards

The 7-inch DSI Capacitive Touch Display is a high-quality LCD solution designed for embedded systems, SBCs, and industrial HMI applications. Featuring a 1024 × 600 pixel IPS panel, it delivers sharp images, accurate colors, and wide viewing angles, making it ideal for graphical user interfaces and multimedia content.

This display uses a DSI (Display Serial Interface) for high-speed video transmission with reduced wiring, ensuring stable and reliable performance. The 5-point capacitive touch panel provides smooth, accurate multi-touch interaction, suitable for modern touch-based applications. Additionally, the display supports software-controlled backlight adjustment, allowing users to fine-tune brightness for different environments and reduce power consumption.

User Manual / Datasheet / Example Codes Etc.

Specifications

Display Size: 7 inch
Display Type: IPS TFT LCD
Resolution: 1024 × 600 pixels
Interface: DSI (Display Serial Interface)
Touch Type: Capacitive touch
Touch Points: 5-point multi-touch
Color Depth: 16.7M colors (typical)
Viewing Angle: Wide viewing angle (IPS technology)
Backlight: LED backlight
Backlight Control: Software adjustable brightness
Response Time: Fast response suitable for HMI and multimedia
Operating Voltage: As per host board (via DSI)
Mounting: Panel mount / bracket support (model dependent)
Operating Temperature: 0°C to +60°C (typical)
Applications: Raspberry Pi displays, industrial HMI, kiosks, IoT dashboards, embedded UI systems

Package Includes

7-DSI-TOUCH-C x1
MIPI-DSI-Cable-12cm x1
MX 1.25 2PIN to 2.54 3PIN cable x1
FFC 22PIN cable ~200mm (opposite sides) x2
MX1.25 2PIN to MX1.25 4PIN cable ~150mm x1
Standoffs x1

IPS Display Panel

Excellent Display Performance With 170° Wide Viewing Angle

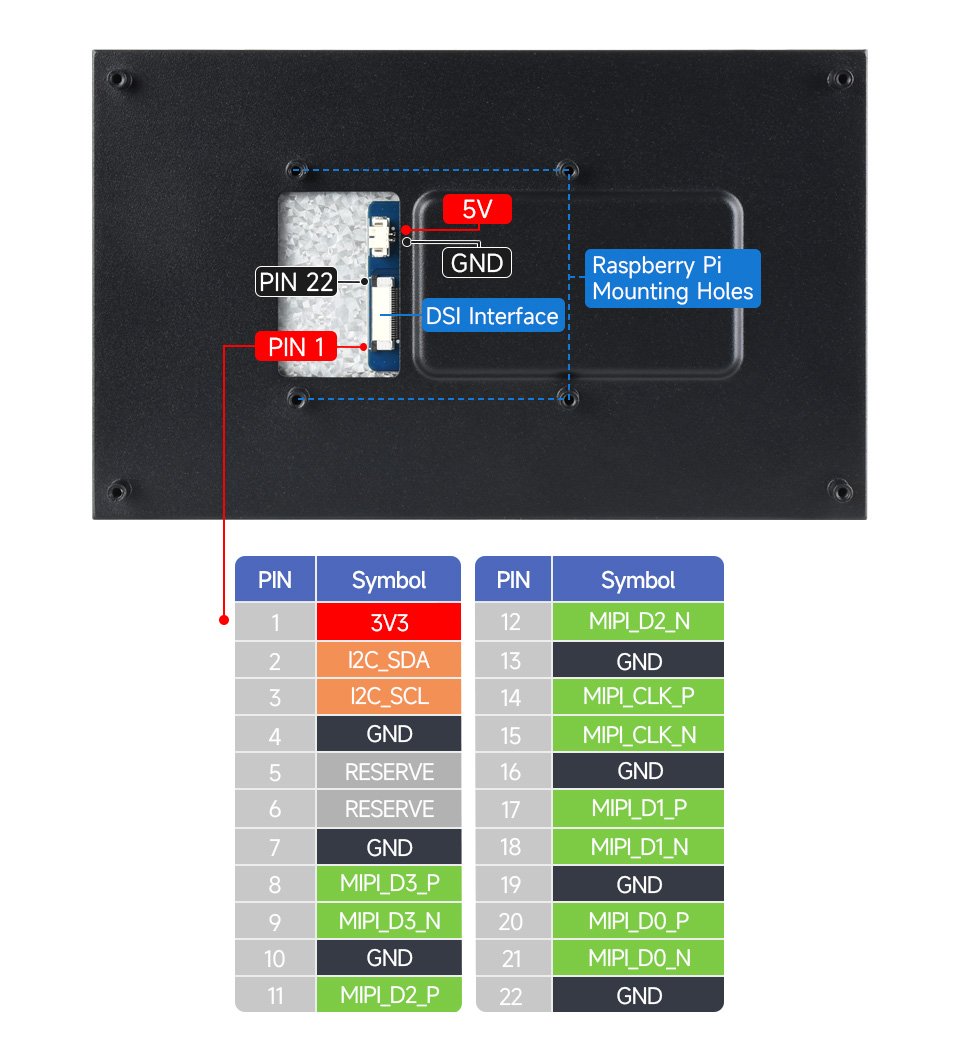

Interface definition

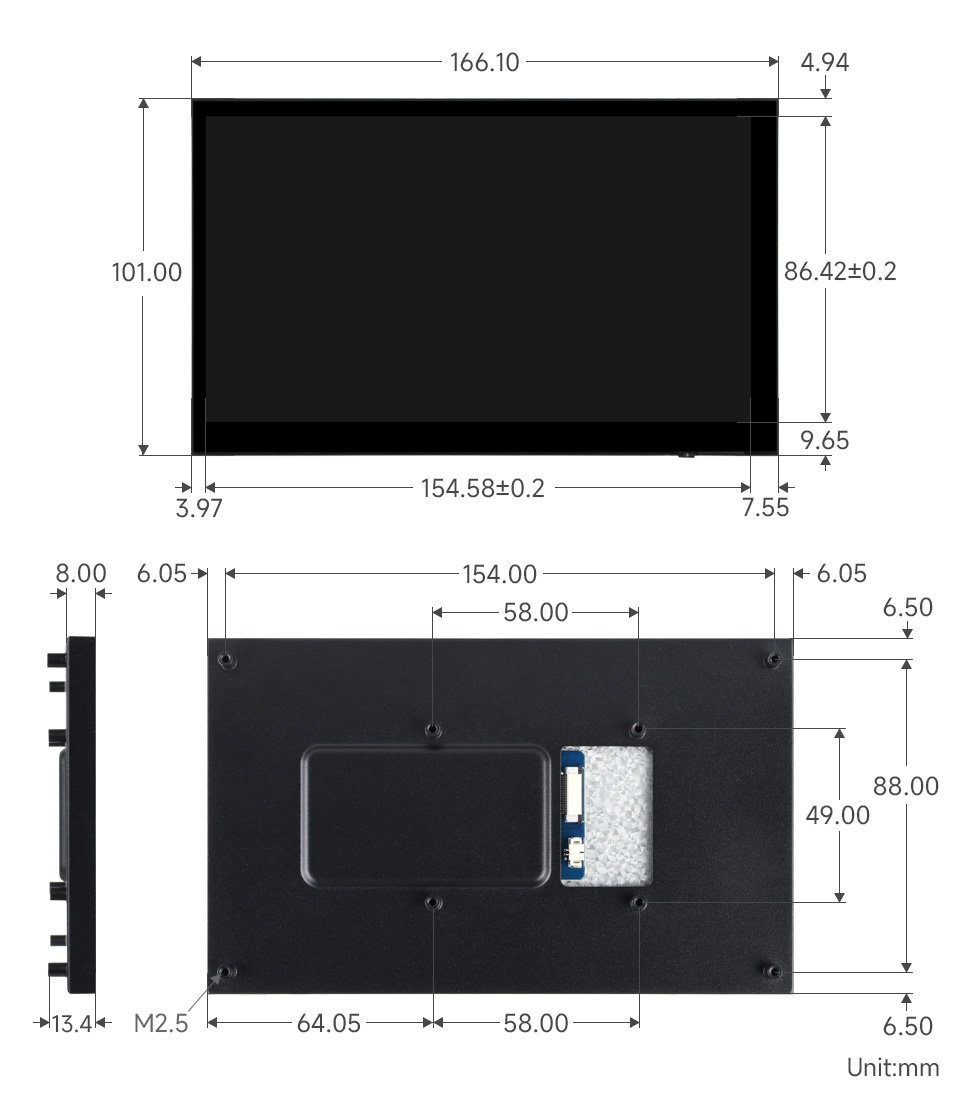

Dimensions
