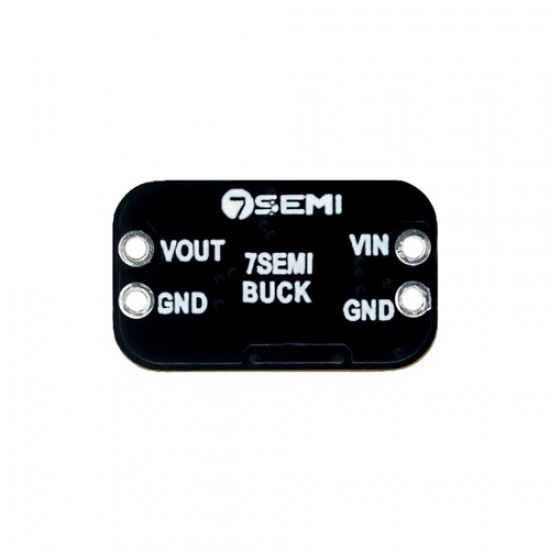

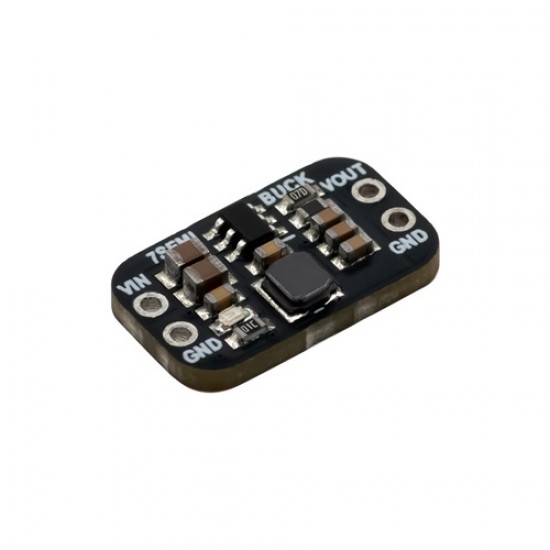

7Semi Buck converter, input 4.5V to 40V | Output 3.3V 600mA
Features
- Wide 4.5V to 40V DC input range
- Fixed, regulated 3.3V DC output
- Up to 600mA continuous output current
- Efficient synchronous step-down architecture
- Integrated high-side and low-side power MOSFETs
- Pulse-Frequency Modulation for improved light-load efficiency
Specifications
- Category of product: Synchronous Buck converters
- Operating Temperature:-40 to +85 °C
- Operating input Voltage:4.5V to 40V DC
- Output voltage: Fixed 3.3V DC
- Output current: 600mA
- Switching frequncy: 2MHz

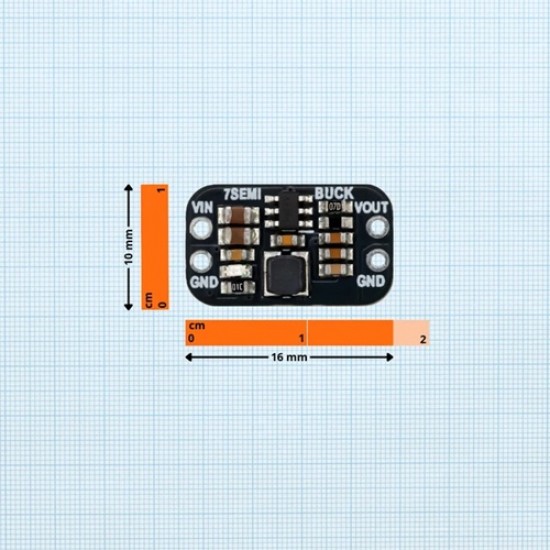

- Dimension: 16mm x 10mm x 2.97mm
Package Includes
- 1x 7Semi Buck converter, input 4.5V to 40V | Output 3.3V 600mA
