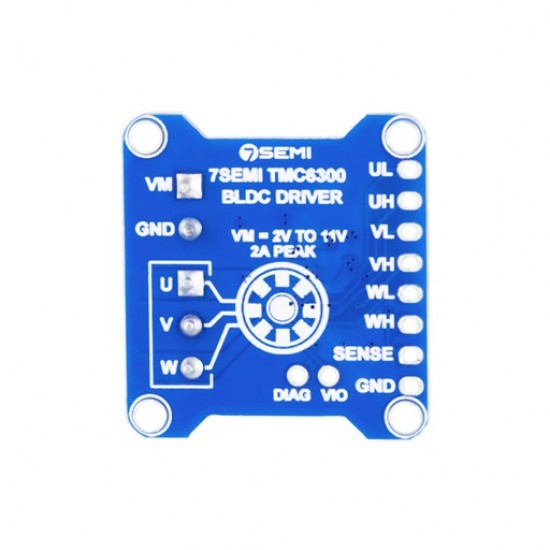

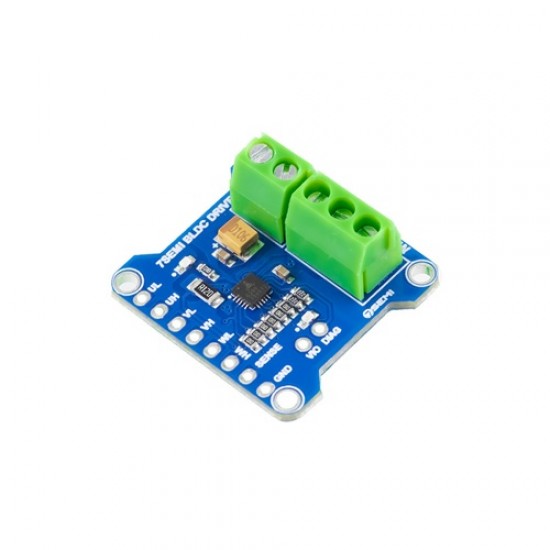

7Semi 3-Phase BLDC Motor Driver Breakout – 2V–11V Input, 3-Phase Motor Control

The 7Semi 3-Phase BLDC Motor Driver Breakout is a compact module designed to control 3-phase brushless motors smoothly and efficiently. It works with low input voltage from 2V to 11V, making it suitable for battery-powered applications. The module allows precise control of motor speed and direction using multiple PWM signals, helping achieve smooth and stable motor movement. Its small size makes it easy to use in compact projects, while built-in safety features ensure reliable operation. This driver is ideal for drones, small robots, gimbals, and other projects that use brushless motors.

Datasheet

Features

3-Phase Motor Control: Designed for BLDC and PMSM motors.
Low Voltage Operation: Works from 2V to 11V input.
Precise Control: Supports PWM signals for smooth speed and motion control.
Compact Design: Small size for easy use in tight spaces.
Built-in Protection: Includes temperature and short-circuit protection.
Diagnostic Output: Helps detect faults and monitor system status.
Easy Integration: Simple connections for quick setup in projects.

Specifications

CONTINOUS CURRENT:1.2A
PEAK OUTPUT CURRENT:2A
VOLTAGE REQUIRED (V):5V
OPERATIONAL TEMPRATURE:–40°C to +70°C

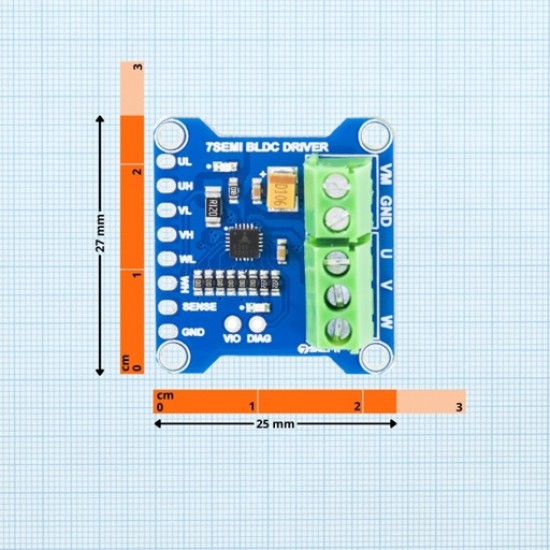

DIMENSION IN mm:L=27mm W= 25mm H=10.42mm

Package Includes

1x 7Semi 3-Phase BLDC Motor Driver Breakout – 2V–11V Input, 3-Phase Motor Control
