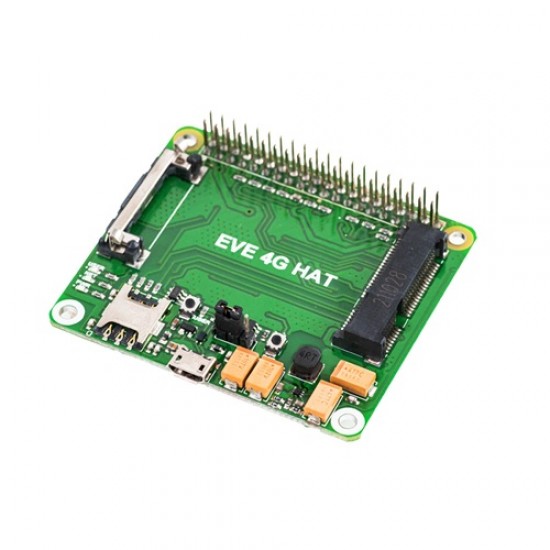

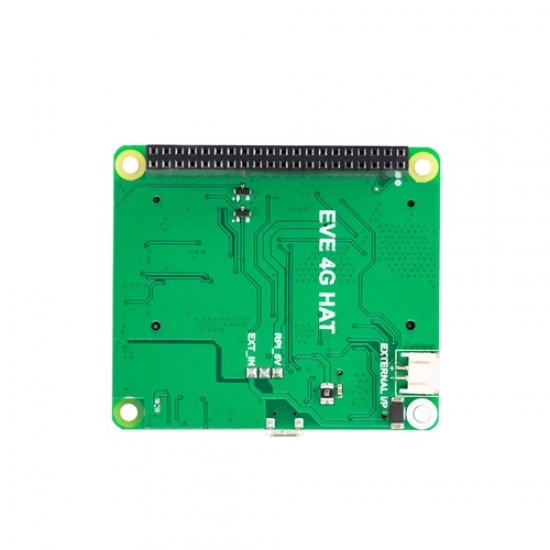

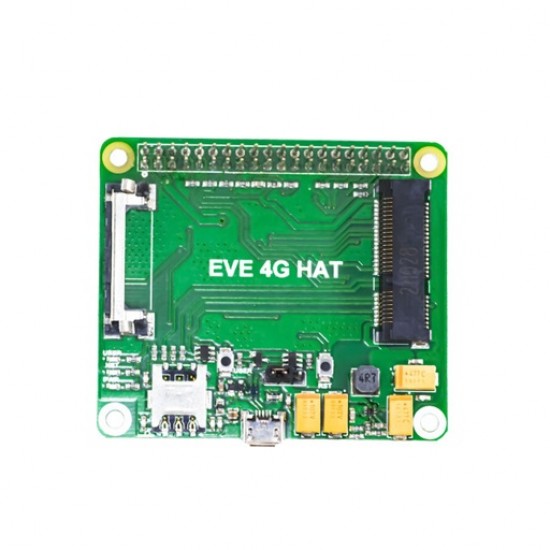

7Semi 4G LTE Raspberry Pi HAT with miniPCIe Slot
The Raspberry Pi 4G LTE HAT with miniPCIe Slot, the ultimate interface bridge between miniPCIe cellular modems and your remote devices. With support for all nano SIM cards, this HAT enables high-bandwidth cellular connectivity on your Raspberry Pi or 40-pin Pi compatible board.
This HAT supports a wide range of mini PCIe cards, from low-power consumption LTE-M to ultra-high-speed LTE-Advanced, making it the perfect solution for all your cellular connectivity needs. Plus, with both UART and USB communication options, this HAT provides maximum flexibility for your projects.
Whether you need to stay connected while on the move or require high-speed internet access in remote locations, the Raspberry Pi 4G LTE HAT with miniPCIe Slot has got you covered. Its compact and lightweight design makes it easy to carry with you wherever you go, while its plug-and-play design allows for quick and easy installation without any complicated setup or configuration.
This HAT is perfect for a wide range of applications, including remote monitoring, industrial automation, and IoT projects. So why wait? Get your hands on the Raspberry Pi 4G LTE HAT with miniPCIe Slot today and experience the ultimate in high-bandwidth cellular connectivity for your remote devices!
This add-on board can be used for Raspberry Pi video streaming or high-speed data transferring, remote controllable LTE Wi-Fi Hotspot, high-speed GPS tracking etc.

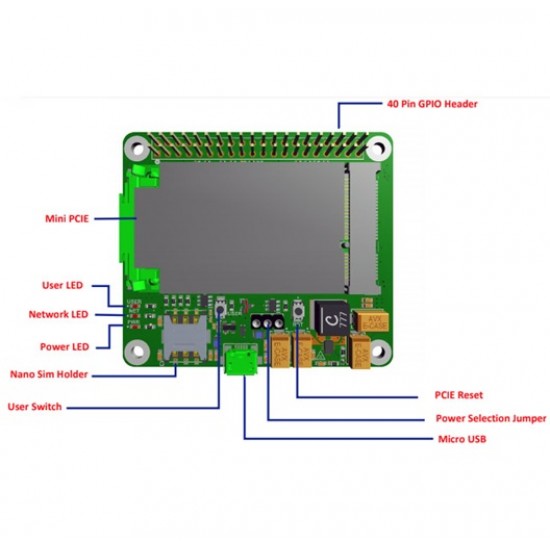

Features
- Fully compatible with Raspberry Pi models that have the 40-pin GPIO header (4, 3, 2, B+, A+, Zero).
- Supports any Nano sim.
- High-efficiency power regulation.
- Clip-in Mini PCIe socket compatible with worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage with regional or global modules which work with different frequencies & carriers.
- With the 4G/LTE Module(e.g Quectel EC25) you can reach 150Mbps downlink and 50Mbps uplink data rates. And the 3G Module( e.g Quectel UC20) delivers the maximum data rate of 14.4Mbps downlink and 5.76Mbps uplink.
- Can be used standalone with PC/Laptop over micro USB, without stacking with Raspberry Pi.
- Optional Send/Receive AT commands over Raspberry Pi UART port is available
- Taking the module into the Airplane Mode, resetting module or RI and DTR functions can be accessible over GPIO pins.
- The power of the whole board electronics can be disabled for low-power consumption use cases
- The modules(EC25 & UC20) have built-in GNSS(GPS/GLONASS) receiver for your location-based applications.
- Working temperature range: -40C ~ 80C.
Package Includes
- 1x 7Semi 4G LTE Raspberry Pi HAT with miniPCIe Slot
