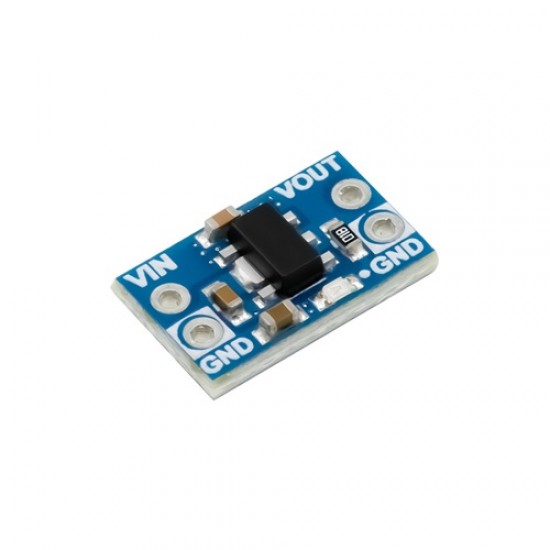

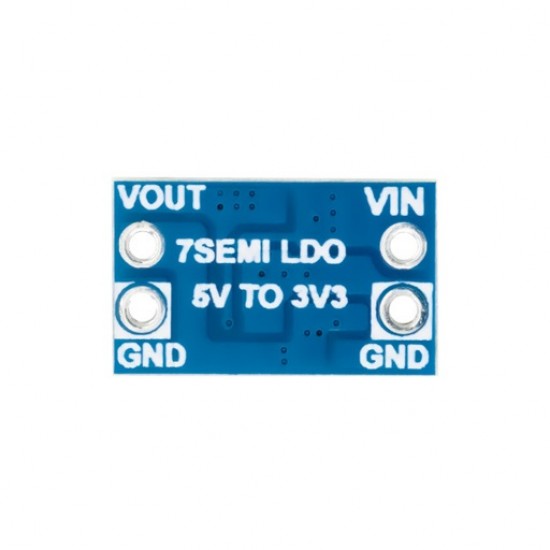

7Semi 5V to 3.3V 1A LDO Low Dropout Regulator Breakout with ENABLE

The 7Semi 5V to 3.3V 1A LDO Low Dropout Regulator Breakout with ENABLE utilizes the Diodes Incorporated AP7361C-33Y5-13, delivering a stable 3.3V output at up to 1A with an ultra-low dropout voltage of 360mV at full load. It features high Power Supply Rejection Ratio (PSRR) of 75dB at 1kHz, low quiescent current of 60µA, and includes current limiting and short circuit protection, making it ideal for reliable voltage regulation in various electronic applications.




Features

  • Wide Input Voltage Range:
    • Handles inputs from 2.2V to 6.0V, making it versatile for various power sources.
  • Output Voltage Accuracy:
    • Maintains a precise output with an accuracy of ±1%.
  • Very Low Dropout Voltage:
    • Features a 360mV dropout voltage at 1A, ensuring efficient operation.
  • Low Quiescent Current:
    • Consumes only 60µA, making it ideal for battery-powered applications.
  • High Power Supply Rejection Ratio (PSRR):
    • Offers 75dB at 1kHz, ensuring minimal noise interference.
  • Current Limiting and Short Circuit Protection:
    • Includes a 1.5A current limit with fold-back and 400mA short circuit protection, providing robust safety features.


Specifications

  • Category of product: LDO Step down Power module
  • Operating Voltage: 5V
  • Operating Temperature: -40°C TO 80°C
  • Output Voltage: 3.3V
  • Output current rating:1A

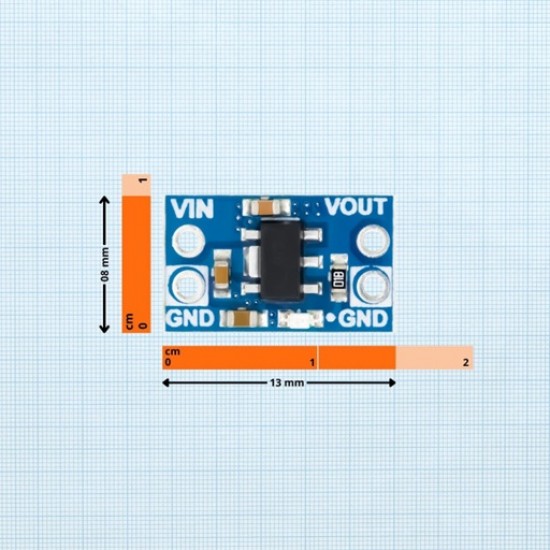

  • Dimensions in mm:L=13mm W=8mm H=3.12mm


Package Includes

  • 1x 7Semi 5V to 3.3V 1A LDO Low Dropout Regulator Breakout with ENABLE
