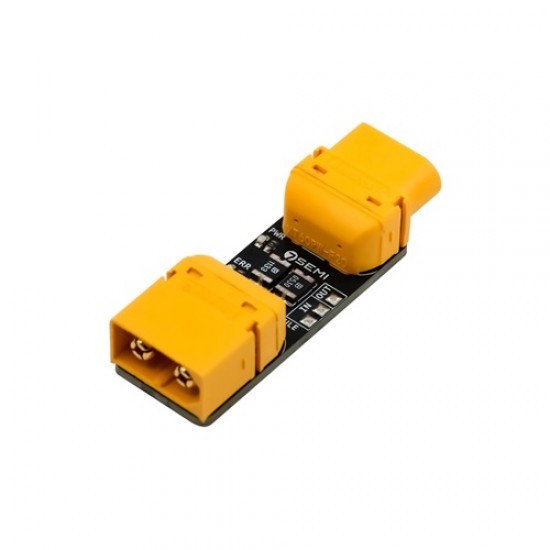

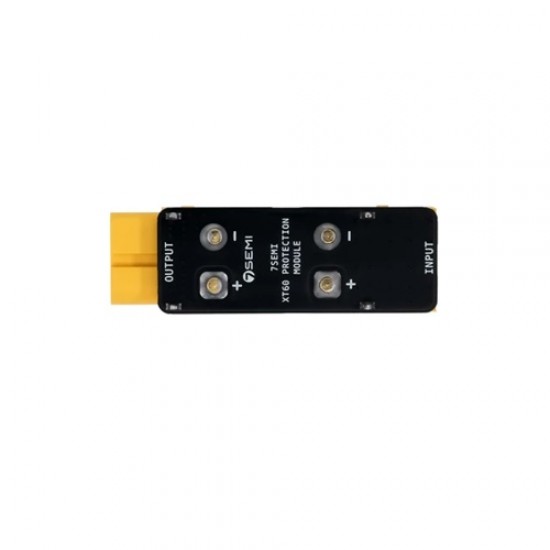

7Semi Amass XT60 Smoke Stopper Short Circuit Tester
The 7Semi Amass XT60 Smoke Stopper is a compact protection and circuit-testing module designed for the first power-up of FPV drones, RC vehicles, robotics systems, and other battery-powered electronics. Installed between an XT60-equipped battery and the device under test, it limits fault current during short circuits and wiring mistakes, helping reduce the risk of damage to ESCs, flight controllers, receivers, power-distribution boards, and other connected electronics.
The module uses two resettable PPTC protection devices rated at 0.5A and 1.1A and automatically recovers after an overcurrent condition is removed and the protection devices cool down. Integrated PWR and ERR LEDs provide visual operating and fault indication, while XT60 male and female connectors enable plug-and-play connection without additional wiring. The module operates from 3–33V DC and is specified for 3S–6S LiPo battery systems.
Features
- First Power-Up Protection: Helps protect newly assembled electronics during initial battery connection
- Short-Circuit Protection: Limits current during wiring faults and accidental short circuits
- Dual PPTC Protection: Integrates 0.5A and 1.1A resettable PPTC protection devices
- Automatic Reset: PPTC devices recover after the fault is removed and they cool down
- Reverse-Polarity Protection: Helps reduce the risk of damage from incorrect battery connection
- Wide DC Input Range: Supports 3–33V DC operation
- LiPo Compatibility: Designed for 3S–6S LiPo battery systems

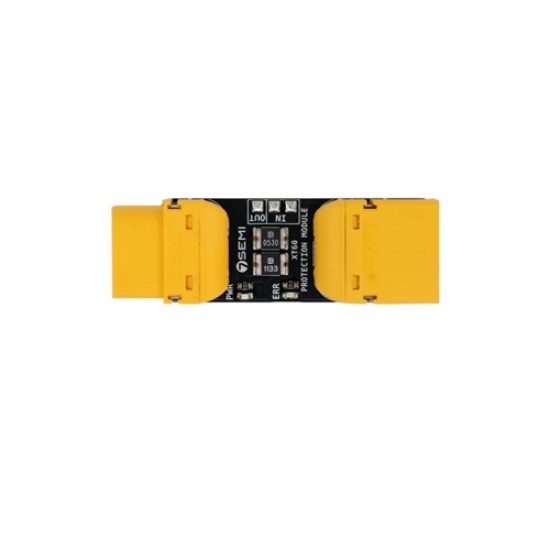

- Power Indicator: PWR LED provides visual power-status indication
- Fault Indicator: ERR LED helps identify abnormal connection conditions

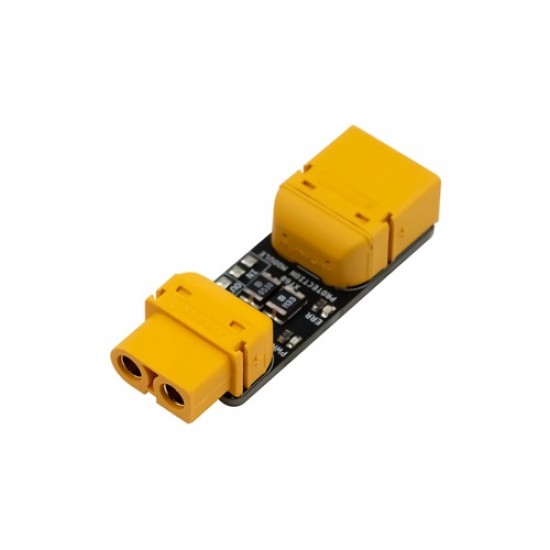

- XT60 Connectivity: Integrated XT60 male and XT60 female connectors
- Plug-and-Play Design: Installs directly between the battery and device under test
- No Disposable Fuse: Resettable PPTCs eliminate routine fuse replacement after recoverable overcurrent events
- Wide Temperature Range: Operates from -40 C to +75 C
- Compact Construction: 48.0 × 14.0 × 23.56 mm form factor
Specifications
- Category of Product: Fuse Protection Module
- Operating Voltage: 3V - 33V DC
- Operational Temperature in C: -40C to 75C
- Fuse Current Rating: 0.5A & 1.1A
- Battery Supported: 3S - 6S LiPo battery
- Dimension in mm: 48mmx14mmx23.56mm
Applications
- FPV drone first power-up
- RC aircraft testing
- RC car electronics
- Flight-controller installation
- ESC and motor-system testing
- Power-distribution board testing
- Robotics development
- Custom LiPo-powered electronics
- Wiring fault diagnosis
- Prototype power testing
- DIY electronics
- Battery-powered embedded systems
Package Includes
- 1x 7Semi Amass XT60 Smoke Stopper Short Circuit Tester
