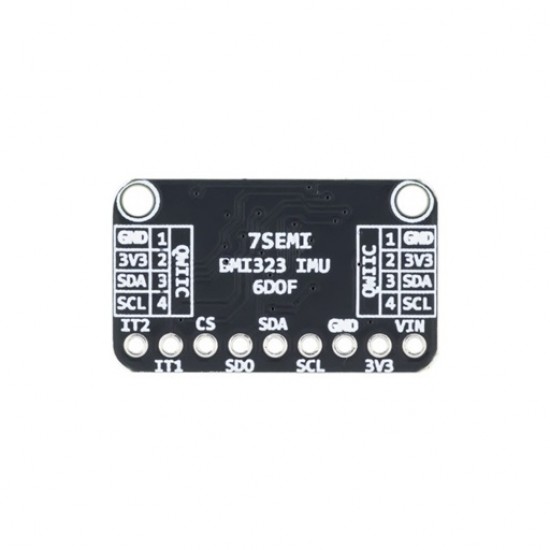

7Semi BMI323 IMU Breakout Board – 6DOF Accelerometer + Gyroscope with Qwiic Support (SPI/I2C)
Features
- 6DOF Motion Tracking – 3-axis accelerometer + 3-axis gyroscope
- Ultra-Low Power Operation with configurable power modes
- Built-in Features: Step counting, tap detection, auto low-power switching
- Dual Interface Support: I²C (up to 1MHz), SPI (up to 10MHz)
- Configurable Interrupts: INT1, INT2 pins for motion events

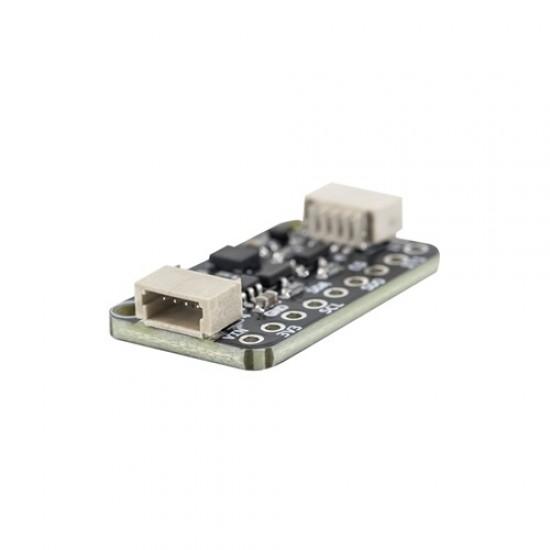

- Qwiic-Compatible Connectors – Plug-and-play for rapid prototyping
Specifications
- Sensor IC: Bosch BMI323
- Acceleration Range: ±2g, ±4g, ±8g, ±16g
- Gyroscope Range: ±125°/s, ±250°/s, ±500°/s, ±1000°/s, ±2000°/s
- Interface: I²C, SPI
- I²C Address: 0x69 (default)
- Voltage Input:3.3V - 5V
- Operating Temperature:-40°C to +85°C

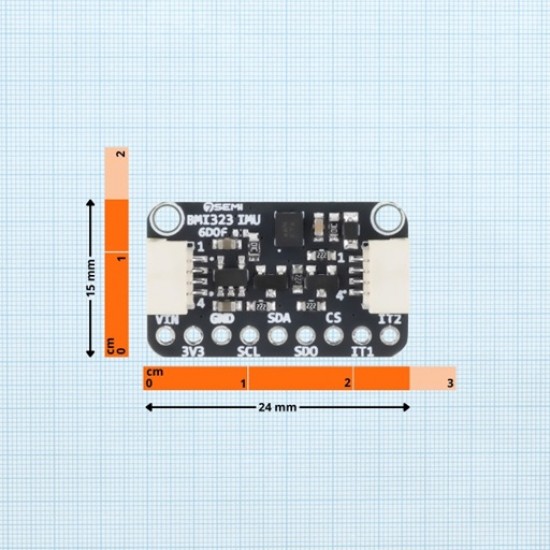

- Board Size: 24mm × 15mm
- Board Weight: 2g
Package Includes
- 1x 7Semi BMI323 IMU Breakout Board – 6DOF Accelerometer + Gyroscope with Qwiic Support (SPI/I2C)
