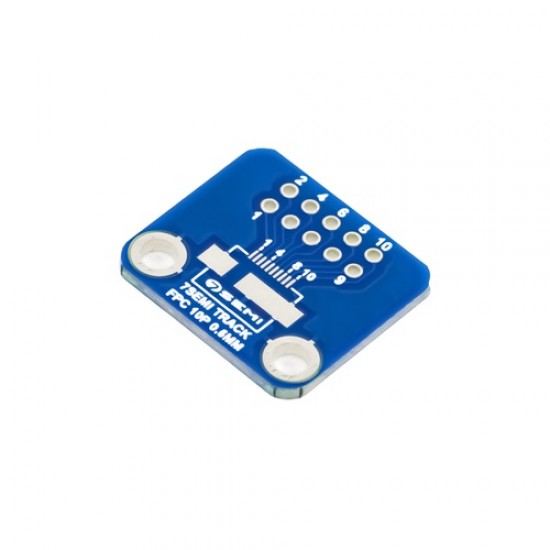

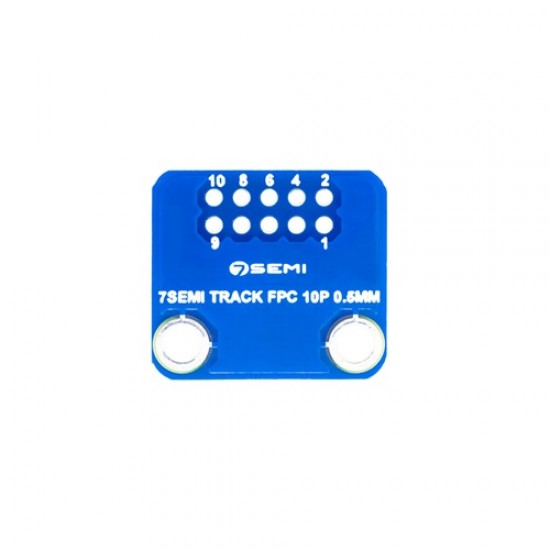

7Semi FFC FPC 10 Pin Adapter Board PCB 0.5mm
Looking for a reliable and efficient solution to prototype your FPC FFC 10 pin circuit design? The FFC FPC 10 Pin Adapter Board PCB is designed to simplify and speed up the prototyping process, making it an essential tool for both hobbyists and professionals.
With a pin spacing of 0.5mm, this adapter board aligns seamlessly with breadboards, making it easy to use and integrate into your projects. The pins are clearly labeled for easy identification, and the traces lead to double rows of 0.1" spaced holes, making it simple to connect your components.
The 7Semi FFC FPC 10 Pin Adapter Board PCB features 2 SMD mounting PAD FEC FPC connectors, ensuring a secure and stable connection for your FPC FFC 10 pin circuit design.
Features
- Speeds up prototyping process
- Designed as a DIP adapter for FPC FFC 10, 8, 6 and 4 pin with 0.5mm Pitch
- Out pins with traces going to double rows of 0.1" spaced holes
- Mounting through holes connected with 2 SMD mounting PAD FEC FPC connector
- Compatible pin spacing for breadboard use
- Easily identifiable pin numbers
Specifications
- Product category: SMD To DIP adapter board
- No of Pins: 10 pin with pitch 2.54mm

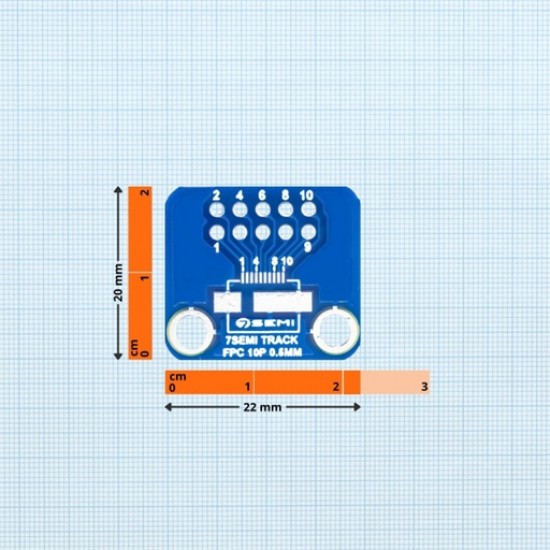

- Dimension of product: L=22mm W=20mm H=3.69mm
Package Includes
- 1x 7Semi FFC FPC 10 Pin Adapter Board PCB 0.5mm
