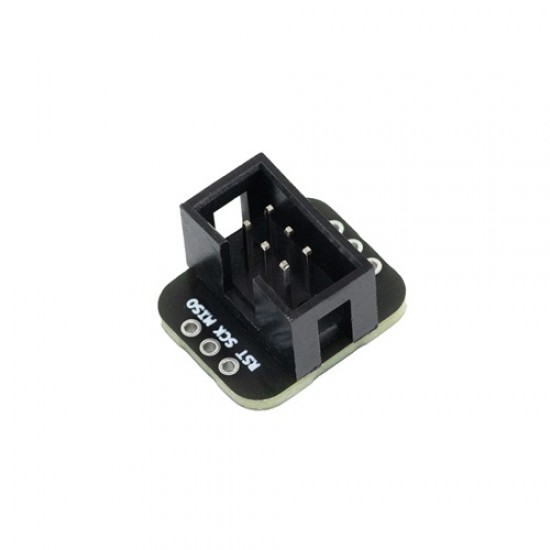

7Semi ISP Plug-in Adapter Board - 2.54mm 3x2 6-Pin Male Header
ISP Plug-in Adapter Board – 2.54mm 3x2 6-Pin Male Header: Reliable ISP Interface for AVR Programming
The 7Semi ISP Plug-in Adapter Board is a compact and dependable module designed for connecting programmers to target microcontroller boards through the standard 6-pin ISP (In-System Programming) interface. Featuring a 2.54mm pitch 3x2 male header, this adapter ensures precise and stable connections for seamless firmware flashing, bootloader programming, and debugging. It is fully compatible with popular AVR programmers such as USBasp, USBtinyISP, and AVR ISP.
Built with durable PCB material and clear silkscreen labeling, the adapter supports both 3.3V and 5V targets, making it versatile for a wide range of applications in embedded systems, academic learning, and production environments. Its simple plug-in design helps developers and engineers quickly establish reliable ISP connections during prototyping and testing.
Features
- Standard 6-Pin ISP Pinout: Includes VCC, GND, MISO, MOSI, SCK, and RST for compatibility with various programmers.
- 2.54mm Pitch Header: Suitable for breadboards and quick integration into prototype setups.
- 3x2 IDC Layout: Works seamlessly with USBasp, USBtinyISP, AVR ISP, and similar programmers.
- Durable PCB Construction: Professionally manufactured board with clear labeling for accurate pin connections.
- Voltage Compatibility: Supports both 3.3V and 5V targets based on programmer configuration.
Specifications
- Interface Type: 6-Pin AVR ISP (2x3 IDC header)

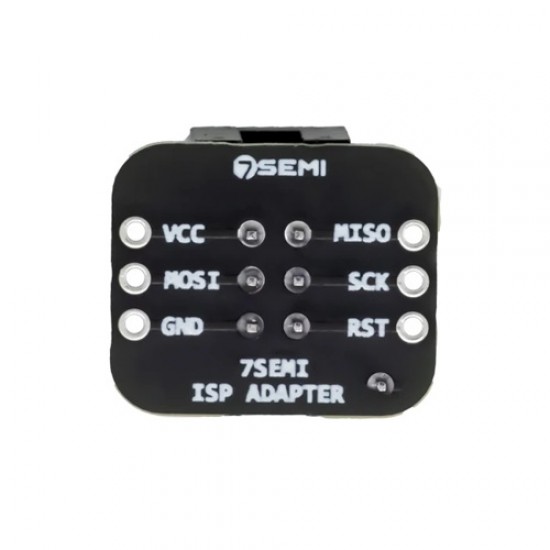

- Pinout: VCC, GND, MISO, MOSI, SCK, RST
- Compatible Programmers: USBasp, USBtinyISP, AVR ISP MkII
- Pitch: 2.54mm (0.1 inch)

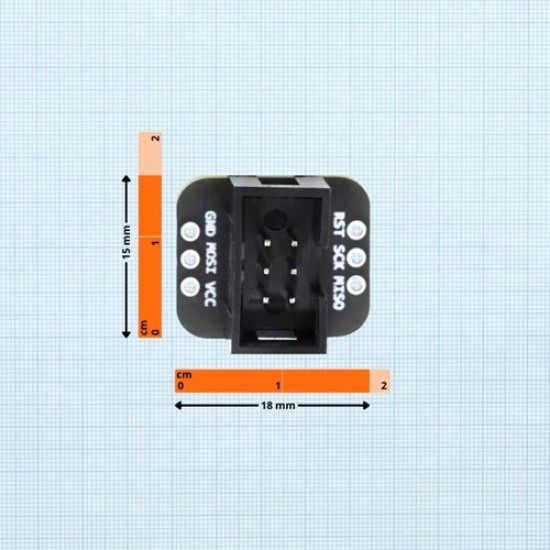

- Board Dimensions: Approx. 18mm x 20mm
- Operating Voltage: 3.3V / 5V (pass-through from ISP)
Package Includes
- 1x 7Semi ISP Plug-in Adapter Board - 2.54mm 3x2 6-Pin Male Header
