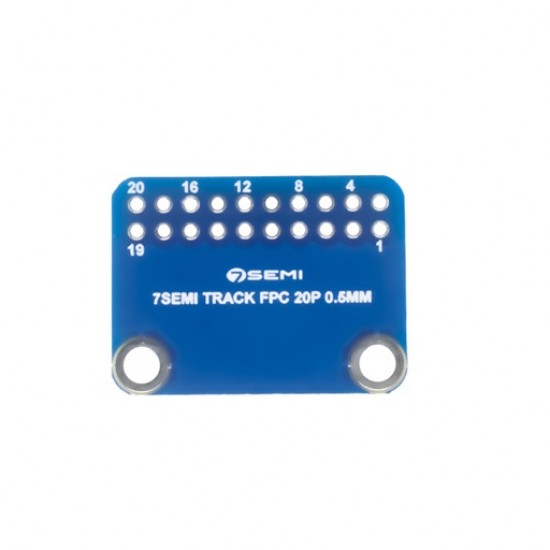

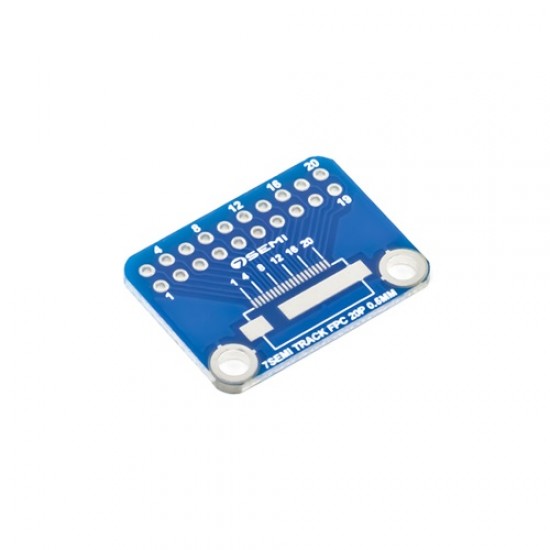

7Semi FFC FPC 20 Pin Adapter Board PCB 0.5mm
The 7Semi FFC FPC 20 Pin Adapter Board PCB is an ideal solution with its advanced design and 0.5mm pitch, designed to save time and enhance productivity.
This breakout board comes with a specialized DIP adapter designed for FPC FFC 20 pin to 12 pin, featuring a 0.5mm pitch, transforming the prototyping experience. The pins are easily identifiable, and traces connect to double rows of 0.1" spaced holes, making it quick and simple to create prototypes.
The through holes are connected to 2 SMD mounting PAD FEC FPC connectors, ensuring the board's strength and dependability. Moreover, the pin spacing aligns with breadboards, allowing for easy integration into your existing setup.
Features
- Speeds up prototyping process
- Designed as a DIP adapter for FPC FFC 20 pin to 12 pin with 0.5mm Pitch
- Out pins with traces going to double rows of 0.1" spaced holes
- Mounting through holes connected with 2 SMD mounting PAD FEC FPC connector
- Compatible pin spacing for breadboard use
- Easily identifiable pin numbers
Specifications
- Product type: SMD to DIP adapters 0.5mm pitch
- Pin number: 20 Pin with pitch of 2.54mm

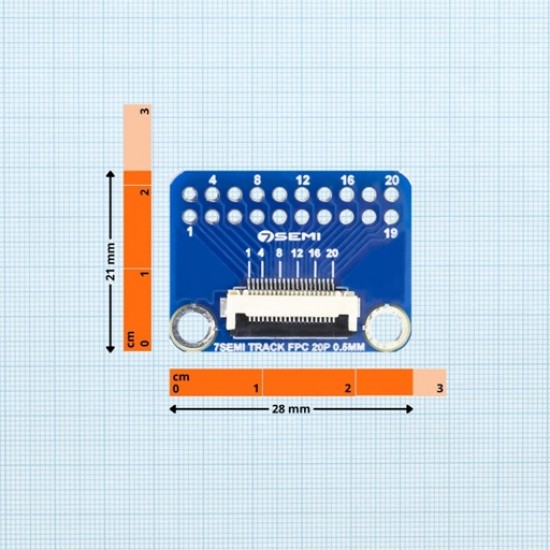

- Dimension in mm: 21mm x 28mm x 1.6mm
Package Includes
- 1x 7Semi FFC FPC 20 Pin Adapter Board PCB 0.5mm
