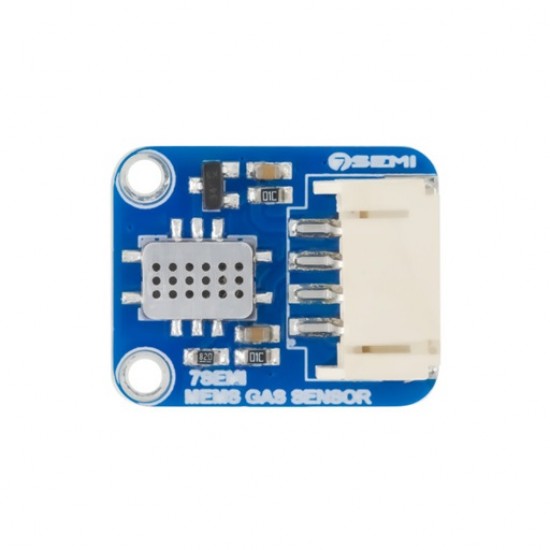

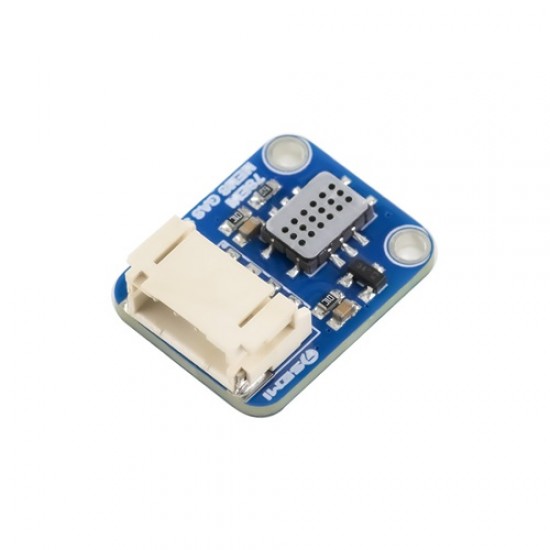

7Semi MiCS5524 CO, Alcohol and VOC MEMS Gas Sensor Breakout
7Semi MiCS5524 CO, Alcohol, and VOC MEMS Gas Sensor Breakout: Reliable Gas Detection for Experiments and Air Quality Monitoring
Enhance gas detection capabilities with the 7Semi MiCS5524 CO, Alcohol, and VOC MEMS Gas Sensor Breakout, designed for precise measurement of various gases, including carbon monoxide (CO), ethanol (C2H5OH), hydrogen (H2), methane (CH4), and ammonia (NH3). This compact and high-precision sensor, powered by MEMS technology, delivers accurate results, making it an excellent choice for air quality assessments, gas leakage detection, and educational research projects.
With seamless integration options, this breakout board features a 4-pin 2mm pitch JST connector, allowing hassle-free connection to microcontrollers. Supporting both analog and I2C digital outputs, it is compatible with a wide range of 4.9V to 5.1V master controllers. The low-power design includes an enable/disable function to optimize energy consumption. While ideal for experimentation and learning purposes, this sensor requires calibration for accurate readings and is not intended for medical or safety-critical applications.
Features
- Comprehensive Gas Detection: Detects CO (1-1000 ppm), ethanol (10-500 ppm), hydrogen (1-1000 ppm), and other volatile gases for diverse applications.
- Advanced MEMS Technology: Delivers high sensitivity and reliability for precise gas concentration measurements.

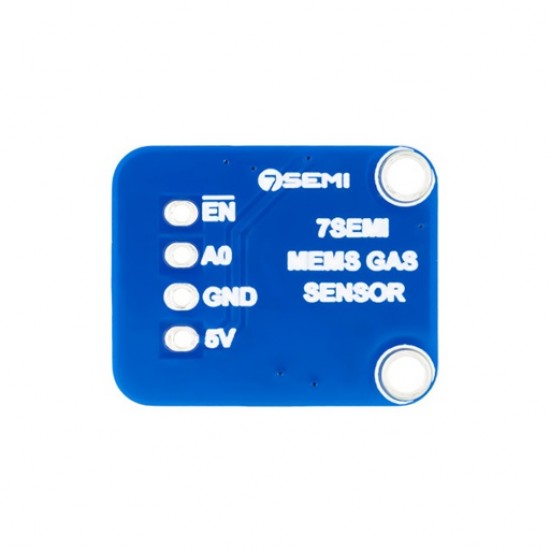

- Effortless Connectivity: Equipped with a 4-pin 2mm pitch JST connector for easy interfacing with microcontrollers.
- Energy-Efficient Operation: Low power consumption with a heater current draw of just 25-35 mA, plus an EN pin for power-saving control.
- Flexible Output Options: Supports both I2C and analog output, ensuring seamless integration into various electronic systems.
- Preconfigured Data Support: Includes sample code with gas concentration conversion formulas, simplifying testing and implementation.
Specifications
- Operating Voltage: 5V
- Dimension: 19.95x15.94 mm
- Operating Temperature:-30 to +85°C
Applications
- Indoor air quality monitoring
- Detection of natural gas leaks
- Research and educational experiments
- Breath alcohol measurement
- Early fire detection systems
Package Includes
- 1x 7Semi MiCS5524 CO, Alcohol and VOC MEMS Gas Sensor Breakout
