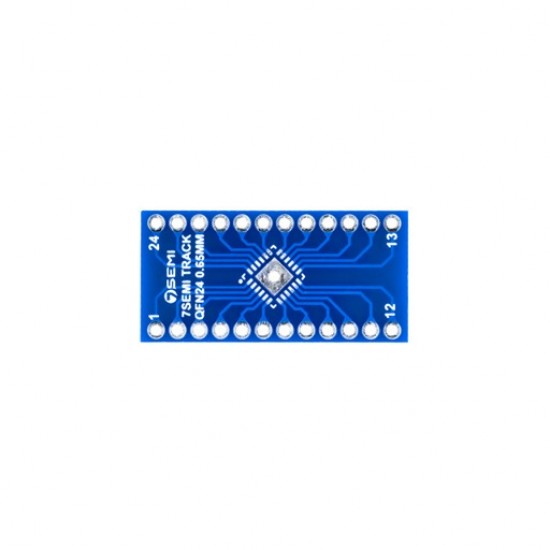

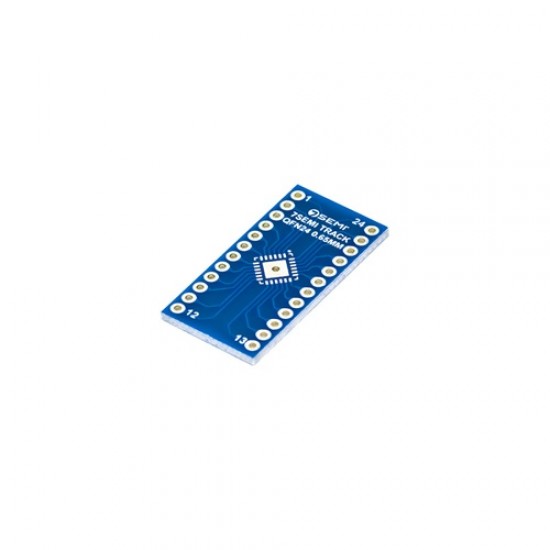

7Semi QFN24 0.5mm QFN24 0.65mm Breakout Adapter PCB
The Breakout PCB for 7Semi QFN24 0.5mm and 0.65mm presents a convenient and effective solution for handling small surface-mount device (SMD) packages commonly encountered in electronic devices. Tailored as a DIP adapter exclusively for QFN24 packages with 0.5mm and 0.65mm pitch, this breakout board is meticulously crafted to simplify the prototyping process.
Designed with the user in mind, this breakout PCB transforms the SMD package into a more user-friendly DIP package, facilitating seamless integration with standard prototyping tools. The breakout board exposes the pins of the SMD package on its surface, featuring traces leading to two rows of 0.1" spaced holes. This intelligent design ensures effortless connectivity to breadboards or other prototyping tools, enabling swift testing and development of circuit designs.
The breakout PCB's pin spacing aligns perfectly with breadboards, ensuring a smooth integration into your prototyping setup. Furthermore, the breakout board clearly marks pin numbers and Pin 1, making it easy to identify and connect without any complications. The well-thought-out layout of the breakout board ensures that the pins are accurately aligned with traces leading to conveniently spaced holes, further streamlining the prototyping process.
For engineers and hobbyists involved in prototyping projects with SMD packages, this breakout PCB proves to be an indispensable tool. By improving the ease and efficiency of connecting SMD packages to breadboards or other prototyping tools, this breakout board becomes a valuable asset, saving time and enhancing overall productivity in your prototyping endeavors.
Features
- Pin Spacing is compatible with breadboard.
- Pin numbers and Pin 1 are easily identifiable.
- Pins are out with traces going to two rows of 0.1" spaced holes.
Specifications
- Type of product: SMD to DIP Adapter board
- No of Pins: 24 pin 0.65mm pitch

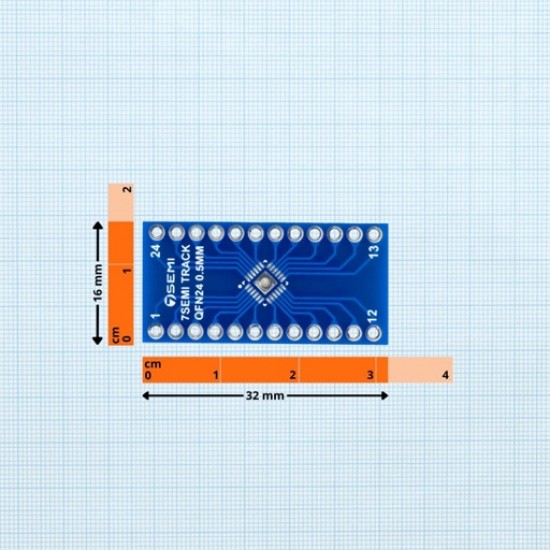

- Dimension: 32mm x 16mm x 1.6mm
Package Includes
- 1x 7Semi QFN24 0.5mm QFN24 0.65mm Breakout Adapter PCB
