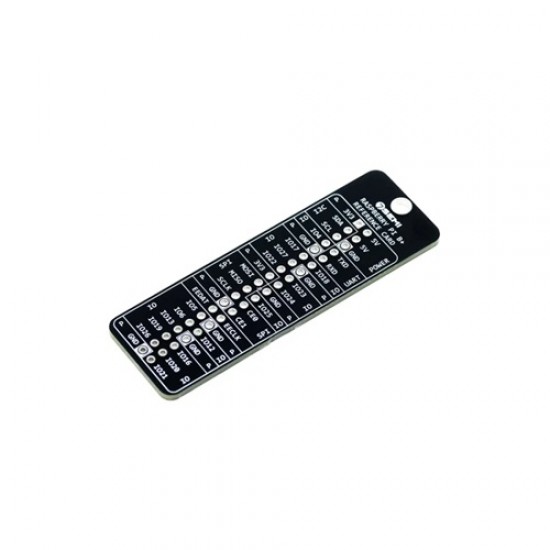

7Semi Raspberry Pi GPIO Reference Card - Pinout Guide
The 7Semi Raspberry Pi GPIO Reference Card is a compact and easy-to-use tool that helps you quickly understand and use Raspberry Pi pins. It shows clearly labeled GPIO pin names, power pins, SPI, I2C, UART, and other important connections, so you don’t have to check datasheets again and again. Its simple layout makes it very helpful for beginners as well as experienced users working on Raspberry Pi projects, prototyping, and debugging.
Features
- Complete GPIO Pinout: Clearly shows all Raspberry Pi GPIO pins and functions.
- Interface Labels: Includes SPI, I2C, UART, power, and ground pin details.
- Easy to Read Layout: Simple design for quick understanding and reference.
- Compact Size: Small and portable, easy to keep on your workbench.
- Beginner Friendly: Helps new users avoid wiring mistakes.
- Quick Debug Tool: Saves time during testing and troubleshooting.
- Durable PCB Design: Strong and long-lasting for daily use
Specifications

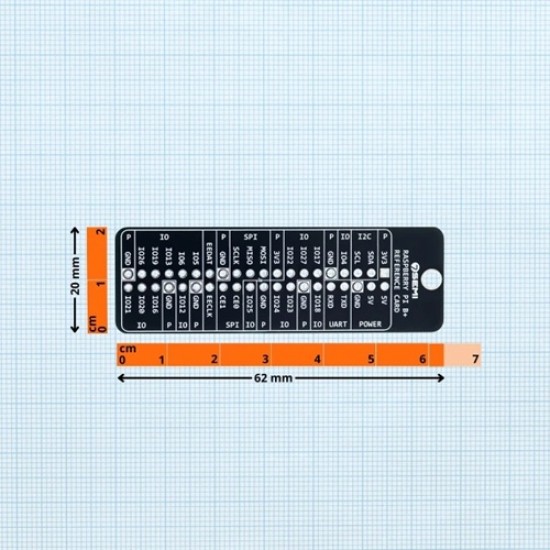

- Dimensions:62 x 20 x 1.6 mm
Package Includes
- 1x 7Semi Raspberry Pi GPIO Reference Card - Pinout Guide
