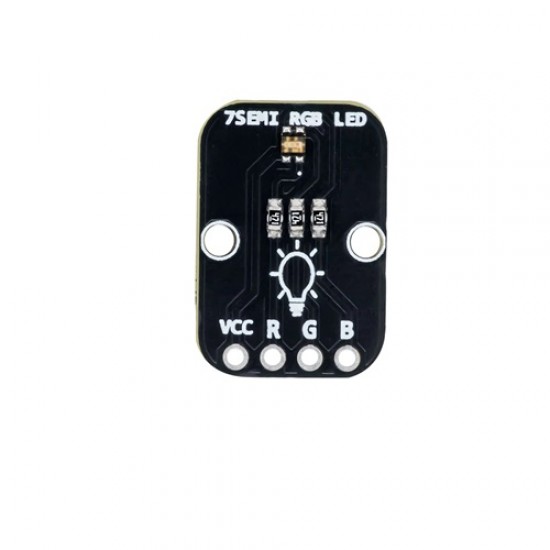

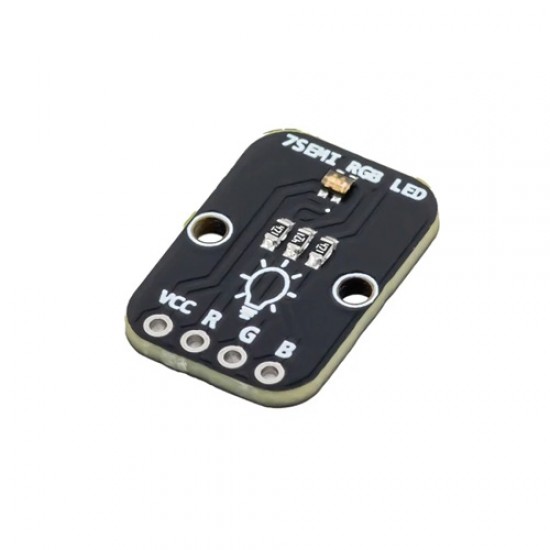

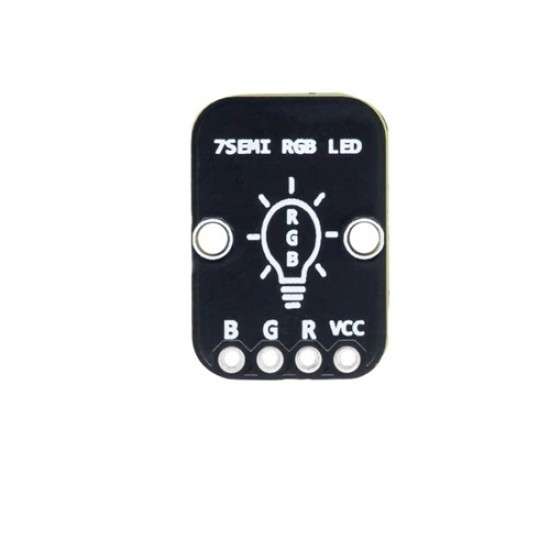

7Semi RGB LED Module (MPN:BO-10202)
The 7Semi RGB LED Module is a high-efficiency RGB indicator board based on the Everlight 19-037A/RSGHBHW1-S03/2T common cathode LED. Designed for simplicity and reliability, it offers bright color output with minimal footprint, making it ideal for beginners, educators, and embedded developers building colorful status indicators, displays, or interactive visual feedback in their projects.
This module integrates current-limiting resistors and clear silkscreen markings, allowing seamless integration with Arduino, ESP32, Raspberry Pi, or other microcontroller platforms using PWM or digital outputs.
Features
- Everlight 19-037A/RSGHBHW1-S03/2T RGB LED
- Common anode configuration
- On-board current-limiting resistors (150Ω typical)
- 3 individually controllable color channels: Red, Green, Blue
- Clearly labeled header pins: VCC, R, G, B
- Wide input voltage compatibility: 3.3V – 5V
- Breadboard-friendly and mountable PCB
- Compact and lightweight for embedded use
Applications
- LED status indicators
- Visual feedback in sensor systems
- User interface lighting
- RGB signaling in DIY electronics
- Arduino / Raspberry Pi color effects
Specifications
- LED Type: Everlight 19-037A/RSGHBHW1-S03/2T
- Configuration: Common Cathode
- Operating Voltage: 3.3V to 5V
- Color Channels: Red, Green, Blue
- Viewing Angle: 120° typical
- Interface: Digital or PWM GPIO
- Board Dimensions: 18mm x 12mm (approx.)
- Board weight: 1g
Package Includes
- 1x 7Semi RGB LED Module
