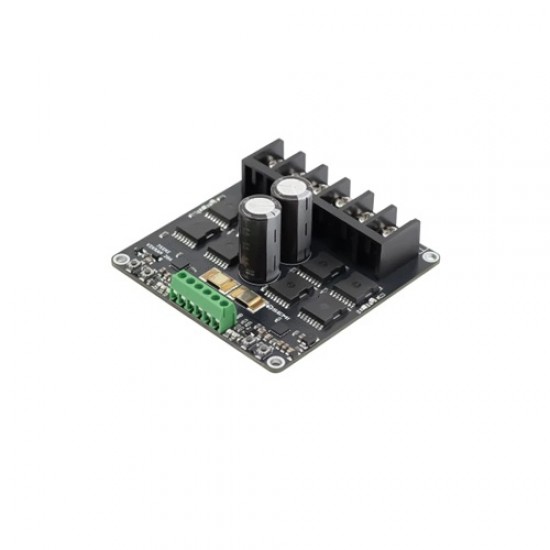

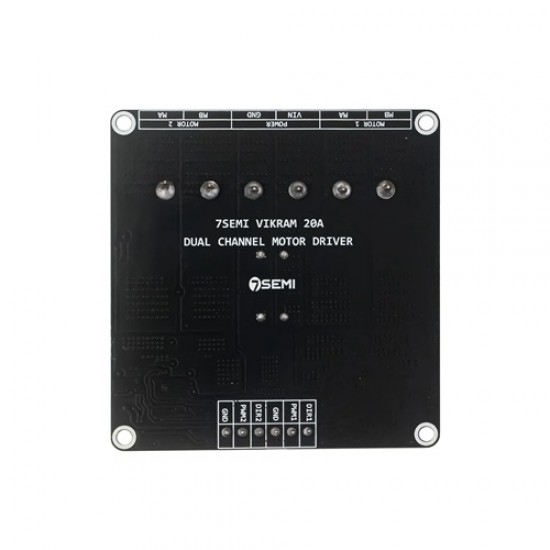

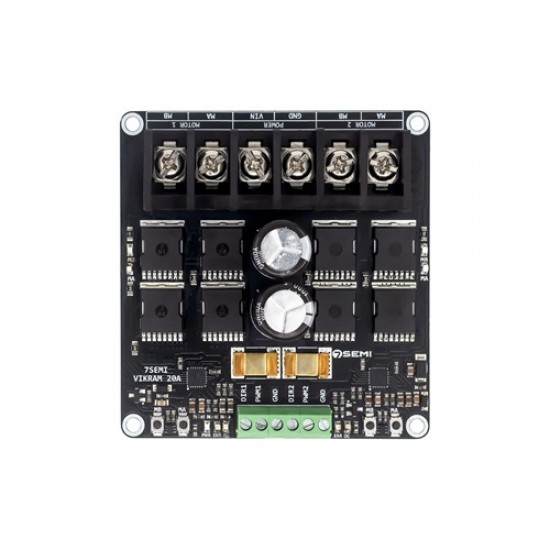

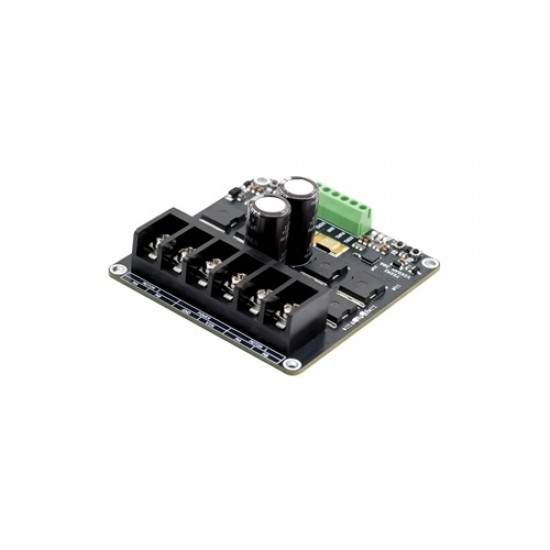

7Semi Vikram 3020D 7-32V 20A Dual-Channel Brushed DC Motor Driver
The 7Semi Vikram 3020D is a high-current dual-channel motor driver designed to independently control two brushed DC motors from a 7–32V DC motor supply. Each channel uses a discrete high-current H-bridge power stage and provides dedicated direction and PWM control, allowing independent adjustment of motor direction and speed. With up to 20A continuous current per channel, the module is suitable for differential-drive robots, automated guided vehicles, mobile robotic platforms, industrial actuators, and other demanding motion-control systems.
Each motor channel also supports short-duration peak currents up to 80A for a maximum of 1 second. The control interface accepts both 3.3V and 5V logic levels and supports PWM frequencies up to 20kHz, simplifying integration with Arduino, ESP32, STM32, RP2040, and other embedded controllers. Integrated overcurrent, overvoltage, VM undervoltage lockout, and thermal-shutdown functions help protect the power stage, with thermal shutdown specified at 120°C.
Features
- Dual Motor Channels: Independently controls 2 brushed DC motors
- High Continuous Current: Delivers up to 20A continuous current per channel
- High Peak Current: Supports up to 80A peak current per channel for a maximum of 1 second
- Wide Motor Supply Range: Operates from 7–32V DC
- Bidirectional Operation: Supports independent forward and reverse control for each motor
- Independent Speed Control: Dedicated PWM input for each motor channel
- Independent Direction Control: Separate DIR input for each channel
- 20kHz PWM: Supports PWM control frequencies up to 20kHz
- 3.3V/5V Logic Compatible: Interfaces with common microcontrollers and embedded controllers
- Discrete H-Bridge: High-current discrete power stage for each motor channel
- Overcurrent Protection: Helps protect the power stage during excessive current or output faults
- Overvoltage Protection: Provides protection against excessive motor-supply voltage
- VM Undervoltage Lockout: Prevents unstable operation when the motor supply is below the required level
- Thermal Shutdown: Disables motor operation at a 120°C thermal-shutdown threshold
- High-Current Connections: Designed for secure motor and power wiring
- Dual-Channel Design: Suitable for differential-drive and independently controlled motor systems
Specifications
- Category of Product: Dual Channel Motor Driver
- Operational Supply Voltage (VIN): 7V to 32V DC
- Current Rating (Continuous): 20A Each Channel
- Current Rating (Peak): 80A for each channel ,must not exceed 1 second
- Maximum PWM Frequency: 20kHz
- Thermal Shutdown Limit: 120 C
- Control Per Channel: Direction and PWM
- Logic Input: 3.3V & 5V DC
- Dimension in mm: 74mmx71mmx26.34mm
Applications
- Differential-drive robots
- Automated guided vehicles
- Mobile robotic platforms
- High-current brushed DC motor systems
- Industrial actuators
- Conveyor mechanisms
- Battery-powered vehicles
- Automated machinery
- Robotic drive systems
- Industrial automation
- Motion-control prototypes
- Dual-motor embedded systems
Package Includes
- 1x 7Semi Vikram 3020D 7-32V 20A Dual-Channel Brushed DC Motor Driver
