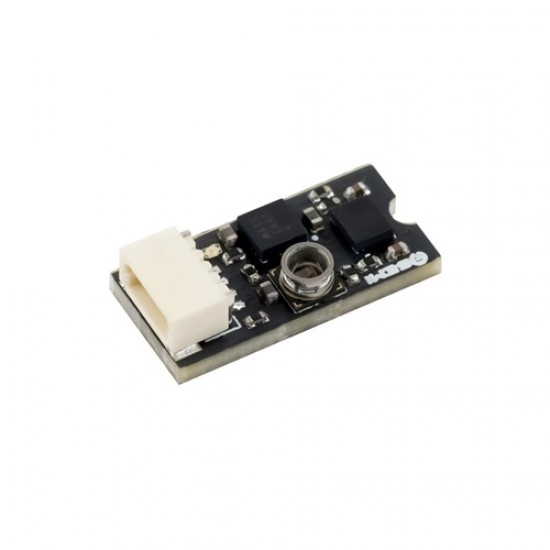

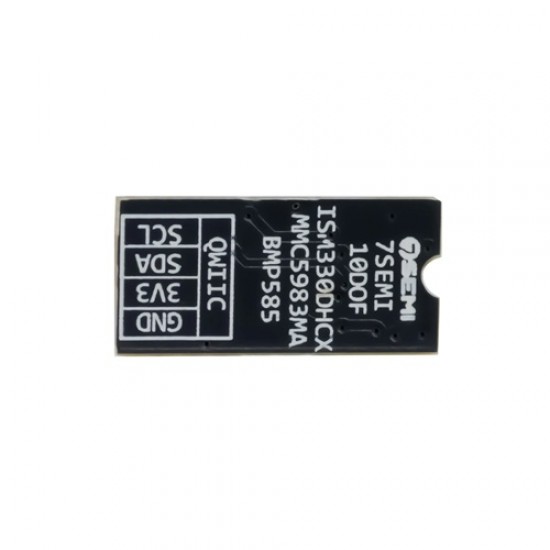

7Semi 10DOF Accelerometer, Gyroscope, Magnetometer & Pressure Sensor Module ISM330DHCX, MMC5983MA, BMP585
The 7Semi 10DOF Sensor Module is a compact multi-sensor board designed for motion, orientation, heading, altitude, and environmental sensing. It combines a 6-axis accelerometer and gyroscope, a 3-axis magnetometer, and a barometric pressure and temperature sensor on a single board. This allows the module to provide complete 10DOF sensing for navigation and motion-tracking applications. With I²C communication and SPI support where applicable, it can be easily integrated with microcontrollers and embedded systems. Its compact design makes it suitable for drones, robotics, navigation, sensor-fusion systems, motion tracking, and advanced IoT applications.
Features
- Complete 10DOF Sensing: Combines motion, rotation, direction, pressure, and temperature sensing in one compact module.
- Reliable Motion Tracking: Detects movement and rotation for navigation, robotics, and stabilization applications.
- Directional Sensing: Provides magnetic heading information for compass and orientation-based applications.
- Altitude Estimation: Uses barometric pressure data to support height and altitude monitoring.
- Sensor Fusion Ready: Multiple sensing functions can be combined for improved motion and orientation tracking.
- Flexible Communication: Supports I²C and compatible SPI interfaces for easy integration with embedded systems.
- Compact Breakout Design: Easy to add to drones, robots, prototypes, and IoT devices where space is limited.
Specifications
- Supply Voltage: 3.3V
- Sensor Configuration: 10-DOF: 3-axis accelerometer + 3-axis gyroscope + 3-axis magnetometer + barometric pressure sensor
- Accelerometer Full-Scale Range: ±2 g, ±4 g, ±8 g, ±16 g
- Gyroscope Full-Scale Range (°/s): ±150, ±250, ±500, ±1000, ±2000, ±4000
- Magnetometer Range: ±800 µT range (±8 Gauss)
- Magnetometer resolution: 18 bit
- Accelerometer / Gyroscope Resolution: 16-bit ADC/output
- Barometric Pressure Range: 300–1250 hPa
- Barometric Pressure Accuracy: +-30Pa
- Communication Interface: I2C
- Operating Temperature: −40°C to +85°C

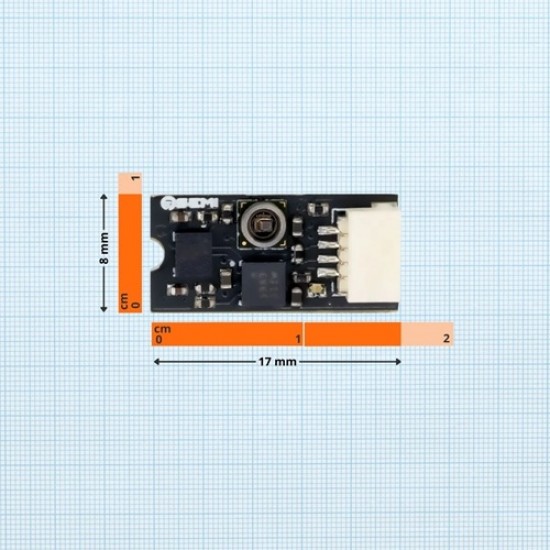

- Dimension: 17mm x 8mm x 4.7mm
Package Includes
- 1x 7Semi 10DOF Accelerometer, Gyroscope, Magnetometer & Pressure Sensor Module ISM330DHCX, MMC5983MA, BMP585
