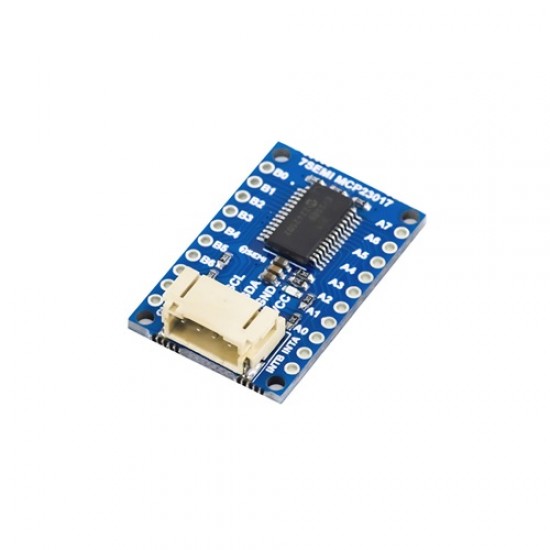

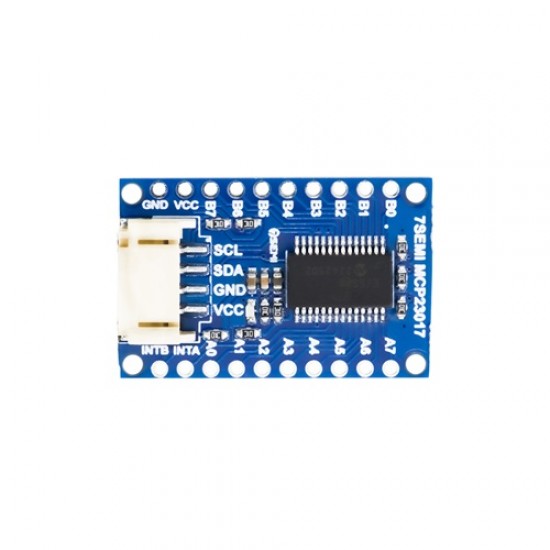

MCP23017 I2C to 16 IO Expander Breakout

The MCP23017 I2C to 16 IO Expander Breakout provides 16 additional I/O pins via an I2C interface, ideal for expanding microcontroller GPIO capabilities without additional complex wiring. It allows for individual configuration of each pin as input or output and includes interrupt support for enhanced functionality. Compact and easy to integrate, this module is suitable for projects requiring multiple digital I/O, such as home automation, robotics, and control systems.

Datasheet

Features

16 I/O Pins: Expands 2 signal pins into 16 fully configurable I/O pins.
Multi-board Expansion: Stack up to 8 boards to achieve up to 128 I/O pins for larger projects.

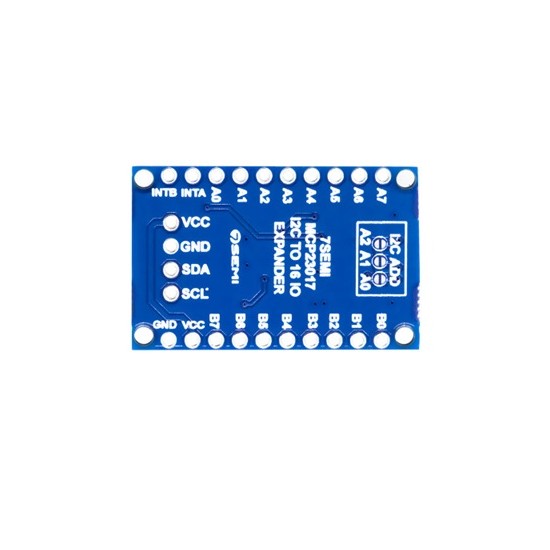

I2C Address Configuration: Customize I2C addresses by adjusting A0, A1, and A2 jumpers.
Dual Connectivity: Offers PH2.0 terminal and solder pad options for easy integration.
Wide Compatibility: Works seamlessly with 3.3V and 5V systems, ensuring flexibility across platforms.
Interrupt Support: Includes INTA and INTB interrupt pins for real-time signal management.
Development Resources: Comes with comprehensive manuals and example projects for Raspberry Pi, Arduino, STM32, and micro
Easy Integration: I2C interface with 4Pin 2.0 mm JST Connector allows simple and flexible connection to any MCU.

Specifications

Interrupt Pins:INTA, INTB
Operating voltage:5V/3.3V
Interface:I2C
Expansion I/Os:16

Package Includes

1x MCP23017 I2C to 16 IO Expander Breakout
