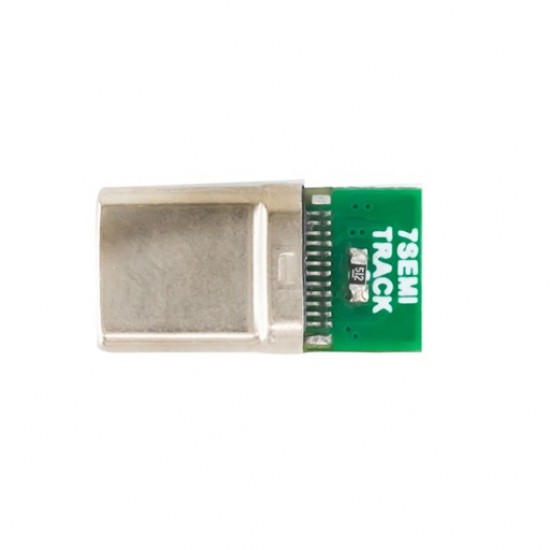

USB-C Male Breakout - 4 Pin PCB USB Type C
This USB-C male breakout simplifies the integration of a vertical USB-C connector into your projects, eliminating the requirement for soldering individual small SMD pads. The straightforward alignment of the USB-C connector provides added convenience for projects lacking mounts.

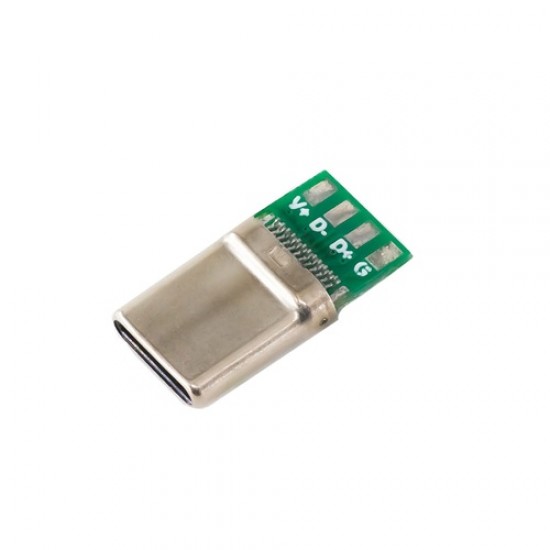

The PCB exposes the V+, GND, D+, and D- pins of the USB-C connector. The utilized connector is of the Straight Plug Type, featuring a Type C male with 24 pins.
- USB Type-C Male breakout board with 4-pin PCB interface
- Easy access to USB power and data lines for prototyping
- Compact PCB design for embedded and DIY electronics projects
- Supports USB 2.0 data communication
- Provides VBUS, GND, D+, and D− connections
- Solder-friendly pads for secure wire attachment
- Ideal for power supply, charging circuits, and custom USB devices
- Compatible with development boards, microcontrollers, and IoT projects
- Durable connector for repeated plug-and-unplug cycles
- Suitable for rapid prototyping and product development
Specifications
- OPERATIONAL TEMPRATURE:-40°C to +70°C
- VOLTAGE REQUIRED (V):5V VIA USB

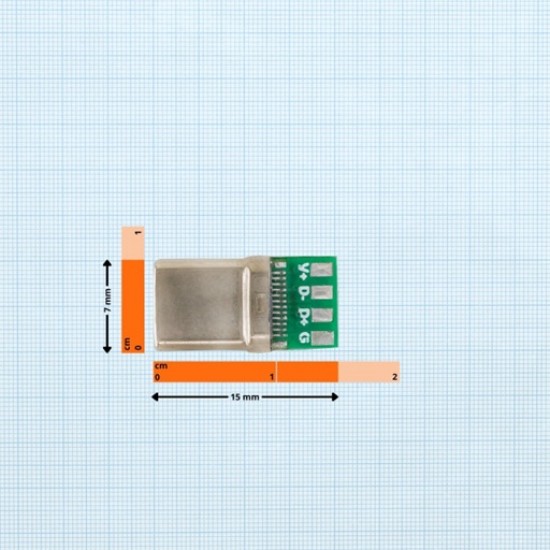

- DIMENSION IN Mm:15mm X 7mm X 1.82mm
Package Includes
- 1x USB-C Male Breakout - 4 Pin PCB USB Type C
