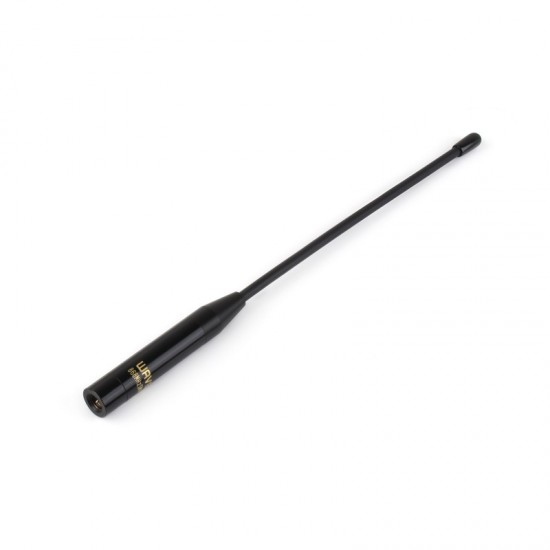

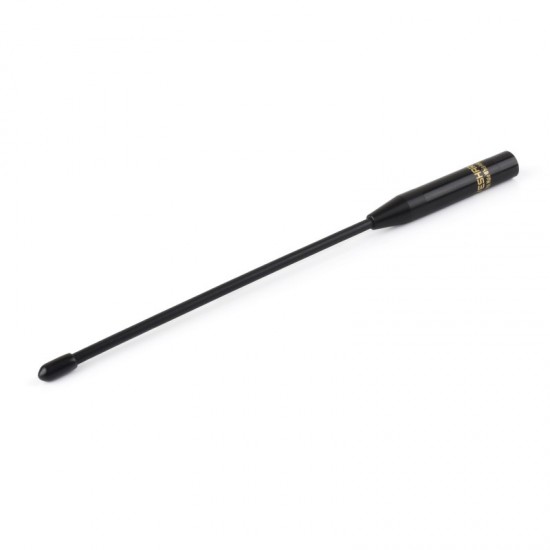

Waveshare 868 MHz LPWA Omnidirectional Flexible Whip Antenna With SMA Male Connector, Low VSWR
This omnidirectional flexible whip antenna features a flexible whip body that withstands moderate bending during routine installation and use, reducing the impact of rigid collisions. Its vertical polarization and 360° horizontal beamwidth make it suitable for fixed wireless nodes and point-to-multipoint terminals that do not require frequent antenna directional adjustments.
Features
- Flexible whip with moderate bend tolerance
- Highly impact-resistant
- Splash-resistant and corrosion-resistant
- All-weather operation
- 360° horizontal coverage
- Good gain performance and low VSWR
Specifications
- Network Support: LPWA
- Gain: 868 MHz: 2.5 dBi
- Operating Frequency Range: 868 MHz: 850–885 MHz

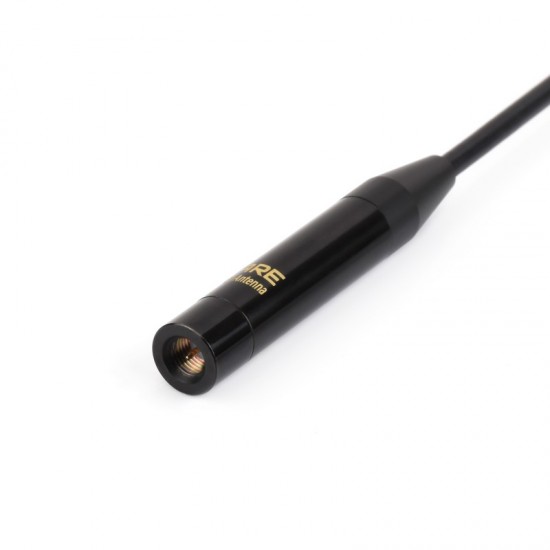

- Connector: SMA male connector
- Output Impedance: 50 Ω
- Maximum Input Power: 10 W
- VSWR: ≤ 2
- Polarization: Vertical
- Antenna Weight: 27 g
- Color: Black
- Operating Temperature: Approx. -40 to 75°C
- Antenna Length: 200 mm
Package Includes
- 868MHz SMA Male Whip Antenna x1
Dimensions
