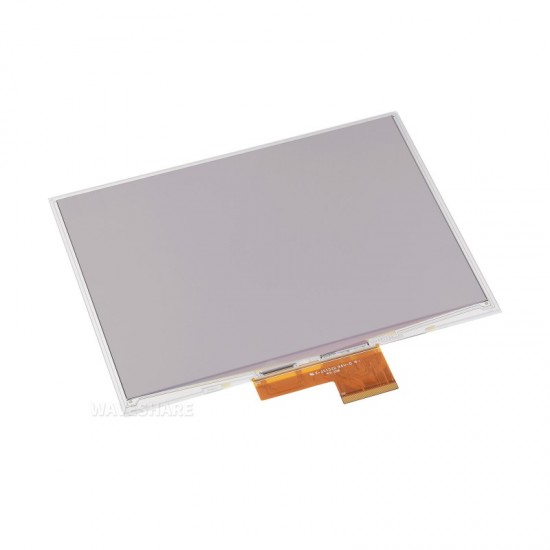

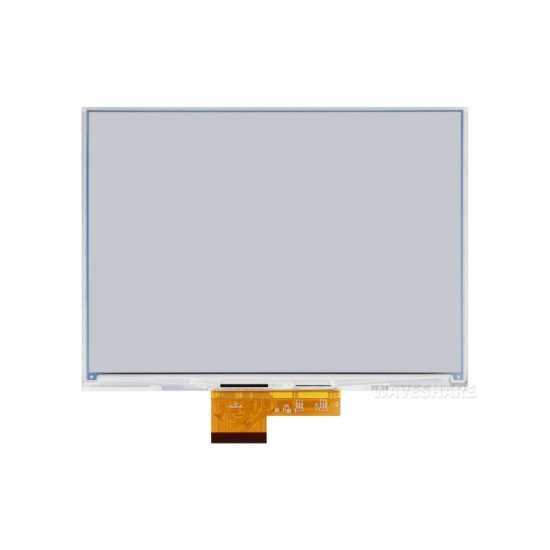

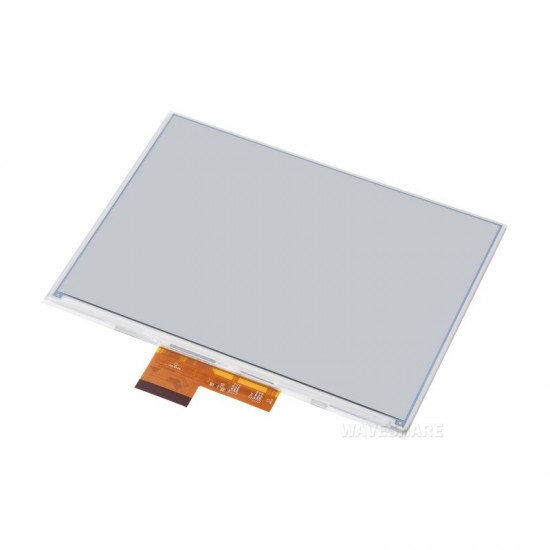

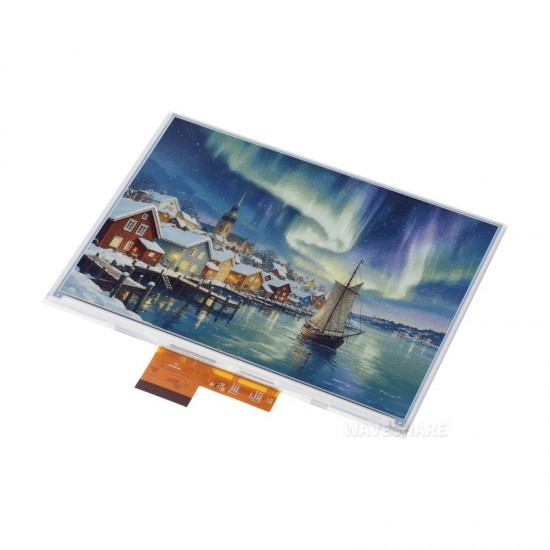

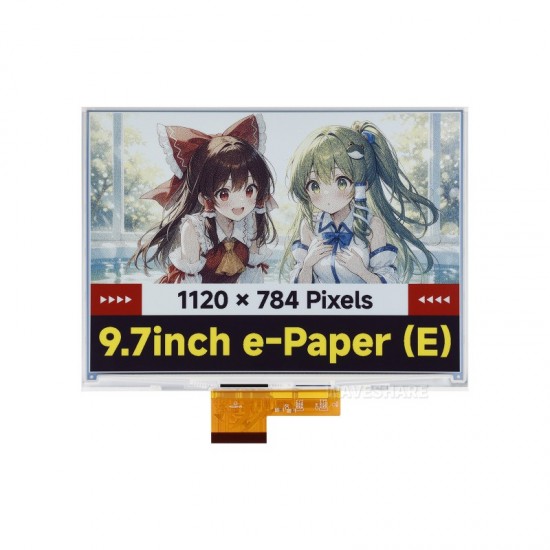

Waveshare 9.7inch E Ink Spectra 6 (E6) Full Color Raw Display, 1120×784 Pixels, SPI Communication Interface [HAT Not Included]

Waveshare 9.7inch E Ink Spectra 6 (E6) Full Color Raw Display, 1120×784 Pixels, SPI Communication Interface [HAT Not Included]

The Waveshare 9.7-inch E Ink Spectra 6 (E6) Full-Color Raw Display is a large-format electrophoretic display designed for applications requiring low power consumption, high readability, and full-color electronic paper output. With a 1120 × 784 pixel resolution and a 9.7-inch viewing area, it provides detailed and paper-like visuals while maintaining excellent readability under ambient light.

Based on E Ink Spectra 6 (E6) technology, the display supports rich multi-color rendering, making it suitable for digital signage, information boards, product labels, price displays, dashboards, and other applications where static or periodically updated color content is required.

The display communicates through an SPI interface, allowing it to be integrated with compatible embedded controllers and development platforms. Its bistable nature allows the displayed image to remain visible even when power is removed, helping reduce energy consumption for static-image applications.

User Manual / Datasheet / Example Codes Etc.

Features

• Adopts E Ink Spectra 6 (E6) technology, featuring high contrast and high color saturation
• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing
• Comes with online development resources and manual (e-Paper driver HAT circuit diagram, examples for Raspberry Pi / Jetson Nano / Arduino / ESP32 / STM32)

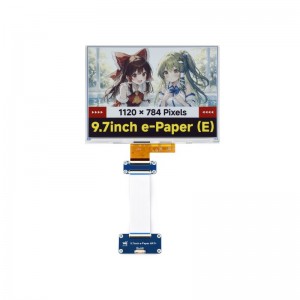

• Optional for e-Paper Driver HAT:
• Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi and Jetson Nano series boards
• Adopts Raspberry Pi HAT+ standard to improve interoperability, helping the users to design and develop faster, easy to use with other peripherals and extend more functions for Raspberry Pi
• Adapting SPI interface for connecting with controller boards like Raspberry Pi / Jetson Nano / Arduino / ESP32 / STM32, etc.
• Onboard voltage translator, compatible with 3.3V / 5V MCUs

Specifications

• operating voltage: Raw display: 3.3V
• interface: 3-wire SPI, 4-wire SPI
• outline dimensions: Raw display: 210.8 × 154.9 × 0.74mm
• display size: 201.60 × 141.12mm
• DOT PITCH: 0.18 × 0.18mm
• RESOLUTION: 1120 × 784 pixels
• display color: E6 full color (E Ink Spectra 6)
• grey scale: 2
• full refresh time: 30s
• total refresh power: <0.6W
• standby current: <0.01uA (almost none)
• viewing angle: >170°

Package includes

• 1x 9.7inch e-Paper (E)

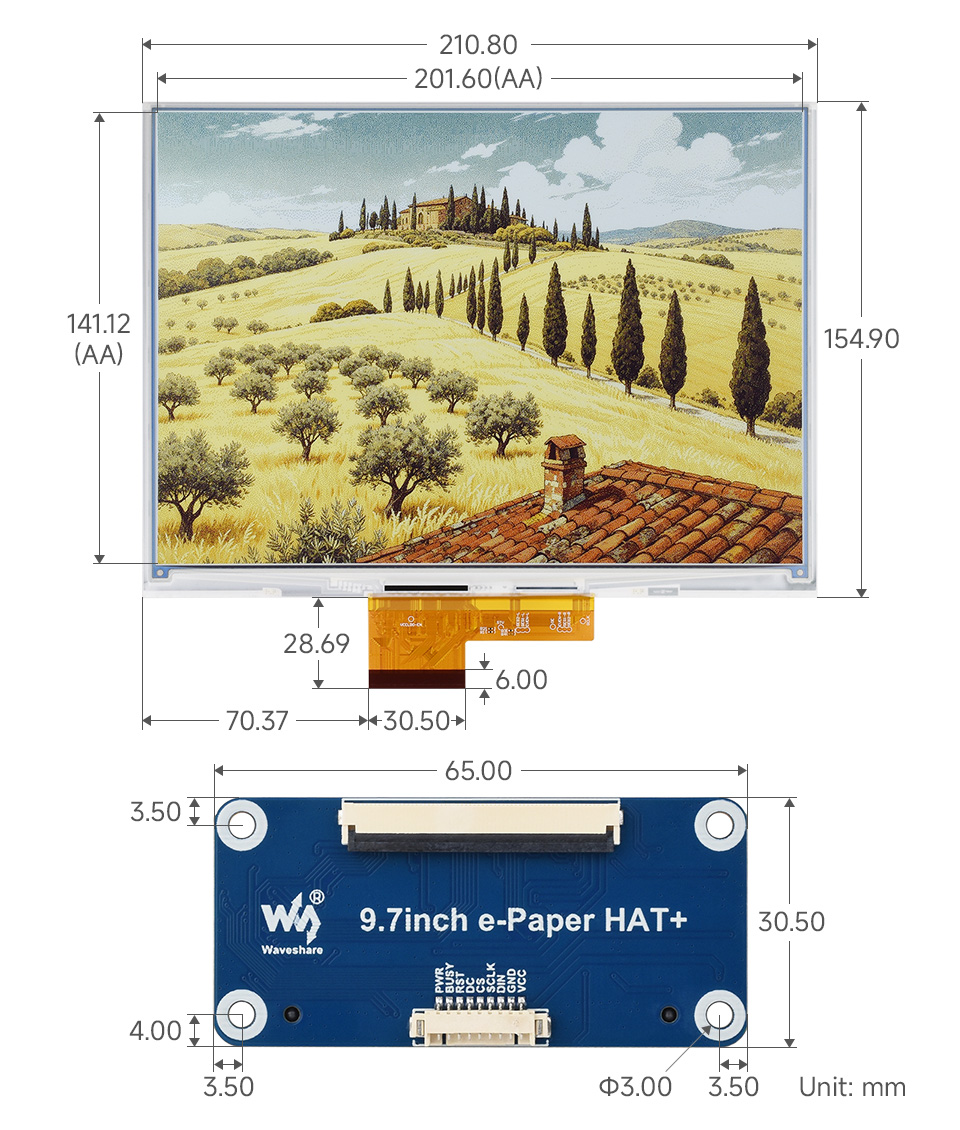

Dimensions
