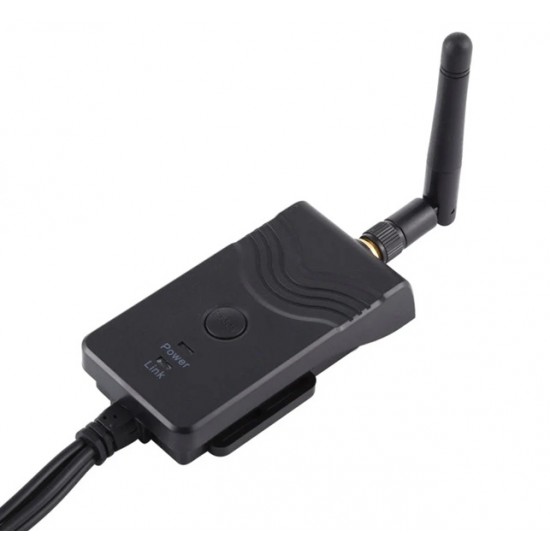

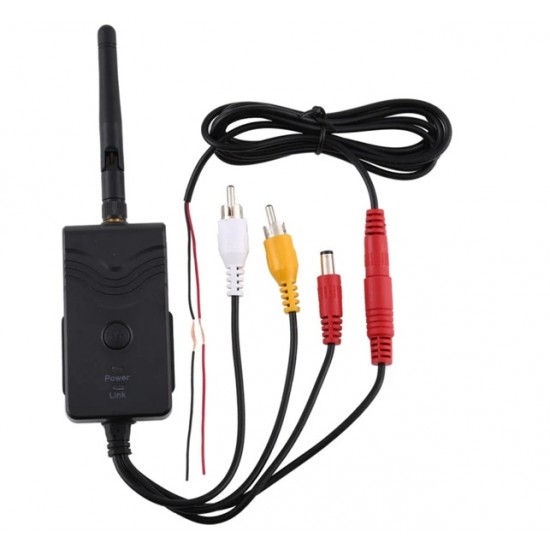

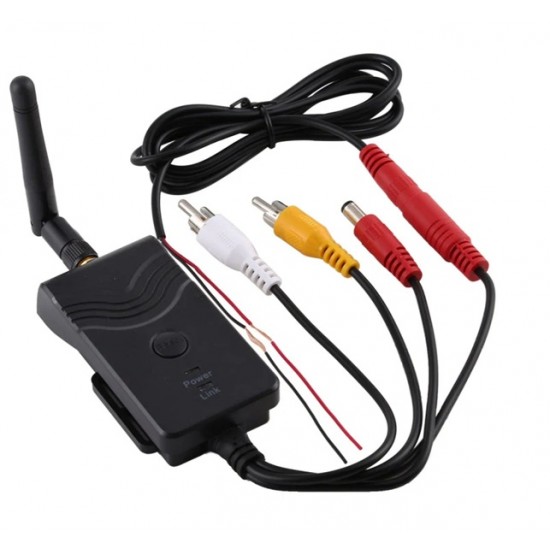

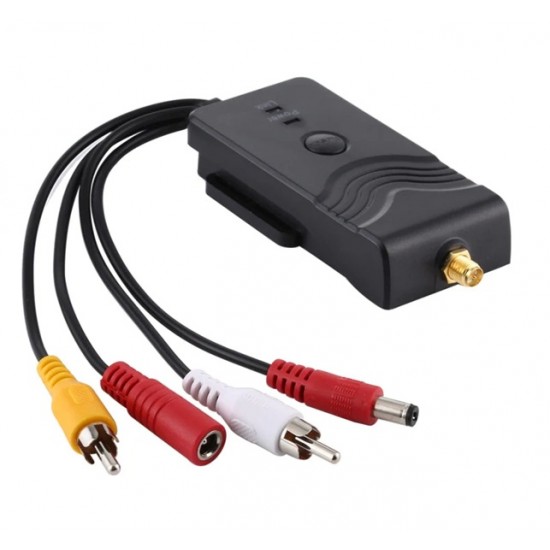

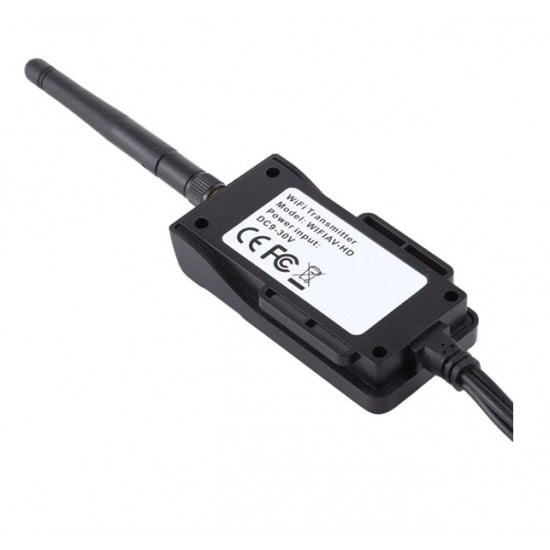

903S AV Pro WiFi HD Video Transmitter for Car - AV Interface - Black Color
The 903S AV Pro WiFi HD Video Transmitter for Car (Black) is a compact and efficient wireless solution designed to transmit high-definition video signals from your car’s AV interface directly to your smartphone or compatible display device. Ideal for rear-view cameras, in-car entertainment systems, and video monitoring applications, this transmitter eliminates the need for complex wiring by using stable WiFi connectivity.
Built for automotive use, the 903S AV Pro ensures reliable performance with low latency video transmission, allowing real-time viewing without noticeable delays. Its compact and durable black housing makes it easy to install and seamlessly integrate into your vehicle’s existing AV system. The device supports a wide range of video input sources and is compatible with various mobile apps for convenient monitoring and control.
Perfect for enhancing vehicle safety and entertainment, the 903S AV Pro WiFi HD Video Transmitter offers a user-friendly setup, stable signal transmission, and high-quality video output, making it a practical upgrade for modern vehicles.
Features
- Simultaneously supports video recording with clearer image quality and no image cutoff. Supports simultaneous viewing on multiple mobile phones, 3D dual-screen display, and mobile phone recording as well as device-side recording (memory card required).
- Users can fully utilize their smart terminals as monitors and recorders during FPV flights, offering simplicity and convenience.
- With an input AV signal from the image transmitter receiver, the relay distance (unobstructed) is greater than 150 meters, allowing for direct use.
- Under AV signal input conditions, no signal or weak signal will result in static, maximizing the protection of your aircraft.
- Wirelessly transmits to Android and iOS mobile phones or tablets via WiFi. WiFi does not interfere with the 2.4G remote controller.
- The APP software is simple and easy to use, supporting display, zoom, recording, screenshots, and playback. It also supports setting hotspot passwords.
- Powered by a 9-30V wide voltage DC power supply, with a power output port for convenient power supply to the image transmitter.
- Supports Android 4.3 or higher and iOS 10.3 or higher.
- Low latency: no more than 150 milliseconds for Android phones and tablets, and approximately 100 milliseconds for iOS phones and tablets.
- Primarily used for rearview cameras, surveillance, FPV, fishing, and other applications. Supports AV/CVBS signals, AHD 720P, and AHD 1080P, essentially supporting signals from all currently available surveillance cameras.
Specification
- Transmission Frequency: 2400MHz-2483.5MHz
- Transmission Distance: Greater than 150 meters
- Video Input Format: CVBS (NTSC/PAL)
- Video Input Amplitude: 1.0Vp-p
- Video Input Impedance: 75 ohms
- Video Frame Rate: 30fps
- Video Format: VGA
- Video Compression: H.264
- Wireless Support: IEEE 802.11b, IEEE 802.11g, IEEE 802.n (1T1R Modes)
- Power Supply: DC 9-30V
- Current: 250mA
- Encryption Mode: WPA2
- Waterproof: Yes
- Weight: 80g +/- 5g
- Dimensions: 78x43x18mm Operating Temperature: -10-50 degrees Celsius
- Package Weight
- One Package Weight: 0.17kgs / 0.38lb
- One Package Size: 13cm * 10cm * 5cm / 5.12inch * 3.94inch * 1.97inch
- Qty per Carton: 120
- Carton Weight: 19.40kgs / 42.77lb
- Carton Size: 52cm * 42cm * 41cm / 20.47inch * 16.54inch * 16.14inch
- Loading Container: 20GP: 297 cartons * 120 pcs = 35640 pcs
40HQ: 691 cartons * 120 pcs = 82920 pcs

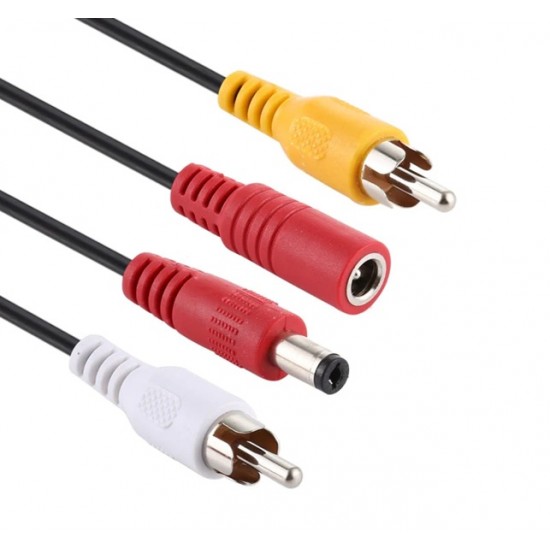

Package Includes
- x 1 Transmitter
- x 1 Signal Stick
- x 1 Power Cord
- x 1 Manual
- x 1 Tape
- x 2 Strap
