LB-LINK BL-M8812EU2 5GHz Single Band Wi-Fi Module - Based on RTL8812EU - IEEE 802.11a/n/ac Standard

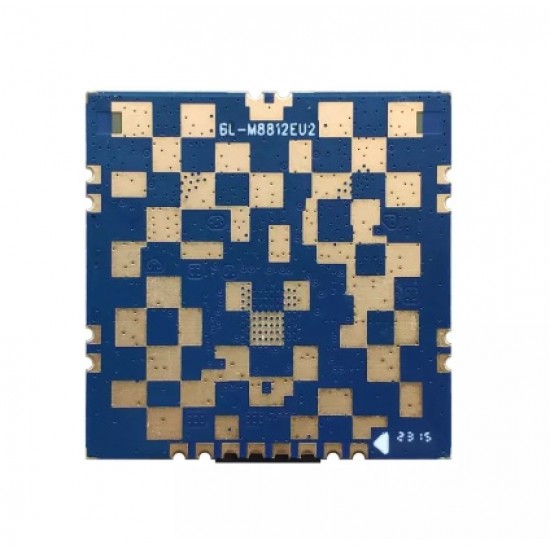

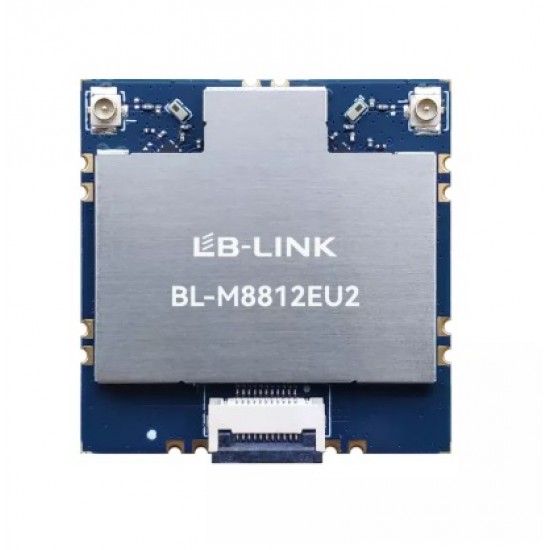

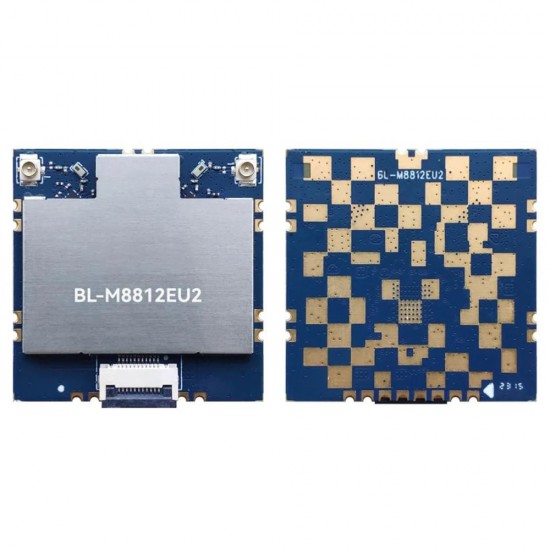

BL-M8812EU2 is a highly integrated 5G single band high-power wireless module base on RTL8812EU, which combines a USB interface, a WLAN MAC, a 2T2R capable Base Band and Radio. It supports IEEE 802.11a/n/ac standard and provides the highest PHY rate up to 867Mbps. The module has built-in high-power FEM and supports 10MHz narrow bandwidth channel, significantly extending the WLAN communication distance, ideal for long-range wireless video transmission applications such as IP camera and UAV.

Datasheet

Features

Operating Frequency: 5.15~5.85GHz
IEEE Standards: IEEE 802.11a/n/ac
Support 2T2R mode with 10/20/40/80MHz bandwidth
WLAN PHY rate can reach up to 867Mbps
Connect to external antennas through IPEX connectors
Host Interface is USB 2.0
Single DC 5V Power Supply

Specifications

Module Name: BL-M8812EU2
Chipset: Realtek RTL8812EU-CG
WLAN Standards: IEEE 802.11a/n/ac
Host Interface: USB 2.0
Antenna: Connect to the external antennas through IPEX connectors
Dimension: 32.0*32.0*3.4mm (L*W*H)
Power Supply: DC 5.0V±0.25V @1800mA (Max)
Operation Temperature: -20℃ to +70℃
Operation Humidity: 10% to 95% RH (Non-Condensing)

The BL-M8812EU2 focuses on:

✓ Long communication distance
✓ High RF output power
✓ Better receiver sensitivity
✓ External antenna flexibility
✓ Industrial-grade applications
✓ Wireless video transmission

This makes it one of the best choices for OEMs designing wireless systems where communication reliability and range are critical.

Applications

Drone & UAV Systems

FPV video transmission

Drone telemetry
Ground station communication

Industrial Wireless Systems

Remote monitoring
Wireless gateways
Smart factory networking

Security & Surveillance

Wireless IP cameras
Outdoor surveillance links
Video backhaul systems

Robotics

AGV communication
Autonomous robots
Industrial automation
